Product Specifications
| Prod Model: |
MHV-2000S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Vickers Hardness Tester |
| Measuring Range: |
HV |
| Standard: |
ASTM |
| Application: |
Metal |
Product Description

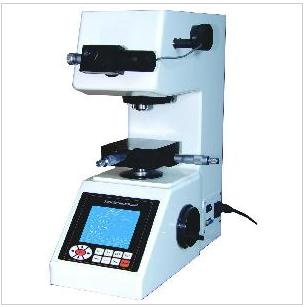

MHV-2000S Digital Micro Hardness Tester
A hi-tech product to merge optics, machinery and electricity into an organic whole. New and beautiful in modeling, and has fine reliability, operability and visibility, being the upgrade and update product of micro hardness tester. Adopt computer software programming, high-power optical measuring system, and photoelectric sensor technique, etc, through soft keys input, it is able to regulate and measure the strength of light source, to select Vickers and Knoop test method, to maintain time, file No. And storage, etc., and to provide the conversion table of various hardness number for reference. The hardness tester can be equipped with camera device, it can take photos of tested indentation and material metallographic composition. The hardness tester is applicable to measure micro hardness of micro & thin specimen, etc., and deter mine micro hardness of fragile materials, such as glass, ceramic, agate, etc.
Specification MHV-2000S
Test Load 0.098N, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80N
Loading mechanism Automatic
Magnification of microscope Measuring: 400 x Observation: 100x
Load holding time 0-60sec
Min. Measuring resolution 0.0625μ M
Max. Height of specimen Appro x 75mm
Distance from Indenter' s center to outer wall 95mmμ M
Weight of tester 31kg
Dimensions of tester L441 x W270 x H480mm
Power supply AC220V/110V ± 10% 50Hz/60Hz
