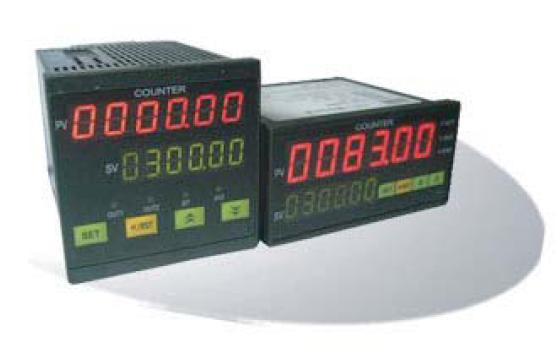

Product Specifications
| Prod Model: |
CRN-R414C; CRN-R627C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Time Counter |
Product Description
1. Features of Digital preset counter:
* Preset counter, soft buttons operation, easily operate
* 4 or 6 LED display
* Counting mode: Counting Up or counting down, counting up and down, selectable by software
* CP1, CP2 input, reset signal input; Input mode: Voltage(PNP), non-voltage input (NPN)
* Reset modes: Manual reset, auto reset (0.1~9.9s), external reset
* Dimensions: 48X48mm, 72X72mm, 48X96mm
* Application: Can be used with photoelectric sensor, proximity switch, and rotary encoder in the fields of machinery, light industrial, packing and packaging, food and beverage.
* Relay and tansistor output; Optional control output: N, F, C, R
* Counter speed: 30Hz/300Hz/1000Hz/5000Hz, selectable by software
* Modulus: 0.00000-99.9999 (6 digit) / 0.0000000-99.999999 (8 digit)
* Power fail holding function, up to 10 years.
|
2. Ordering Code: |
|
Model and Type |
Output |
Preset |
Modulus |
Display |
Size |
|
CRN-R414C |
Relay output |
1 preset |
0.00000~99.9999 |
4 digit |
48× 48mm |
|
CRN-R424C |
Relay output |
2 preset |
0.00000~99.9999 |
4 digit |
48× 48mm |
|
CRN-R617C |
Relay output |
1 preset |
0.00000~99.9999 |
6 digit |
72× 72mm |
|
CRN-R627C |
Relay output |
2 preset |
0.00000~99.9999 |
6 digit |
72× 72mm |
|
CRN-R618C |
Relay output |
1 preset |
0.00000~99.9999 |
6 digit |
48× 96mm |
|
CRN-R628C |
Relay output |
2 preset |
0.00000~99.9999 |
6 digit |
48× 96mm |
|
|
3. Technical Specification |
|
Property project |
Specific parameter |
|
Power supply |
90~250 AC 50/60HZ |
|
Power consumption |
≤ 4VA |
|
Transmitter supply |
12V DC ± 10% max. 50mA |
|
Control output |
Relay: NO., contact capacity: AC 250V /3A orDC 30V /3A Cosφ =1 |
|
Open collector output |
max. DC 30V/100mA |
|
Reset |
Auto reset / manual reset / external switch reset |
|
Input signals |
Contact input, volate input, transducer input |
|
Input signals voltage |
low voltage: 0~2V, high voltage: 4~30V, input resistance: 5KΩ |
|
Counting mode |
Counting Up or counting down, counting up and down |
|
Output mode |
N, F, C, R |
|
Display range |
0~9999 (4 digit) / 0~999999 (6 digit) |
|
Decimal point |
9.999 (4 digit) / 9.99999 (4 digit) |
|
Ambient temperature |
0~50 C |
|
Humidity |
35~85%(RH) |
