Product Specifications
| Prod Model: |
TRN-R414; TRN-R424 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Carry Mode: |
Synchronous Counter |
| Usage: |
Industrial |
| Type: |
Mini |
| Theory: |
Electronic |

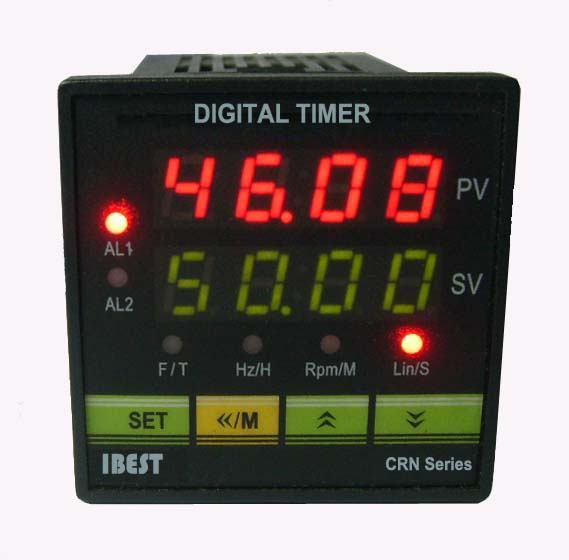

Product Description
Features:
* Preset timer, soft buttons, easily operate.
* 4 digit, dual line, LED display.
* Timer range: up to 0.01s~999999h, selectable.
* Power fail holding function, up to 10 years.
* Control output: relay output and transistor output.
* Reset modes: manual reset, auto reset (0.1~9.9s), external reset.
* Dimensions: 48*48mm; 48*96mm; 72*72mm.
* Various kinds of timer function and output modes, applied to wide industrial ranges.
| 2. Ordering Code: |
| Model and Type | Output | Preset | Display | Size | | Buy | | TRN-R414 | Relay or transistor | 1 preset | 4 digit | 48×48mm | | | | TRN-R424 | Relay or transistor | 2 preset | 4 digit | 48×48mm | | | | |
|
| 3. Technical Specifications: |
| Property project | Specific parameter | | Power supply | 90~250 V AC 50/60HZ | | Power consumption | ≤ 4VA | | Transmitter supply | 12V DC ±10% max.50mA | | Control output | Relay: NO., contact capacity: AC 250V /3A orDC 30V /3A Cosφ=1; | | Reset | Auto reset / manual reset / external switch reset | | Input signals | Contact input, volate input, transducer input | | Voltage | Input signals low voltage: 0~2V, high voltage: 4~30V, input resistance: 5KΩ | | Counting mode | Timer up / timer down | | Output mode | N, F, C, R | | Display range | 0s~9999H / 0s~999999H | | Accuracy | ±0.02% ±0.03s | | Ambient temperature | 0~50 C | | Humidity | 35~85%(RH) |
|
IBEST ELECTRICAL CO. LTD is located in ZhongShan City, Guangdong Province, Southern part of China. It is close to HongKong and Macao as well as the big cities of China- Guangdong, ZhuHai and Shenzhen. The transportation is the most convenient for link the world together.
IBEST has been applying himself to industrial electrical and automation fields, main products are:
* Inductactive Proximity Sensor, proximity switch
* Capacitive Proximity sensor, proximity switch
* Photo electric sensor, photo sensor
* Hall effect sensor
* Analog sensor
* Color mark sensor
* Laser sensor
* Safety light curtain, safety light barriel
* M8 cable connector, M12 cable connector
* Solid state relay, SSR
* Rotary encoder
* Flexbile coupling
* Pressure transmitter, pressure sensor
* Temperature controller
* Digital sensor indicator
* Digital timer, digital Counter
* Digital panel meter
* Frequency meter, tacho meter, linespeed meter
* Power meter, digital coulo meter
IBEST services are:
1-Support distributors promoting IBEST products in their local areas. Up till now we have distributors in both domestic and overseas market such as Middle east, Asia, Latin America and European countries.
2-Customized brand: we produce customerized brands. It's known overseas production cost are quite high while China are lower, we help them low down cost. By this way, the cooperators not only save cost, but also don't lose their good reputation in the market because of high quality of our products.
Dear clients, either you are dealing in or manufacture the similar lines, you are welcome to contact us at any time, we are ready to offer you the best solutions and make progress with you together!
Thank you very much.
