Product Specifications
| Prod Model: |
CPS(I)-18POC10B; CPS(I)-18NOC10B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
Digital Sensor |
Product Description

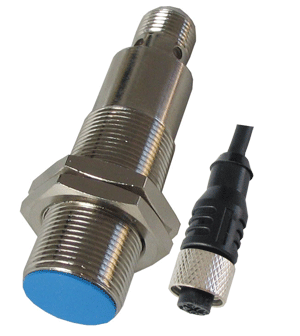

Features of M18 Capacitive Proximity Sensor:
-M18 capacitive sensor, style: cylinder 18mm, lenth 60mm.
-Standard sensing object: metal or non-metal objets.
-Shielded/flush: 5mm; unshielded/non-flush: 8~10mm.
Extended range can be made.
-DC 3wire or 4 wires (10-30V DC), PNP or NPN, NO or NC or NO+NC.
-Connection mode: cable=2M or with M12 connector and cable.
-With LED operation indicate lamp, easily identifiable.
-Brass chrome plated, proof of oil, water acid, alkaline.
- Protection rate: IP67, water resistant.
-CE approved.
-Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc
- Reliable quality to replace famous brands, such as: Omron, Sick, Bafflus...etc.
Welcome to contact us!
| 2. Ordering Code: |
| Model and Type | Output type | Mounting distance | Current output | Power supply | Connector model | Buy | | CPS-18NO10B | NPN NO | 1-10mm | ≤200mA | DC 10-30V | 3 Wire | | | CPS-18NC10B | NPN NC | 1-10mm | ≤200mA | DC 10-30V | 3 Wire | | | CPS-18PO10B | PNP NO | 1-10mm | ≤200mA | DC 10-30V | 3 Wire | | | CPS-18PC10B | PNP NC | 1-10mm | ≤200mA | DC 10-30V | 3 Wire | | | CPS-18DO10B | DC 2 Wire NO | 1-10mm | ≤200mA | DC 10-30V | 2 Wire | | | CPS-18DC10B | DC 2 Wire NC | 1-10mm | ≤200mA | DC 10-30V | 2 Wire | | | CPS-18AO10B | AC 2 Wire NO | 1-10mm | ≤300mA | AC 90-250V | 2 Wire | | | CPS-18AC10B | AC 2 Wire NC | 1-10mm | ≤300mA | AC 90-250V | 2 Wire | | | |
|
| 3. Technical Specifications: |
| Property project | Specific parameter | | Mounting distance | 10mm | | Sensing distance | 0-10mm | | Power supply | DC 10-30V / AC 90-250V | | Frequency | ≤50Hz | | Current output | DC:≤200mA / AC: ≤300mA | | Ambient temperture | -20-70 C | | Protection | DC:Over-current&polarity or no(please indicate when order) / AC:no | | IP rating | IP67 |
|
