Product Specifications
| Prod Model: |
IPS-S40 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
Pulse Output, Npn or Pnp |
| Usage: |
Applied in Measuring, Counting, Rpm Measuring. etc |
| Theory: |
Magnetic Sensor |
Product Description
Features:

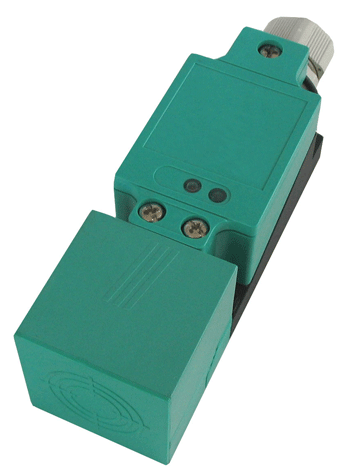

-Inductive proximity sensor, style: 40*40*120mm
-DC 3-wire(10-30V DC), DC 4-wire(10-30V DC), AC 2-wire (90-250 AC) type
-Connection mode: 3 wires or 4 wires
-Mounting distance: 25mm
-With LED operation indicate lamp, easily identifiable
-Standard sensing object: Iferrous metals;
-Material: ABS
-Protection rate: IP65
-Over-current protection and short circuit protection; Againest polarity reverse
-Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc.
| Model and Type | Output type | Mounting distance | Detect distance | Current output | Power supply | Buy |
| IPS-S40NO25B | NPN, NO | 25mm | 23mm | ≤200mA | DC 10-30V | |
| IPS-S40NC25B | NPN, NC | 25mm | 23mm | ≤200mA | DC 10-30V | |
| IPS-S40NOC25B | NPN NO+NC | 25mm | 23mm | ≤200mA | DC 10-30V | |
| IPS-S40PO25B | PNP NO | 25mm | 23mm | ≤200mA | DC 10-30V | |
| IPS-S40PC25B | PNP NC | 25mm | 23mm | ≤200mA | DC 10-30V | |
| IPS-S40POC25B | NPN NO+NC | 25mm | 23mm | ≤200mA | DC 10-30V | |
| IPS-S40AO25C | AC 2 wires, NO | 25mm | 23mm | ≤400mA | AC 90-250V | |
| IPS-S40AC25C | AC 2 wires, NC | 25mm | 23mm | ≤400mA | AC 90-250V | |
