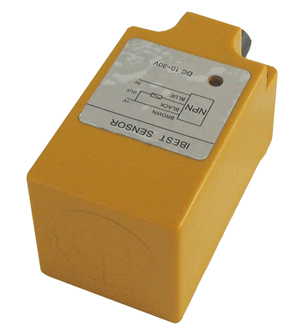

Product Specifications
| Prod Model: |
IPS-S30 |
| Markets: |
North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Output: |
Pulse Output, Npn or Pnp |
| Usage: |
Applied in Measuring, Counting, Rpm Measuring. etc |
| Theory: |
Magnetic Sensor |
Product Description
Features:
-Dim: 30*30*53mm, rectangular.
-DC 2-wire (10-30V DC), DC 3-wire(10-30V DC), DC 4-wire(10-30V DC), AC 2-wire (90-250 AC) type
-Mounting distance: 15mm
-With LED operation indicate lamp, easily identifiable
-Standard sensing object: Iferrous metals;
-Protection rate: IP67, water resistant
-Over-current and short circuit protection; Against polarity reversal.
-Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc.
| Model and Type | Output type | Mounting distance | Detect distance | Current output | Power supply | Buy |
| IPS-S30PO15B | PNP NO | 15mm | 0...13.5mm | ≤200mA | DC 10-30V (3 Wire) | |
| IPS-S30PC15B | PNP NC | 15mm | 0...13.5mm | ≤200mA | DC 10-30V (3 Wire) | |
| IPS-S30POC15B | PNP NO+NC | 15mm | 0...13.5mm | ≤200mA | DC 10-30V(4 Wire) | |
| IPS-S30NO15B | NPN NO | 15mm | 0...13.5mm | ≤200mA | DC 10-30V (3 Wire) | |
| IPS-S30NC15B | NPN NC | 15mm | 0...13.5mm | ≤200mA | DC 10-30V (3 Wire) | |
| IPS-S30NOC15B | NPN NO+NC | 15mm | 0...13.5mm | ≤200mA | DC 10-30V(4 Wire) | |
| IPS-S30DO15B | DC 2 wire NO | 15mm | 0...13.5mm | ≤200mA | DC 10-30V (2 Wire) | |
| IPS-S30DC15B | DC 2 wire NC | 15mm | 0...13.5mm | ≤200mA | DC 10-30V(2 wire) | |
| IPS-S30AO15C | AC 2 wire NO | 15mm | 0...13.5mm | ≤300mA | AC 90-250V(2 wire) | |
| IPS-S30AC15C | AC 2 wire NC | 15mm | 0...13.5mm | ≤300mA | AC 90-250V(2 wire) | |
