Product Specifications
| Prod Model: |
PES-DC41POC10D; PES-DC41NOC10D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

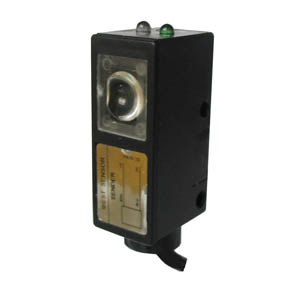

Features Of C41 Photo Sensor (Through Beam, Diffused IBEST):
-Through-beam, detect distance: 2m; Diffusec-reflective, detect distance: 10cm.
-DC 3 wire or 4 wire.
-PNP or NPN; NO or NC or NO+NC
-Light resource: Infrared LED
-Strong anti-shock and anti-vibration.
-Non-contact object detect: Avoid the photoelectric sensor to contact the object directly, protect the inducing component from damage and extend the operation life of the sensor.
-Detect any objects with different materials: Detect objects by the light quantities reflected and received, detect objects such as glass, metal, plastic, wood, fluid...etc.
-Fast response: Max. 3ms
-Identify object colors: According to the colors' reflectivity and absorptivity, the sensors detect the light that the object reflected and identify the colors.
-High precision: Precise electron circuit, can detect tiny objects with accurate position.
| 2. Ordering Code: |
| Model and Type | Detecing type | Out type | Detecting distance range | Current output | Power supply | Buy | | PES-TC41NO2MD | Through-beam | NPN NO | 2m | ≤200mA | DC 10-30V | | | PES-TC41NC2MD | Through-beam | NPN NC | 2m | ≤200mA | DC 10-30V | | | PES-TC41PO2MD | Through-beam | PNP NO | 2m | ≤200mA | DC 10-30V | | | PES-TC41PC2MD | Through-beam | PNP NC | 2m | ≤200mA | DC 10-30V | | | PES-DC41NO10D | Diffused-reflective | NPN NO | 10cm | ≤200mA | DC 10-30V | | | PES-DC41NC10D | Diffused-reflective | NPN NC | 10cm | ≤200mA | DC 10-30V | | | PES-DC41PO10D | Diffused-reflective | PNP NO | 10cm | ≤200mA | DC 10-30V | | | PES-DC41PC10D | Diffused-reflective | PNP NC | 10cm | ≤200mA | DC 10-30V | | | |
|
| 3. Technical Specifications: |
| Property project | Specific parameter | | Detecting distance range | Through-beam:2m / Diffusec-reflective:10cm | | Rated power supply | DC:10-30V / AC:90-250V | | Current | DC 3 or 4 wire: ≤200mA | | Resonse time | Through-beam:<5ms / Diffused-reflective:<3ms | | Working angle | Through-beam:3°-20°/Retro-reflective:1°-5° | | Voltage for transistor | <1.5V | | Current consumption | <20mA | | Different distance | <15% | | Polarity reverse protection | Yes | | Ambient light(LUX) | Incandescent lamp:≤3000 / Sunlight:≤10000 | | IP ratings | IP 65 | | Material | ABS |
|
IBEST ELECTRICAL CO. LTD is located in ZhongShan City, Guangdong Province, Southern part of China. It is close to HongKong and Macao as well as the big cities of China- Guangdong, ZhuHai and Shenzhen. The transportation is the most convenient for link the world together.
IBEST has been applying himself to industrial electrical and automation fields, main products are:
* Inductactive Proximity Sensor, proximity switch
* Capacitive Proximity sensor, proximity switch
* Photo electric sensor, photo sensor
* Hall effect sensor
* Analog sensor
* Color mark sensor
* Laser sensor
* Safety light curtain, safety light barriel
* M8 cable connector, M12 cable connector
* Solid state relay, SSR
* Rotary encoder
* Flexbile coupling
* Pressure transmitter, pressure sensor
* Temperature controller
* Digital sensor indicator
* Digital timer, digital Counter
* Digital panel meter
* Frequency meter, tacho meter, linespeed meter
* Power meter, digital coulo meter
IBEST services are:
1-Support distributors promoting IBEST products in their local areas. Up till now we have distributors in both domestic and overseas market such as Middle east, Asia, Latin America and European countries.
2-Customized brand: we produce customerized brands. It's known overseas production cost are quite high while China are lower, we help them low down cost. By this way, the cooperators not only save cost, but also don't lose their good reputation in the market because of high quality of our products.
Dear clients, either you are dealing in or manufacture the similar lines, you are welcome to contact us at any time, we are ready to offer you the best solutions and make progress with you together!
Thank you very much.
