Product Specifications
| Prod Model: |
C12-I-F-4A-P; C12-I-M-4A-P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Low Frequency Circular Connector |
| Gender: |
Female |
| Application: |
Power |
Product Description

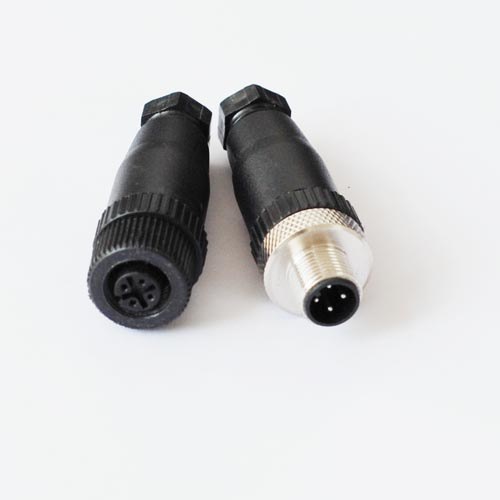

* M12 cable connectors; straight connector or 90 degree angle connector.
* Male or female are available.
* 3 or 4 or 5 or 8 pins are optional.
* With LED indicator or without LED indicator, at buyer's option
* Standard cable section: 3 wires or 4 wires or 5 or 8 wires. (3/4/5 pin outside diameter: 4.8mm; core: 12 * 0.32mm; 8 pin outside D=5.8mm; core: 12*0.25mm)
* Standard cable length: PVC cable=2M
* Cable length is at buyer's option
* IP67, Water and oil resistant
Welcome to contact us!
| Model and Type | No. of wire | Connector type | Connector angle | LED indicator | | Buy |
| C12-I-F-4A-P | 4 poles | Female connector | Straight connector | No LED Indicator | | |
| C12-I-F-5A-P | 5 poles | Female connector | Straight connector | With LED Indicator | | |
| C12-I-M-4A-P | 4 pin | Female connector | Straight connector | No LED Indicator | | |
| C12-I-M-5A-P | 5 pin | Female connector | Straight connector | With LED Indicator | | |
| Model and Type | No. of wire | Connector type | Connector angle | LED indicator | | Buy |
| C12-L-F-4A-P | 4 poles | Female connector | 90 degree | No LED Indicator | | |
| C12-L-F-5A-P | 5 poles | Female connector | 90 degree | With LED Indicator | | |
| C12-L-M-4A-P | 4 pin | Female connector | 90 degree | No LED Indicator | | |
| C12-L-M-5A-P | 5 pin | Female connector | 90 degree | With LED Indicator | | |
