Product Specifications
| Prod Model: |
SSR-15A SSR-100A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Approval: |
CE Mc |
Product Description

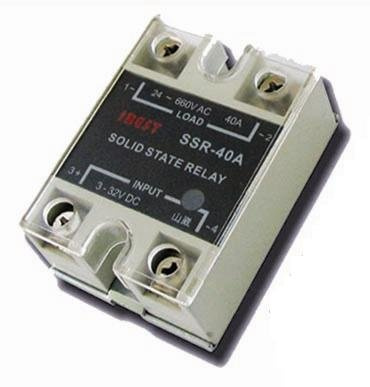

Features of IBEST Solid State Relay (single phase):
- Load current range: 2A, 15A, 25A, 40A, 50A, 80A, 100A. )
- Load voltage range: AC 24~660V AC; Control current: 6mA~25mA.
- Control voltage: DC 3~32V or AC 90~250V
- Input constant current control, AC Zero point On and OFF function
- Adop technic of glass passivation triac square piece(>50A), good in dispersing heat.
- Optic isolated (>or=2000V AC 1min ), dual triac strong output or single triac reversal parallel connection strong output.
- Input or output LED indication.
- Widely used in various automatic fields like chemical fibre machinery, temperature controller, electric cooker, rubber machinery, fountain control, numerical control machinery etc.
- Reliable quality to replace famous brands, such as: Omron, Crydom...etc.
|
2. Ordering Code: |
|
Model and Type |
Load Current |
Load Voltage |
Control Voltage |
Appearance |
|
Buy |
|
SSR-2A |
AC 2A |
AC 24~660V |
DC3~32V |
Normal |
|
|
|
SSR-15A |
AC 15A |
AC 24~660V |
DC 3~32V |
Normal |
|
|
|
SSR-25A |
AC 25A |
AC 24~660V |
DC 3~32V |
Normal |
|
|
|
SSR-40A |
AC 40A |
AC 24~660V |
DC 3~32V |
Normal |
|
|
|
SSR-50A |
AC 50A |
AC 24~660V |
DC 3~32V |
Normal |
|
|
|
SSR-80A |
AC 80A |
AC 24~660V |
DC 3~32V |
Normal |
|
|
|
SSR-100A |
AC 100A |
AC 24~660V |
DC 3~32V |
Normal |
|
|
|
|
|
|
3. Technical Specifications: |
|
Property project |
Specific parameter |
|
Max. Load Current |
AC 15A, 25A, 40A, 50A, 80A, 100A |
|
Load Voltage |
AC 24~660V |
|
Isolated Voltage |
≥ 2000V AC 1 min. |
|
Insulation Voltae |
≥ 2000V AC 1 min. |
|
Control Voltage |
DC 3~32V |
|
Control Current |
6mA~25mA |
|
Turn-On Voltage |
≤ 1.3V |
|
Off-set leakage |
≤ 1.3mA |
|
Off state dv/dt |
300v/us |
|
On - Off Time |
100ms |
|
Frequency Range |
47/63 Hz |
|
Status Indicator |
Red LED |
|
Ambient Temperature |
-40~80 C |
|
Net Weight |
200g |
|
IBEST ELECTRICAL CO. LTD is located in ZhongShan City, Guangdong Province, Southern part of China. It is close to HongKong and Macao as well as the big cities of China- Guangdong, ZhuHai and Shenzhen. The transportation is the most convenient for link the world together.
IBEST has been applying himself to industrial electrical and automation fields, main products are:
* Inductactive Proximity Sensor, proximity switch
* Capacitive Proximity sensor, proximity switch
* Photo electric sensor, photo sensor
* Hall effect sensor
* Analog sensor
* Color mark sensor
* Laser sensor
* Safety light curtain, safety light barriel
* M8 cable connector, M12 cable connector
* Solid state relay, SSR
* Rotary encoder
* Flexbile coupling
* Pressure transmitter, pressure sensor
* Temperature controller
* Digital sensor indicator
* Digital timer, digital Counter
* Digital panel meter
* Frequency meter, tacho meter, linespeed meter
* Power meter, digital coulo meter
