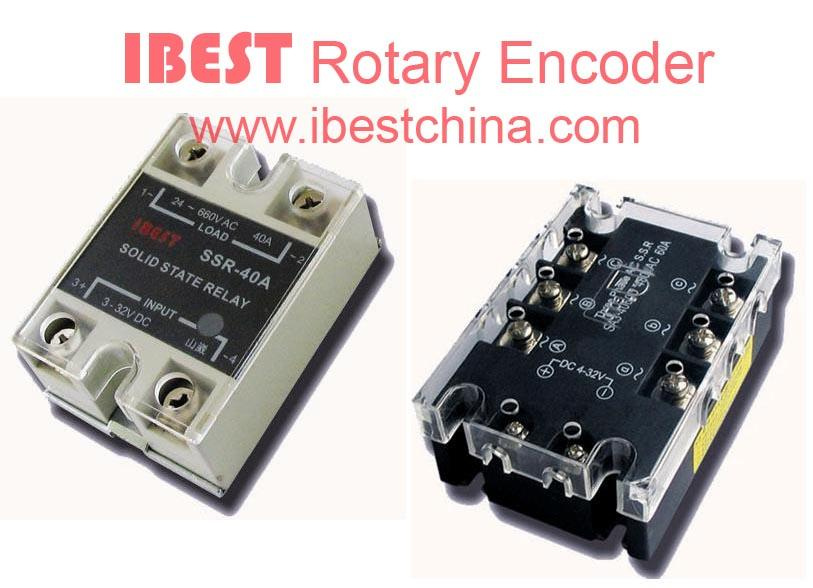

Features of IBEST Single Solid State Relay:
- Load current range: AC 40A ( Other range: 5A, 15A, 25A, 40A, 50A, 60A, 80A, 100A. )
- Load voltage range: AC 24~660V AC.
- Control voltage: DC 3~32V; Control current: 6mA~25mA.
- Input constant current control, AC Zero point On and OFF function
- Adop technic of glass passivation triac square piece(>50A), good in dispersing heat.
- Optic isolated (≥ 2000V AC 1min ), dual triac strong output or single triac reversal parallel connection strong output.
- Input or output LED indication.
- Widely used in various automatic fields like chemical fibre machinery, temperature controller, electric cooker, rubber machinery, fountain control, numerical control machinery etc.
- Reliable quality to replace famous brands, such as: Omron, Crydom...etc.
Welcome to contact us!
| 2. Ordering Code: |
| Model and Type | Load Current | Load Voltage | Control Voltage | Appearance | | Buy | | SSR-15A | AC 15A | AC 24~660V | DC 3~32V | Normal | | | | SSR-25A | AC 25A | AC 24~660V | DC 3~32V | Normal | | | | SSR-40A | AC 40A | AC 24~660V | DC 3~32V | Normal | | | | SSR-50A | AC 50A | AC 24~660V | DC 3~32V | Normal | | | | SSR-60A | AC 60A | AC 24~660V | DC 3~32V | Normal | | | | SSR-80A | AC 80A | AC 24~660V | DC 3~32V | Normal | | | | SSR-100A | AC 100A | AC 24~660V | DC 3~32V | Normal | | | | |
|
| 3. Technical Specifications: |
| Property project | Specific parameter | | Max. Load Current | AC 15A, 25A, 40A, 50A, 80A, 100A | | Load Voltage | AC 24~660V | | Isolated Voltage | ≥ 2000V AC 1 min. | | Insulation Voltae | ≥ 2000V AC 1 min. | | Control Voltage | DC 3~32V | | Control Current | 6mA~25mA | | Turn-On Voltage | ≤ 1.3V | | Off-set leakage | ≤ 1.3mA | | Off state dv/dt | 300v/us | | On - Off Time | 100ms | | Frequency Range | 47/63 Hz | | Status Indicator | Red LED | | Ambient Temperature | -40~80 C | | Net Weight | 200g |
|
