Product Specifications
| Prod Model: |
HVS-1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Digital Display Micro Hardness Tester |
| Type: |
Vickers Hardness Tester |
| Measuring Range: |
HV |
| Application: |
Metal |
| Standard: |
ASTM |
Product Description

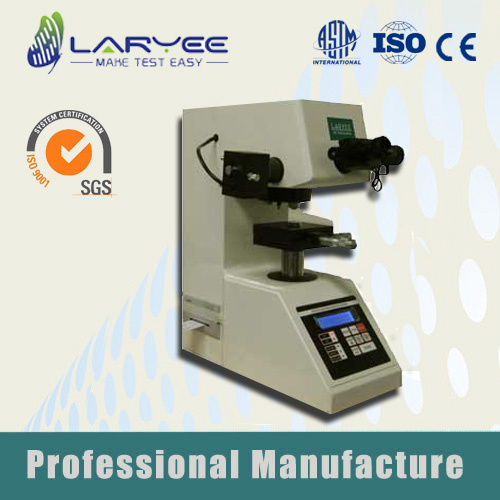

Digital Micro Hardness Tester with following Specification
Test load: 0.098N (10gf), 0.246N (25gf), 0.49N (50gf), 0.98N (100gf), 1.96N (200gf), 2.94N (300gf), 4.90N (500gf), 9.80N (1000gf)
Leus/indenter switch: With hand Turret
Carriage control: Automatic loading and unloading method
Magnification of microscope: For measurement: 400X (Object lens 40x, eyepiece 10x)
For observation: 200X (object lens 20x, eyepiece 10x)
Load holding time: 5-60 second
Measuring microscope: Min measuring unit: 0.0625um
Testing field: 1-2967HV
Micro test table: Dimensions 100x100mm
Movement: 25mm in X&Y axis
Max. Height of specimen: 70mm; Max. Depth of specimen: 95mm
Power Supply: AC110V/220V 60/50Hz
Dimensions: (L ) 425 X (W) 245X (H)490mm;
Gross Weight: 42KG,
Net Weight: 35KG
Laryee Technology is a top leading Chinese testing equipment and instrument product manufacture and solution system integration supplier.Our Headquater is located in Beijing, China.And also we have two factories which invested by LARYEE base both in Beijing and Jinan, Shandong provice.According to all kinds of testing requirement of GB, ISO, ASTM, BS EN and etc, our international technician and business team can offer our different field customer best testing solutions and general or special equipments.
Laryee's nice new products, superior technology, excellent quality and well service have won the customers all over the world.Nowadays, Laryee has the good relationship with many customers such as Southeast Asia, Middle East, Latin America, Africa, European and so on.
