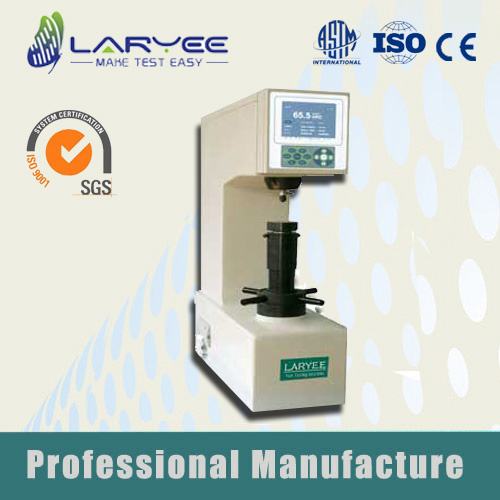

Digital Display Rockwell Hardness Tester

Name: Digital Display Rockwell Hardness Tester
Brand: china-manufacturer-directory.com
SKU: 683324032
Availability: InStock
Rating: 5 (110 reviews)

Supplier:	Laryee Technology Co., Ltd.
Price:	US $ 4300-5300/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	HRS-150/HRMS-45
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function:	Digital Display Rockwell Hardness Tester
Preliminary Test Force:	29.4n (3kgf),98n (10kgf)
Total Test Force:	147n(15kgf) 294n(30kgf) 441n(45kgf),588n(60kgf) 98
Hardness Indication:	Dgital
Total Test Force Dwell Time:	1-30s,2-60s
Max Height Of Specimens:	175mm
Type:	Rockwell Hardness Tester
Measuring Range:	HRA
Application:	Metal
Standard:	ASTM

Product Description

Introduction:
Rockwell hardness test is a simple instrument to test the hardness value of hard metals, carburized steels, quenched steels, hard cast irons, mild steels, Al-alloys, Cu-alloys and malleable irons according to Rockwell Principle according to ISO 6508 and ASTM E18. It measures the depth difference between the primary and testing load and convert the depth difference to the hardness value. These machines can be operated semi-automatically. They are essential testing instruments for quality testing section, university and college, research institution and industrial laboratory.

Features:

HRMS-45 is superficial Rockwell test scales N & T (15/30/45kgf) with digital indicator and motor control loading. Hardness value convert to HRA, HRB, HRC, HV, HB.

HRS-150 is Rockwell test with scales A-B-C (60/100/150kgf ) with digital indicator and motor control loading. Hardness value convert to HV, HB.

Specification:

Model	HR-150A	HR-150DT	HRS-150	XHR-150
Preliminary test force	98N (10Kgf)	98N (10Kgf)	98N (10Kgf)	98N (10 kgf)
Total test force	588N(60Kgf) 980N(100Kgf) 1470N(150Kgf)	588N(60Kgf) 980N(100Kgf) 1470N(150Kgf)	588N(60Kgf) 980N(100Kgf) 1470N(150Kgf)	588.4N(60kgf) 980.7N(100kgf ) 1471N (150kgf)
Total test force dwell time	1-30S	2-60S	2-60S	2-60S
Hardness indication	Dial	Dial	Dgital	Dial
Max height of specimens	170 mm	175 mm	175mm	175mm
Max width of specimens	165mm	165 mm	165mm	165mm
Dimension(DxWxH)(mm)	460×240×660	520×215×700	520×215×700	520×215×700
Net weight	75Kg	80Kg	80Kg	80kg
Power supply	No need	AC220V 50/60HZ		AC220V 50/60HZ
Standard Accessories	Diamond Rockwell indenter (1), Ø1.5875mm hardness ball indenter(1), Standard Rockwell hardness block (3),			Steel Ball Indenter(Ø3.175 Ø6.35,Ø12.7mm) Ball indenter (each 1) Rockwell Hardness Block( HRE,HRL,HRM,HRR) (4)
Standard Accessories	Testing table (big, medium, "V") (total 3), Weight block(A, B, C), Lever

HRS-150/HRMS-45
