| Supplier: | Starmeter Instruments Co., Ltd. |
|---|---|
| Price: | US $ 120/Piece |
| Min Order: | 90/Piece |
| Quantity:: | |
| Trade Terms: | FOB |
|
|
| Prod Model: | CM8806FN |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Range: | 0-1250um;0-50mil (Max to 2000um/80mil) |
| Is Customized: | Yes |
| Sensor Type: | Fe & Nfe 2 in 1 |
| Single/Continue Measurement: | Can Selectable |
| Data Memory: | 99 |
| Metric/Imperial Switchable: | Yes |
| Accuracy: | +/-(3%+2um)/ +/-(3%+0.1mils) |

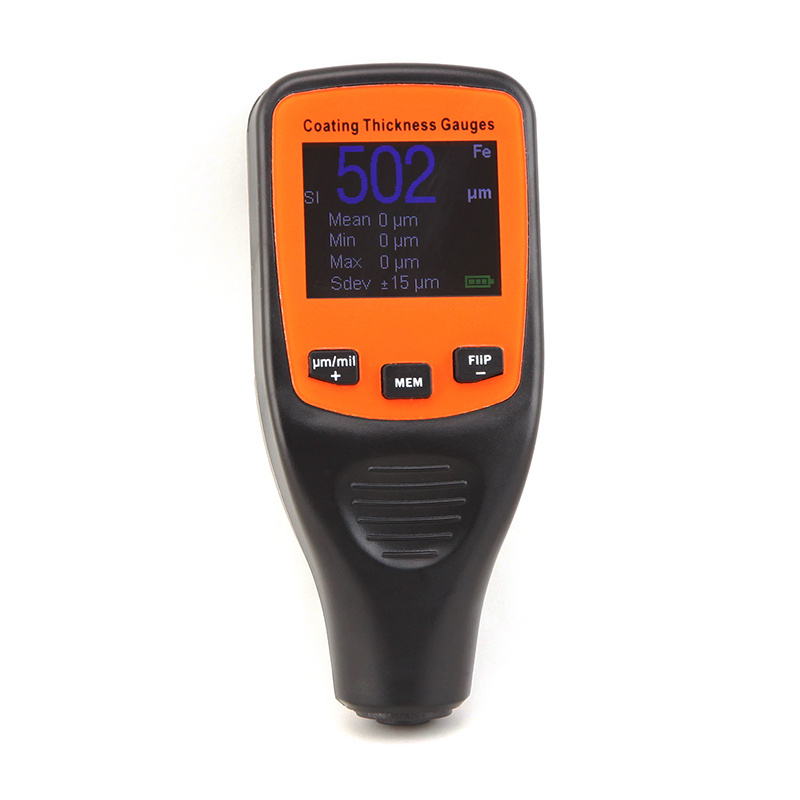

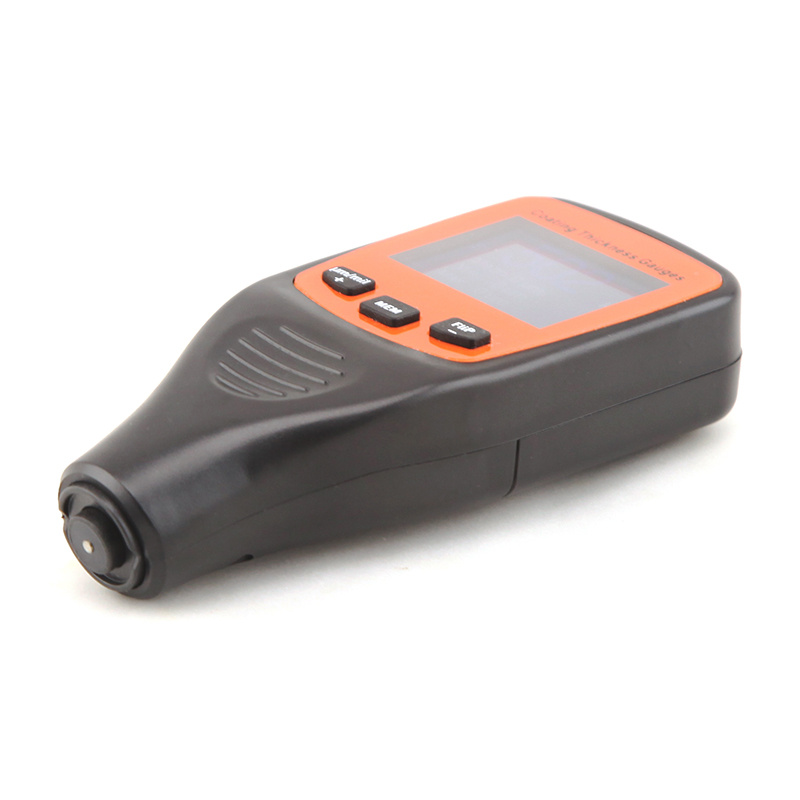

Digital gi pipe coating thickness gauge meter
The ultimate Paint Thickness Gage helps you escalate your business to the next level. Show everyone how professional you really are. Adoption of 160 x 128 TFT LCD Display Screen Convenient for you in the dark environment .lightweight and versatile unit automatically measures paint and coating thicknesses.
Ideal for Automobile...
Dealerships, Professional Car Buyers, Appraisers, Inspectors, Painters, Detailers, Body Shops, and more...
Identify repainted panels and all previous refinish work.
Buff with precision and confidence. Locate where extra work is needed.
Improve finish consistency and quality.
Cut expensive paint materials and costs.
Show customers where more paint stripping or re-clearcoating is needed.
Determine depth of acid rain damage.
Continuous and Single Measurement available.
Large backlit dual display shows any combination of MIN, MAX, or AVG.
160 x 128 TFT LCD two kinds of color display for easy viewing in any position.
Automatically recognizes the material and takes an accurate measurement.
Data storage for the last 10 measures.
Automatic ON/OFF switching.
Automatic Substrate Recognition.
Factory calibrated and ready for use. Measures precisely right out of the box.
Simple operation: No user calibration required.
Manual Calibration is now possible for specific applications.
ZERO set feature for non-standard surfaces.
Mils / Microns selectable. Displays readings in Metric (μm) or Imperial units (mil).
Pocket-sized and lightweight for comfortable one hand operation.
The F type probe for measuring the thickness of non-magnetic coating on Ferromagnetic base (e. G. Iron, nickel and more), like plating layer, lacquer layer, porcelain enamel layer, phosphate layer, copper/aluminum and some ally tiles papers and others.
The NF type probe for measuring the thickness of any non-magnetic coating on Non-Ferromagnetic metal base (aluminum, brass, stainless steel, etc.), like anodizing, varnish, paint, enamel, plastic coating, power layers, and others.
The F/NF 2 in 1 type probe Measures coatings on ANY METAL including steel, aluminum (including Anodizing on Aluminum), brass, etc.
Fe-Probe | Measurement on Steel or Iron | |
NFe-Probe | Measurements on Aluminum (or Any Other Non-Ferrous Metal) | |
Range | 0 - 1250um or 0 - 50mils | |
Resolution | 1um or 0.1mils | |
Accuracy | 0.1 mils + 3% or 2um+ 3% of readings | |
Temperature range | Storage | -10ºCto 60ºC (14ºF to 140ºF) |
Operation | 0ºC to 60ºC (32ºF to 140ºF) | |
Power Supply | 2x 1.5V AAA Alkaline | |
Dimensions | 118 mm x 51 mm x 27 mm | |
Weight | 80 g (not Including batteries) | |

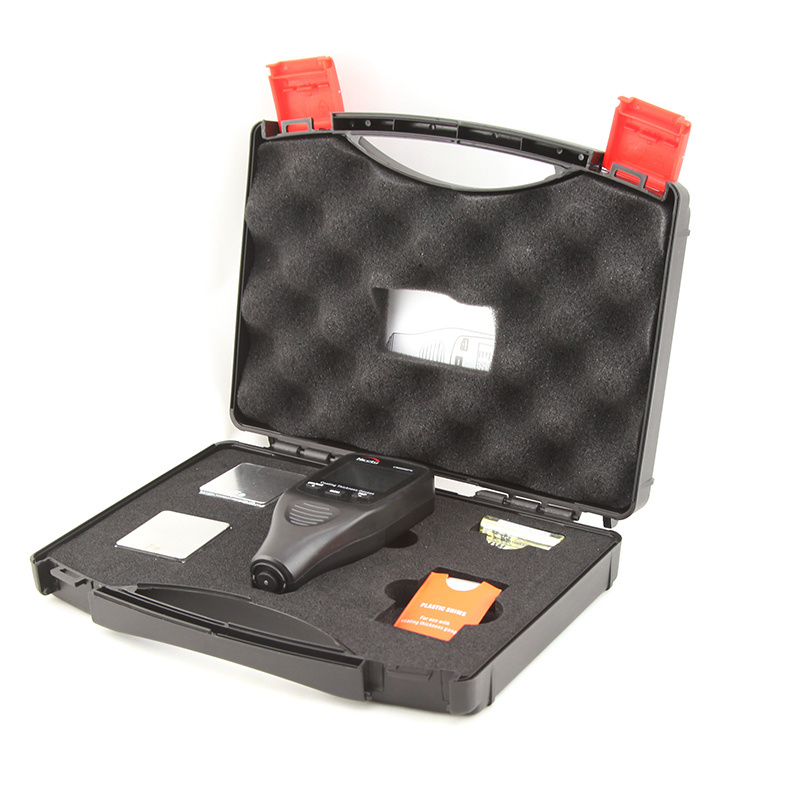

accessories:
Carrying case
Substrate blocks (steel x 1pc, Aluminumx1pc)
Calibration foils (50μm, 100μm, 250μm, 500μm, 1000μm)
English manual
