Sino Age Development Technology >> Digital Leeb Hardness Tester Hartip1800

Digital Leeb Hardness Tester Hartip1800

Name: Digital Leeb Hardness Tester Hartip1800
Brand: china-manufacturer-directory.com
SKU: 689548912
Availability: InStock
Rating: 4.8 (143 reviews)

Supplier:	Sino Age Development Technology
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	HARTIP1800
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Red
Materials:	9 Common Metal Materials
Hardness Scale:	Hl/HRC/Hrb/Hb/Hv/Hs
Port:	Beijing
Delivery:	Within 3 Workdays Upon Receipt of Full Payment
Type:	Leeb Hardness Tester
Measuring Range:	HLD
Application:	Metal
Standard:	ASTM

Product Description

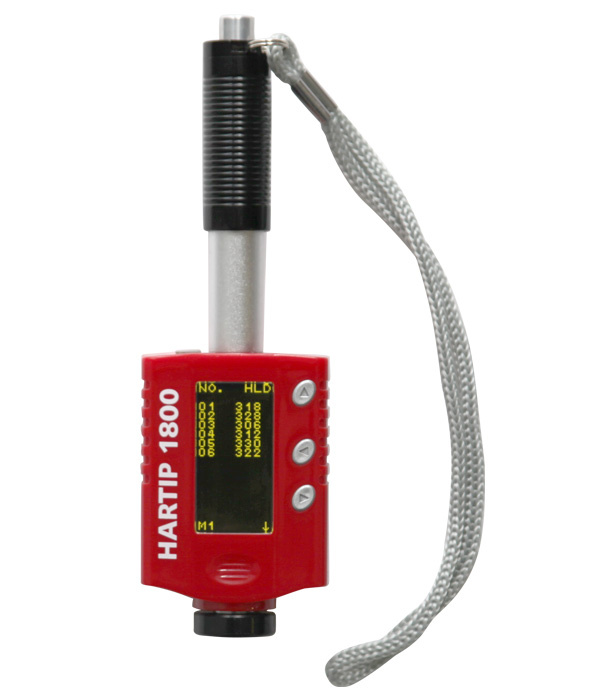

Digital Leeb Hardness Tester HARTIP1800

KEY FEATURES
Palm sized and easy operation
High contrast OLED display
Wide operating temperature: -40° C~+60° C
Auto recognize impact direction
Duplex readings on display: HLD value and correspond scale
Large digits and more readings alternatively
Four display orientations
Vast memory capacity: 360000 data can be saved
USB/RS232/bluetooth interface
Micro-printer can be used on site
Recalibration allowed by user
Liner compensate for angle measurement
Li-ion rechargeable battery charged by USB port or mains power
Statics value calculated automatically

ModelHARTIP 1800

PrincipleLeeb hardness measurement

Accuracy+/-2HL(0.5%@HL=800)

Displaydigital with high contrast LED

It can recognize imapct direction automatically

Hardness scaleHL/HRC/HRB/HB/HV/HS/σ b

Measruing rangeHL200-960 / HRC19-70 / HRB13-109 / HB20-655 / HV80-940 / HS32-99.5 / HRA30-88

Impact deviceD (Internal)

Materials9 common metal materials

Memory360, 000 data in 400 blocks

Statistics functionAverage / Max. / Min. / value

RecalibrationAllowed by user

InterfaceUSB for data transferring to PC and charging battery

IndicatorLow battery

Power on/offAuto

Power supply3.7v Li-ion rechargeable battery

Working environment-40~+80° C

StandardASTM A956

Dimension (mm)148x44x22

Net weight (g)110

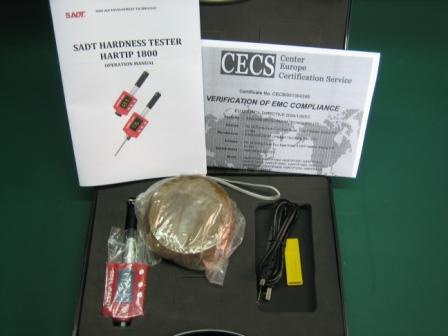

Standard package: Main body, impact device D internal, block D with certificate, small support ring, brush, 3.7 V Li-ion rechargeablebattery, Bluetooth, USB cable, data managing software, manual, testing report, water-proof and rigid carrying case.

Model	HARTIP 1800
Principle	Leeb hardness measurement
Accuracy	+/-4HL(0.5%@HL=800)
Display	digital with high contrast LED
Display mode	Normal or flip
Hardness scale	HL/HRC/HRB/HB/HV/HS/σ b
Measruing range	HL200-960 / HRC19-70 / HRB13-109 / HB20-655 / HV80-940 / HS32-99.5 / HRA30-88
Impact device	D (Internal)
Materials	9 common metal materials
Memory	360, 000 data in 400 blocks
Statistics function	Average / Max. / Min. / value
Recalibration	Allowed by user
Interface	USB for data transferring to PC and charging battery
Indicator	Low battery
Power on/off	Auto
Power supply	3.7v Li-ion rechargeable battery
Working environment	-40~+80° C
Standard	ASTM A956
Dimension (mm)	148x44x22
Net weight (g)	110

Sino Age Development Technology, Ltd. (SADT), is a leading manufacturer / supplier of measuring and testing instrument, specialized in NDT and quality control fields. We have our own HARTIP series portable hardness testers from the very begining. Now our main products cover portable and bench type hardness tester, ultrasonic thickness gauge, roughness tester, handheld metallurgical microscope, portable vibration meter, optical tachometer, ultrasonic flaw detector and so on. Our main overseas markets are: USA, Canada, Germany, France, Netherlands, Finland, Italy, Czech Republic, Poland, Lithuania, Estonia, Serbia, Greece, Turkey, Australia, New Zealand, Korea, Taiwan, Singapore, Thailand, Indonesia, Malaysia, Vietnam, India, Pakistan, Iran, UAE, Egypt, South Africa, Mexico and Columbia, Peru and etc. All products supplied by SADT have excellent quality and competitive price with our best service.
