Product Specifications
| Prod Model: |
XK-ELC1006A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

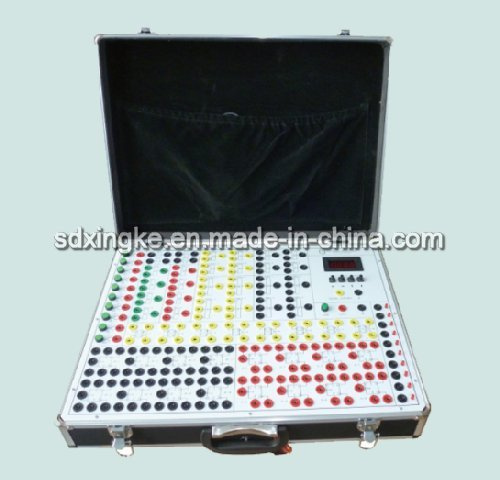

1. Digital logic experimental box
2. Electronic technology training box
3. Vocational school teaching device
Product Overview
Digital logic test box 4 one input ""non-logic gates, four 2-input"" or ""logic gate, four 2-input"" and ""logic gate, four 2-input and non-logic gates, 4-input ""and not"" logic gates, four 2-input OR logic gate, four 3-input OR logic gate, 8 JK flip-flop 8 D flip-flop 8RS flip-flop 10 high brightness LED, 5-button switch 5 twist switch, 1 to 2kHz signal source constitutes. For learning ""non"" or "", "" "", "" not ""and"" non-logic gates, JK flip-flop works, works of the D flip-flop, RS flip-flop works. The panel has a power indicator.
Main parameters:
1, The power supply: AC220V± 10%, 50Hz, ≤ 100W
2, Signal source: 0~2kHz
3, Working environment: No dust, oil mist and corrosive gases
4, Operating temperature: 0 to +50 ° C
5, Storage Temperature: -20 ° C to +80 ° C
6, Humidity: 40 ~ 90% RH
7, size: 370 * 330 * 120 (L * W * H)
8, Weight: <2KG
Main function
1, to learn the works of the ""non-logic gate
2, to learn ""or"" gate works
3, to learn ""and"" logic gate works
4, to learn NOR gate works
5, to learn AND. NOR logic gates
6, study the works of JK flip-flop
7, study the works of the D flip-flop
8, to study the working principle of the RS Flip-Flop
9, to learn the digital combinational logic
Shandong Xingke was established in 1999. Registered capital of our company was 12 million Chinese Yuan, and capital asset was 50 million Yuan. We have more than 300 employees till today, and more than 85% of them are specialized technicians. We have more than 30 senior & middle administrative staffs, and more than 80 senior & middle research & development engineers.
Product of our company covers many fields of educational equipment (such as electro-technology, electronic technology, electrical automatization, automation of electric power systems, pneumatic & hydraulics, mechatronics, intelligent buildings, numerically controlled lathes, etc. ). We possess 28 series, more than 280 kinds of products; And we own scores of patented products.
Our company covers more than 1, 200 square meters for research & development office. We also have a powerful R&D management team. We have built technology center, research laboratory, industrial park, nationwide marketing-network and customer service center.
We are expecting communication, cooperation and win-win business with you. Welcome to contact us when assistance is needed.
