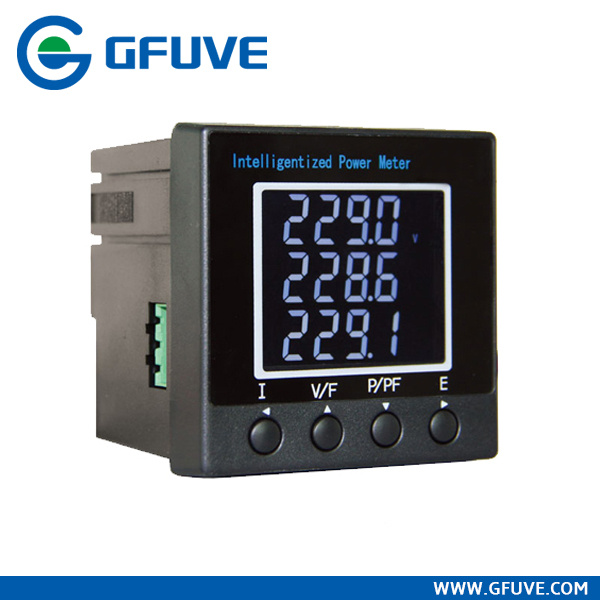

Digital Multifunction Power Meter
Price: |
Negotiable/Piece |
Trade Terms: |
FCA,EXW |
Min Order: |
1/Piece |
Pay Type: |
T/T,Paypal,Money Gram,Western Union |
Product Specifications
Prod Model: |
FU2040 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Measuring Range: |
0-800V, 0-6A, 45-60Hz |
Frequency: |
0.1% |
Electric Energy: |
0.5%, 1.0% |
Voltage: |
0.2%±0.1V |
Current: |
0.2%±0.001A |
Power: |
0.5% ±0.4W |
Power Factor: |
0.5% ±0.001 |
Measuring System: |
3p4w/3p3w etc |
Transformation Ratio: |
PT\ CT |
Address: |
1~247; Baud: 1200~19200; Parity Bit: N/E/O |
Type: |
Power Meter |
Display: |
Digital |
Electric Equipment: |
Three-phase Four-wire |
Theory: |
Electronic Meter |
Installation: |
Direct Connected |
Usage: |
Maximum Demand Meter |
Measured Signal: |
Pulse Peak |
Power Meter Connection: |
Terminal |
Product Description
FU2040 Digital Multifunction Power MeterIntroduction
FU2040 is a LCD display power analyzer, metering and displaying all the measured parameter in one circuit and computing four quadrants energy. This model can work in wide temperature range.
Measurement Parameters
Voltage (pH-N); Voltage (pH-pH); Current; Frequency; PF; Active Power(W); Reactive Power(Q); Apparent Power(S)
Computation
Forward / Reverse active / reactive power energy.
Measuring Range
30~600V, 0~6A, 45~60Hz
Measuring Accuracy
Frequency: 0.1%
Electric energy: 0.5%, 1.0%
Voltage: 0.2%± 0.1V
Current: 0.2%± 0.001A
Power: 0.5% ± 0.4W
Power Factor: 0.5% ± 0.001
Display
LCD Display, 3 Displays. 4 Operation keys.
Communication
RS-485 interface port support, 32(128) Networking, ModBus-RTU
Communication protocol.
Connection Mode
3P4W, 3P4W BAL, 3P3W, 3P3W BAL, 1P2W, 1P3W.
Programmable
Measuring System: 3P4W/3P3W etc.
Transformation Ratio: PT, CT.
Communication
Address: 1~247; Baud: 1200~19200; Parity Bit: N/E/O
Energy: Reset
Dimension
Mounting Panel: 72 X 72mm
Thickness: 13mm
Depth: 60mm
Mounting
Panel Mounting
Trepanning: 68 X 68mm
Power Supply (AC/DC)
AC85~265V / DC85~330V
Power Consumption: <4VA
Working condition
Temperature: -25 ~ 55 ° C
Humidity: 20% ~ 95%RH, Without condensation
