Digital Portable Hardness Tester Hartip1900
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Product Specifications
| Prod Model: |
HARTIP1900 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Blue |
| Materials: |
Steel/Cast Steel, Lamellar Iron, Nodular Iron, CAS |
| Hardness Scale: |
Hl/Hrb/Hb |
| Port: |
Beijing |
| Delivery: |
Within 3 Workdays Upon Receipt of Full Payment |
| Type: |
Leeb Hardness Tester |
| Measuring Range: |
HLD |
| Application: |
Metal |
| Standard: |
ASTM |
Product Description

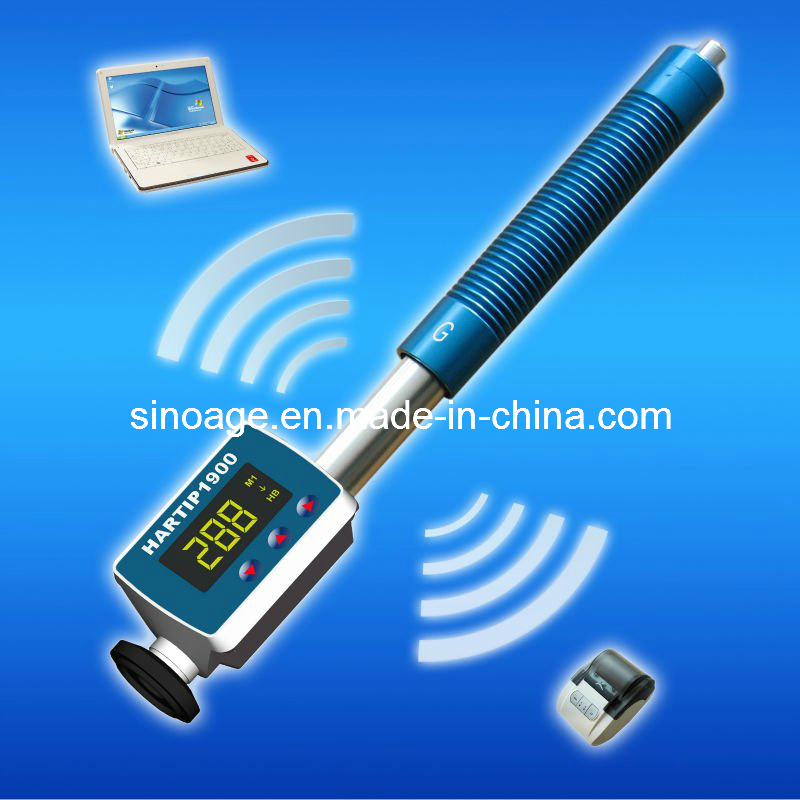

Digital Portable hardness tester HARTIP1900
HARTIP 1900 is a portable integrated Leeb hardness tester that is specially designed to measure hardness of castings in HL (Leeb), HRB (Rockwell B), HB(Brinell).
It has more impact energy (90N) and large contact tip (dia. 5mm) than normal. Therefore it can make test on machined surface or even roughness surface instead of polished or finished surface.
It is widely used for measuring hardness of large castings or raw materials at spot.
The HARTIP 1900 can make test at any angle without making setup for different impact direction. All readings can be downloaded to computer or printed out to microprinter wirelessly by Bluetooth.
KEY FEATURES
Rugged and Integrated design in aluminium housing
Universal impact direction
Dual hardness scales on display
Four viewing orientation
Shifting between large view & batch view
Statistics value display automatically
Upper or lower limit reminder
High contrast OLED display
Bluetooth interface for wireless transmission
Li-ion rechargeable battery
Abundant memory
| Model | SADT HARTIP 1900 |
| Principle | Leeb hardness measurement |
| Accuracy | ±4HLG |
| Display | High contrast OLED |
| Hardness scale | HL/HRB/HB |
| Measuring range | HLG300-750 / HRB47-100 / HB90-650 |
| Impact device | G |
| Materials | Steel/Cast Steel, Lamellar Iron, Nodular Iron, Cast Aluminum |
| Memory | 360000 data in 400 blocks, can be saved and re-readable |
| Statistics function | Average / Max. / Min. / S. value |
| Re-calibration | Allowed by user |
| Indicator | Low battery |
| Interface | USB or Bluetooth |
| Power on/off | Auto |
| Power supply | Rechargeable Li-ion bat ter y charged by USB port or charger |
| Working environment | -40ºC~+70ºC |
| Dimension (mm) |
|
| Net weight (g) |
|
| Standards | Conforming to ASTM A956, DIN 50156, GB/T 17394-199 |
Sino Age Development Technology, Ltd. (SADT), is a leading manufacturer / supplier of measuring and testing instrument, specialized in NDT and quality control fields. We have our own HARTIP series portable hardness testers from the very begining. Now our main products cover portable and bench type hardness tester, ultrasonic thickness gauge, roughness tester, handheld metallurgical microscope, portable vibration meter, optical tachometer, ultrasonic flaw detector and so on. Our main overseas markets are: USA, Canada, Germany, France, Netherlands, Finland, Italy, Czech Republic, Poland, Lithuania, Estonia, Serbia, Greece, Turkey, Australia, New Zealand, Korea, Taiwan, Singapore, Thailand, Indonesia, Malaysia, Vietnam, India, Pakistan, Iran, UAE, Egypt, South Africa, Mexico and Columbia, Peru and etc. All products supplied by SADT have excellent quality and competitive price with our best service.
