Product Specifications
| Prod Model: |
DRO D60 |
| Markets: |
North America,South America,Eastern Europe,Western Europe |
| Dro: |
for 2axis or 3axis Milling Machine |
| Resolution: |
5um/1um |
| Controlling Mode: |
Program Control |
| Precision: |
High Precision |
| Type: |
Instrument Machine Tool |
| Automatic Grade: |
Automatic |

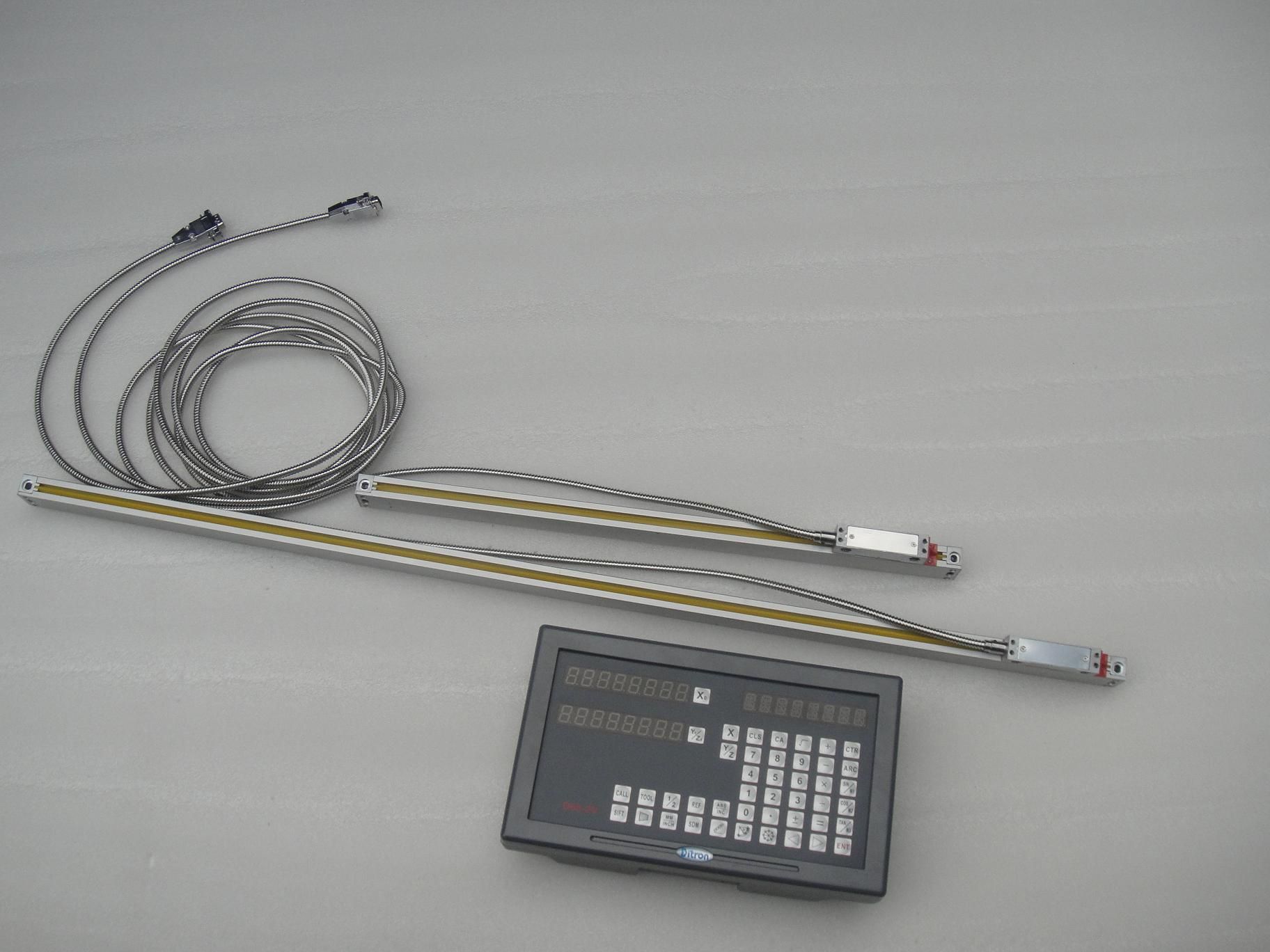

Product Description
Dimensions: 308x194x80 (Unit: Mm)
Input power voltage: AC 100V~240V; 50 Hz/60 Hz
Power consumption: 7-14VA
Fuse: 2A/250V
Operating temperature: 0~45ºC
Storage temperature: -30~70ºC
Relative humidity: <90% (20± 5ºC)
Weight: 2M, 3M, 3E, 2G, 2L 4.0kg/PCS (include mounting brackets)
MODEL: Ditron D60-DRO 2L/2M/3M/3E/2G
Package: Carton
Package Dimensions: 390x290x140(Unit: Mm)
Features:
Advanced electronic technology
High speed count
Full trigonometric functions: Sine, cosine and tan is inbuilt
Multiple memories
Zero point reference
Rugged die cast aluminum case with powder coated finish
Durable keypad for all functions
All counters supplied with mounting Bracket
RS-232C RS-232C Interface of DRO
1. Basic functions
Start, self-checking
System Settings
Zeroing
Presetting
Absolute/Incremental/200 groups user coordinate display way
MID-point Calculation
Toggle Display Unit Between mm and inch
Setting Linear Compensation
Outage memory
2. Smooth ARC R Function (For: 2M, 3M)
3. Simple and Easy R (For: 2M)
4. Function of boring hole in oblique line (For: 2M, 3M)
5. 200 points auxiliary zero (For: 2M, 3M, 3E, 2G, 2L)
6. Bevel Machining (For: 2M, 3M)
7. Function of Finding Zero Automatically (For: 2M, 3M, 3E, 2G, 2L)
8. Simple calculation function (For: 2M, 3M)
9. Function of Tool Compensating (For: 3M)
10. Display Value Filter (For: 2G)
11. EDM output function (For: 3E)
12. Lathe function (For: 2L)
|
Model |
Description |
Accessory |
warranty |
|
DRO D60-2M |
2axis DRO for milling machine |
manual(1); power cable(1); bracket(1) |
1year |
|
DRO D60-2G |
2axis DRO for grinding machine |
manual(1); power cable(1); bracket(1) |
1year |
|
DRO D60-2L |
2axis DRO for lathe machine |
manual(1); power cable(1); bracket(2) |
1year |
|
DRO D60-3M |
3axis DRO for milling machine |
manual(1); power cable(1); bracket(1) |
1year |
|
DRO D60-3E |
3axis DRO for EDM cutting machine |
manual(1); power cable(1); bracket(1);
signal line(1) |
1year |
|
DRO D60-3L |
3axis DRO for lathe machine |
manual(1); power cable(1); bracket(1) |
1year |
