Dimensions: 308x194x80 (Unit: Mm)
Input power voltage: AC 100V~240V; 50 Hz/60 Hz
Power consumption: 7-14VA
Fuse: 2A/250V
Operating temperature: 0~45ºC
Storage temperature: -30~70ºC
Relative humidity: <90% (20± 5ºC)
Weight: 2M, 3M, 3E, 2G, 2L 4.0kg/PCS (include mounting brackets)

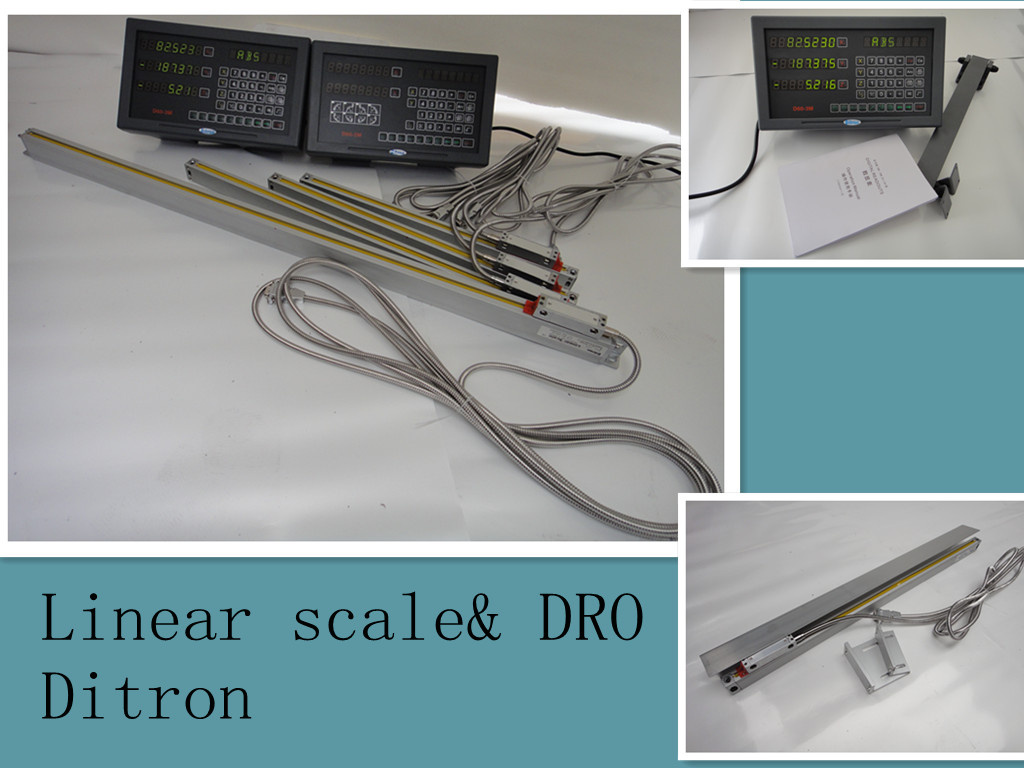

MODEL: Ditron D60-DRO 2L/2M/3M/3E/2G
Package: Carton
Package Dimensions: 390x290x140(Unit: Mm)
Features:
Advanced electronic technology
High speed count
Full trigonometric functions: Sine, cosine and tan is inbuilt
Multiple memories
Zero point reference
Rugged die cast aluminum case with powder coated finish
Durable keypad for all functions
All counters supplied with mounting Bracket
RS-232C RS-232C Interface of DRO
1. Basic functions
Start, self-checking
System Settings
Zeroing
Presetting
Absolute/Incremental/200 groups user coordinate display way
MID-point Calculation
Toggle Display Unit Between mm and inch
Setting Linear Compensation
Outage memory
2. Smooth ARC R Function (For: 2M, 3M)
3. Simple and Easy R (For: 2M)
4. Function of boring hole in oblique line (For: 2M, 3M)
5.200 points auxiliary zero (For: 2M, 3M, 3E, 2G, 2L)
6. Bevel Machining (For: 2M, 3M)
7. Function of Finding Zero Automatically (For: 2M, 3M, 3E, 2G, 2L)
8. Simple calculation function (For: 2M, 3M)
9. Function of Tool Compensating (For: 3M)
10. Display Value Filter (For: 2G)
11. EDM output function (For: 3E)
12. Lathe function (For: 2L)
|
Technical specifications of grating ruler of DC series |
|
Model |
DC10 |
DC11 |
DC20 |
|
Grating line-space |
20µ m(0.020mm) |
|
Gratingmeasuring system |
Projection-type infrared optical measuring system,
IR wavelength: 880nm |
|
Reading head of rolling system |
Vertical five bearings and 45° rolling system |
|
Resolution |
5µ m 1µ m |
|
Environment |
Temperature: 0~50º C Humidity< =90% |
|
Voltage |
5V± 5% DC 24V± 5%DC |
|
Output signal |
TTL ~1Vpp EIA-422-A(RS422) |
Chengdu Ditron Optics & Electronics Equipment Ltd. Is a professional company which has a grating digital system of research and development, products and sales etc.
Our group has more than 10 years' experience in the field of grating, digital readout. By using highly advanced technology of domestic and overseas, we had developed a series of products which are reliable, durable, high quality at a reasonable price; At the mean time, we understand that it is very crucial to have effective and timely technical support besides holding high quality and reliable products. So we do our best to be a well experienced and highly excellent technical service team, and work hard to survive our company in this modern scientific era and for competitive with other well developed companies of the world.
The Grating system of Ditron is used by many clients from all over the world. As the stable quality and reasonable prices, we have got many good comments from them. And our products have got the certification of ISO9000, RoHS and CE2000. With the developing of the industry, we know that the standard of every product would be higher and higher, so for the best, our Ditron group would work harder to keep on (pay attention to)paying our attention on developing new technology, improving production, supplying more diversified products and promoting the quality in the future.
We stress contracts and keep promises, we would supply you the high quality, reasonable price and perfect after-sales service system. We sincerely welcome all of you can cooperate with us, and create a bright future.
