Digital Textile Sublimation Printer Three DX7 Printheads 1440dpi*1440dpi 1.8m MT-Textile 7703
Product: Digital Textile Printer with Epson heads DX5/DX7, 1440dpi, 1.6m/1.8m/3.2m optional, large format textile printer, flag printer, fabric printer.
MT-Starjet Series Digital Textile Printer have been used most field such as advertisement printing textile digital printing, carpet digital printing, windows curtain digital printing and interior decoration printing and flax printing widely.
MT-Starjet Series Digital Textile Printer adopt Epson DX5 or Epson DX7 print heads, which is high resolution up to 1440dpi, suitable for printing with sublimation ink, reactive ink, acid ink etc. Widely used for large format digital textile printing use.
LOW COST
It is simple and leaves out deat transfer process one person can operates with high efficiency and short time.
Low cost and no need of any kind of interval paper, bearing the highest cost performance.
Adopting the most advanced thermal energy technology, Low power consumption, saves electricity, and conserve energy cost.
HIGH PRODUCTIVITY
Brand-New Printing Concert, Unnecessarily handmade plate making, printing directly.
Rapid speed and various printer to choose
MORE BUSINESS OPPORTUNITIES
Suitable for small lot, Personality, Diversity Printing, Without Limit Of Quantity.
The printed image color is bright and vivid with nice color gamut. Printout on Knitting fabric by sublimation ink directly printing. Printout on non-woven fabric by sublimation ink directly printing. Printout on flag fabric by sublimation ink directly printing.
FEATURES
@Far Infrared Blackbody Tube Radiation Electrothermal Heating
@Intelligent PID Temperature Control
@Digital Tension Control
@Feeding Speed and Taking up Speed are Controllable
@Vacuum Fan Delivery is Controllable
@Quick Tail Gas Treatment
@Convenient to Maintain
@Easy to Set Up and Operate
|
Type |
MT-Starjet 7703L Digital Textile Printer |
|

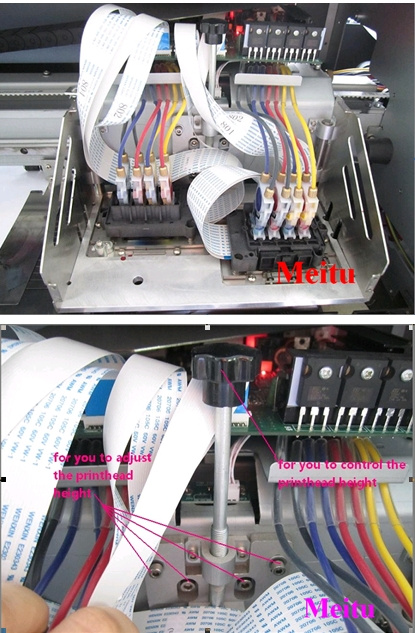

Print Head |
Two DX7 Drop-on-demand Micro-Piezo Print Heads |
|
Number of Nozzles |
4320 Nozzles (3 Heads) |
|
Color |
4 Colors:Cyan, Magenta, Yellow, Black |
|
Resolution |
1440dpi (max)/1440dpi |
|
Height of Print Head |
2-5mm |
|
Size of Ink Droplet |
1.5-21 pl |
|
Max. Print Width |
1800mm |
|
Max. Media Width |
1900mm (max) |
|
Real Time Tracking |
None |
|
Print Speed |
3pass |
40 sq.m per hour |
|
4pass |
31 sq.m per hour |
|
6pass |
23 sq.m per hour |
|
8pass |
15 sq.m per hour |
|
Media Feeder |
Yes |
|
Media Take-up |
Yes |
|
Material |
max weight |
70 |
|
application type |
Weave or knit cotton, flax, silk, polyester, cashmere, towel ect. |
|
Ink |
Type |
Reactive, acid, disperse, pigment |
|
Ink tank account |

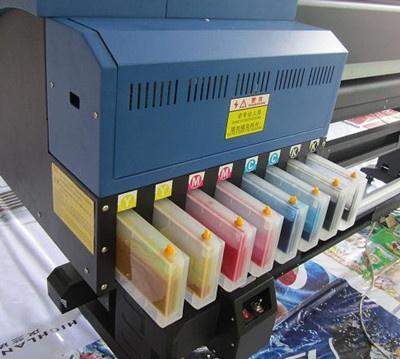

8*350ml continuous ink supply |
|
Auto cleanning system |
yes |
|
Interface |
USB2.0 |
|
Power |
Power Voltage |
AC220-240V 50-60HZ or AC110-120V 50-60HZ |
|
Control Software |
Print Console |
|
Rip software |
Iprint3.0 |
|
Operation System |
MS Windows XP & Windows 7 |
|
Printing Environment |
Temperature: 20-25 centi degree, Humidity: 40-60% |
|
|
|
Picture type |
JPG PSD TIF |
|
Printer Dimension |
W2840*D900 * H1250mm |
|
Packing Dimension |
W2920*D930 * H730mm |
|
Net Weight |
220kgs |
|
Gross Weight |
300kgs |
