Product Specifications
| Prod Model: |
CWF52-20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| R37c: |
30k |
| Tolerance: |
+/-0.1oc |
| B25/50c: |
3950k |
| Lead Wire: |
32AWG |
| Resistance: |
Variable Resistor |
| Type: |
Thermal Resistor |
| Function For Resistance: |
Protective Resistor |
| Application: |
Digital Thermometer |
| Quantity: |
as Required |
| Installation: |
as Required |
| Material: |
Metal Oxide |
| Package Type: |
Solder |
| Resistance Change Scale: |
Non-Linear |
| Shape: |
Customized |
| Brand: |
Tonze |

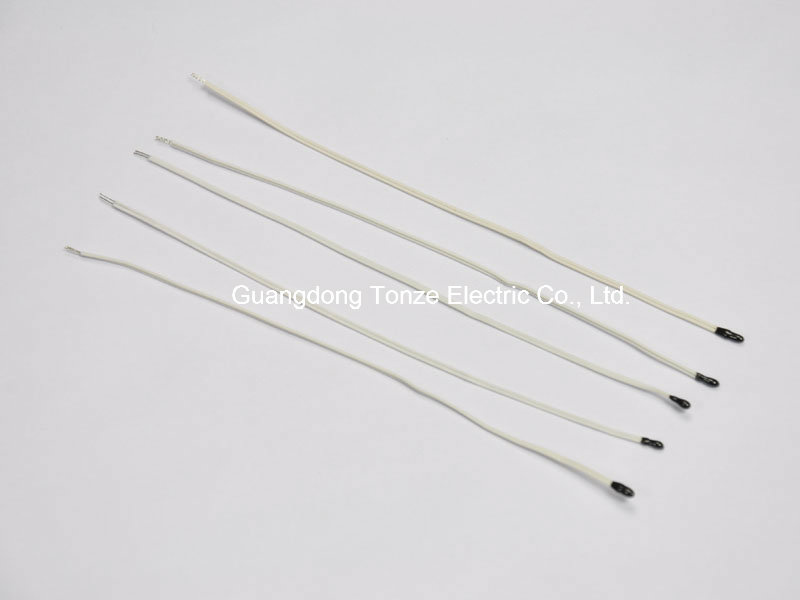

Product Description
· R37
ºC=30KΩ
· 32AWG PVC wire
· Allowable Tolerance to be ±0.1
ºC· Featuring moisture protection, good insulation
· High reliability, little time constant and sensitive response
· Specially for digital thermometer, medical appliance and so on

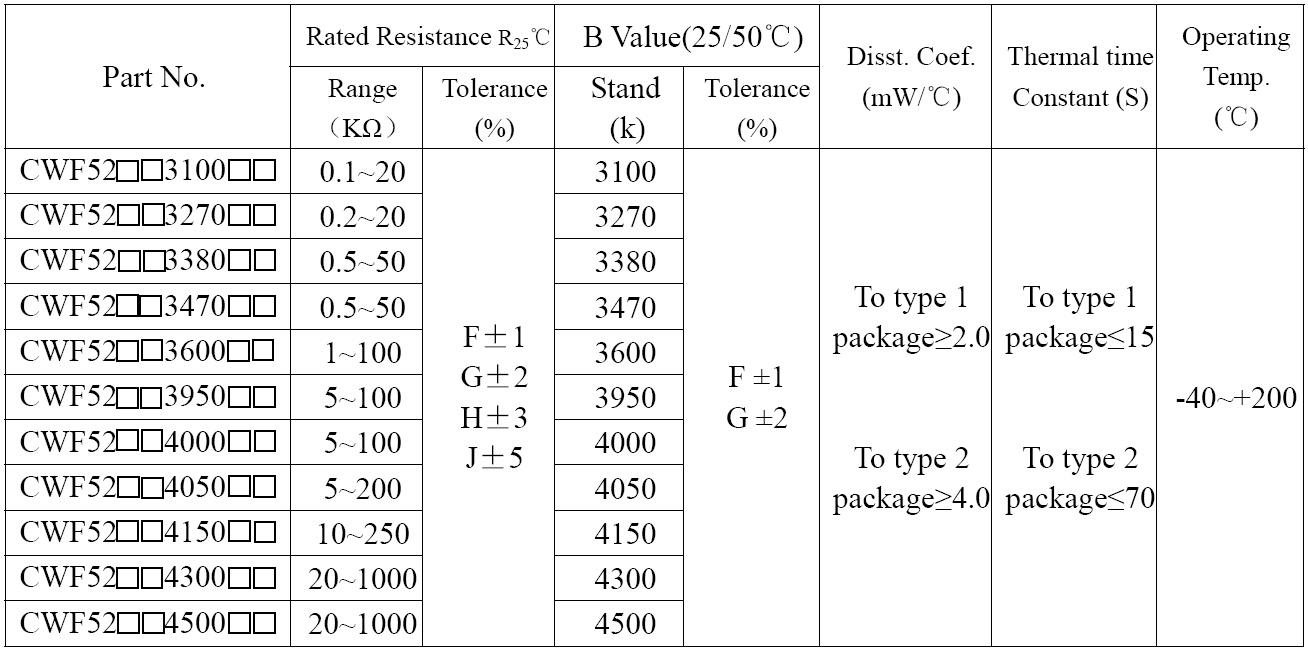

· A variety of coating configuration and wire gauge are available according to different usages Specification: · Resistance under R37
ºC: 30KΩ
· The allowable tolerance of R37
ºC: ±0.1
ºC· The range of B value (K): 3950K
· The allowable tolerance of B value: ±1%
· The range of operating temperature: -30
ºC ~ +105
ºC· Dissipation factor: ≥2.0mW/
ºC (In Still Air)
· Thermal time constant: ≤15S (In Still Air)
· Encapsulated: Epoxy coated
· Dimension: 250mm length
Established in 1996, Guangdong Tonze Electric is a professional and leading manufacturer specializing in high precision NTC THERMISTORS and TEMPERATURE SENSORS, as well as Medical and Home Electric Appliances. We are capable of making all kinds of specifications to meet your requirements and providing technical support.
We are an ISO9001 and ISO14001 certified company, covering an area of 39, 000sqm located in Shantou, China.
With excellent testing equipment, professional manufacturing technique, and perfect quality control system, we aim to serve customers with high product quality and honesty.
Trust in us for our 18 years experience serving the famous enterprises. Welcome to contact.
