Product Specifications
| Prod Model: |
(HHS3PR) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Time Delay Range: |
9.9s,99s,9.9m,99m |
| Working Mode: |
Cycling-Delay |
| Type: |
Timer |
| Usage: |
Timer Switch |
| Theory: |
Electronic |
| Carry Mode: |
Synchronous Counter |
| Carry Base: |
Decimal Counter |
| Mechanism: |
Electronic |
Product Description
Product type:
Digital Time Relay/Time Relay/Timer/Relay
HHS Series Time Relays are used as the delay component in the control circuit with 50/60Hz alternating current, 380V or below 380V rated voltage or 24V direct voltage.
HHS Series Time Relays are not only characterized by the high time-delay precision and wide time delay range, but also possess two display modes: Increasing progressively display mode and decreasing progressively display mode. There are six working modes such as on-delay, off-delay, cycling-delay, star-delta starting-delay, release-delay working modes and so on.
HHS Series Time Relays with a complete range of products and novel appearance, are widely used in the control circuit of industrial automation.

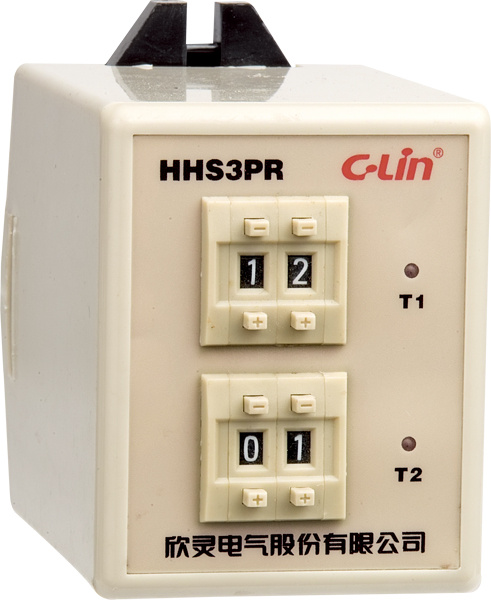

| Mode | HHS3PR Digital Time Relay/Time Relay/Timer/Relay |
| Working Power | DC24V; AC24V, 220V, 380V |
| Time Delay Range | 9.9s, 99s, 9.9m, 99m |
| Repetitive Error | less than or equal to 1% |
| Working Mode | cycling-delay |
| Contact Form | 2C time delay |
| Contact Capacity | 3A AC220V(Resistance) |
| Dimension | 78*50*84mm |
| Mounting Dimension | 75.5-2*4.5(diameter)mm |
| Mounting Mode | Matching outlet style |
Xinling Electrical Co., Ltd. China was established in 1990. The company has 9 sub-branches, more than 100 cooperation units, and 100 direct distributors, 1000.00m2 factory area and 1000 stuffs.
The company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, itsstreng thens the management or enterprise and promotes product quality. The company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.
The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.
Xinling --- will create a magnificent tomorrow together with you!
