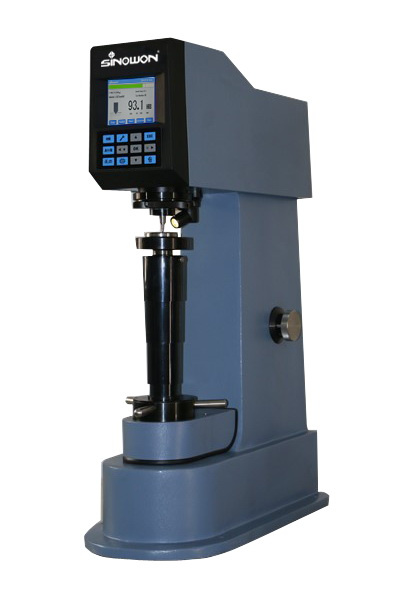

Digital Twin Superficial Rockwell Hardness Measurement Instrument
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Product Specifications
| Prod Model: |
VEXUS SHR-150T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rockwell Scales: |
Hra,Hrb,HRC,Hrd,Hre,Hrf,Hrg,Hrh,Hrk,Hrl,Hrm,Hrr |
| Superficial Rockwell Scales: |
15t,30t,45t;15W,30W,45W;15X,30X,45X;15y,30y,45y |
| Preliminary Test Force: |
3kgf, 10kgf |
| Test Force: |
Rockwell: 60kgf(558.4n),100kgf(980.7n),150kgf(1471 |
| Dwell Time: |
Adjustable 1-60s |
| Hardness Display: |
5.2" Touch Screen |
| Resolution: |
0.1hr |
| Max. Height Of Specimen: |
280mm |
| Throat: |
158mm |
| Gross/Net Weight: |
150/130kg |
| Type: |
Rockwell Hardness Tester |
| Measuring Range: |
HRC |
| Application: |
Plastic |
| Standard: |
GB/T |
Product Description
Full Rockwell Hardness Tester, can test 30 Rockwell Scales, includes plastics Rockwell scale.
Motorized control loading, dwell and unloading, eliminates error by manual operation, accuracy conform latest ASTM and GB standards.
Color touch screen, displays loading force, indenter type, dwell time, and conversion scale.
Auto hardness conversion to others scales, no need to check table and improve working efficiency.
With USB and RS232 Communication ports, available to connect with printer, or transfer data to computer.
Built-in micro processor auto compute max, min, mean and deviation value, resolution is 0.1HR, largely improve accuracy.
Support Multiple languages, English, Turkish, German, etc. Convenient for local customers operation.
With 2000 single testing results and 1000 group results. Reviewing results and analysis.
Application:
Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.
Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened steel, and other materials harder than B100.
Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.
And others materials like Bearing metals and other very soft or thin materials. Use smallest ball and heaviest load that does not give anvil effect.
| Specifications: |
|
|
| Product Name | Digital Rockwell Hardness Tester |
| Model | Vexus SHR-150T |
| Code# | 811-326 |
| Rockwell Scales | HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK,HRL,HRM,HRR |
| Superficial Rockwell Scales | 15T,30T,45T;15W,30W,45W;15X,30X,45X;15Y,30Y,45Y |
| Preliminary Test Force | 3kgf, 10Kgf |
| Test Force | Rockwell: 60Kgf(558.4N),100Kgf(980.7N),150Kgf(1471N) |
| Superficial Rockwell: 15kgf, 30kgf, 45kgf |
| Dwell Time | Adjustable 1-60s |
| Hardness Display | 5.2" Touch Screen |
| Resolution | 0.1HR |
| Force Loading | Auto Loading/Dwell/Unloading |
| Data Output | Optional Blue Tooth Mini Printer |
| Hardness Conversion | HRA,HRB,HBC,HRD,HRF,HBS,HBW,HV,HK,HS,HR15N,HR30N,HR45N,HR15T,HR30T,HR45T |
| Max. Height Of Specimen | 280mm |
| Throat | 158mm |
| Dimension | 520 x215 x700mm |
| Packing | 650 x480 x990mm |
| Power supply | AC 220V/50Hz;AC110V/60Hz |
| Gross/Net Weight | 150Kg/130Kg |
| Standard | GB/T230.2, JIS Z2245, EN-ISO 6508 , ASTM E-18 |
| Standard Delivery: |
|
|
| Accessories | Code# |
| Main Unit | 811-171 |
| Block(57-70) HRC | #811-641C |
| Block(20-33) HRC | #811-611C |
| Block(85-100) HRB | #811-641B |
| hardness block HR30N | 811-671N |
| hardness block HR30T | 811-671T |
| Power cable | 811-801 |
| Anti-dust Cover | 811-911 |
| Ø1.588mm Ball indenter | #811-411 |
| Ø1.588mm Ball | #811-421 |
| Diamond Indenter | #811-401 |
| Ø 150mm Anvil | #811-541 |
| Ø 40mm "V" Anvil | #811-511 |
| Ø 60mm Anvil | #811-521 |
| Weight A | #811-711 |
| Weight B | #811-721 |
| Weight C | #811-731 |
| Carry Case | #811-901 |
| Manual | Vexus SHR-150T |
| Certificate | Vexus SHR-150T |
| Optional Accessories: |
|
|
| Accessories | Code# |
| 1/8" Ball indenter | #811-431 |
| Ø1/8" Ball | #811-441 |
| Ø 100mm Anvil | #811-531 |
| 1/4" Ball Indental | #811-451 |
| Ø 1/4" Steel Ball | #811-461 |
| Mini Printer | #811-841 |
| 1/2" Steel Ball Indenter | #811-471 |
| Ø 1/2" Steel Ball | #811-481 |
| Indenter Protector | #811-491 |
