Dongguan Lixian Instrument Scientific Co., Ltd. >> Digital-Type Automatic Yarn Twist Testing Machine (Hz-8006B)

Digital-Type Automatic Yarn Twist Testing Machine (Hz-8006B)

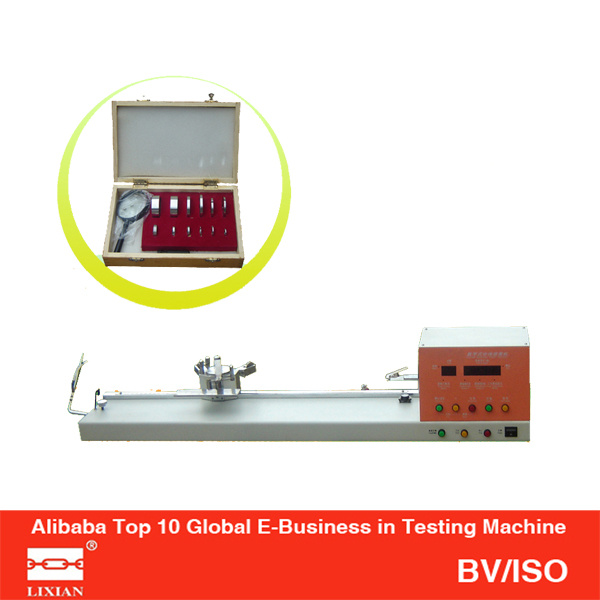

Name: Digital-Type Automatic Yarn Twist Testing Machine (Hz-8006B)
Brand: china-manufacturer-directory.com
SKU: 613331344
Availability: InStock
Rating: 4.4 (54 reviews)

Supplier:	Dongguan Lixian Instrument Scientific Co., Ltd.
Price:	US $ 2000-2500/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	HZ-8006B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Twist Range:	1~6000.0 Twist/10cm, 1~6000.0 Twist/M
Untwisting Elongation Range:	Maximum 60mm (Scale Instructions)
Test The Maximum Twist Shrinkage:	20mm (Gauge Instructions)
Moving Clamp Speed:	200~2000r/Min
Pre-Tension:	0.5~171.5cn(Tranche Adjustment)
Test Report Output:	Display Search Output, Printer Output
Outside Dimension:	Host:920170220mm Printer: 390275 170mm
Printer Model:	Epson, Lq_300k
Machine Weight:	16kg
Power:	AC220V, 50Hz, 25W

Product Description

The machine used to measure different types of yarn twist and untwisting rate of change of length and contraction rate, product quality assessment or for the production process to provide reliable data, which is the ideal new twist testing machine

To meet the standard:
1. GB/T2543.1-2001 Determination of twist in textile yarns Part 1: Direct counting method
2. GB/T2543.2-2001 Determination of twist in textile yarns Part 2: Back twist twisting Law
3. FZ/T10001-92 Determination of flow untwisting yarn twist twisting Law

Model	HZ-8006B
Size of LCD screen	60mm×110mm
Control	Computer control, data processing, printing output
Pre-tension mode	Horizontal pulley balance swing mechanism, the level of pre-tension hung heavy
Test method	a, the average slip back twist stretch
	b, the average maximum elongation untwisting
	c, the direct counting method
	d, twisting untwisting
	e, twisting untwisting
	f, three back-twist twisting method
Measuring length	10mm,25mm,50mm,100mm,200mm,250mm,500mm
Twist range	1~6000.0 Twist/10cm,1~6000.0 Twist/m
Untwisting elongation range	Maximum 60mm (Scale instructions)
Test the maximum twist shrinkage	20mm(Gauge instructions)
Moving clamp speed	200~2000r/min
Pre-tension	0.5~171.5cN(Tranche adjustment)
Test report output	Display search output,printer output
Outside dimension	Host:920mm×170mm×220mm
Outside dimension	Printer: 390mm×275mm×170mm
Printer model	EPSON,LQ_300K
Weight	16kg
Power	Ac220V,50Hz,25W

Lixian Instrument Co., Ltd., is a high-tech joint venture company which with professional design and manufacture of various type instruments. Company founded in 1992, the headquarters is located in Shanghai now, Company has a group of first-rate professionals, dedicate to product development and marking.

Most parts of products are mainly sale to Taiwan and overseas, Company not only has the advanced production equipment and strong technical force, but also introduced the high-tech scientific research units from Beijing and Shanghai to continue to develop newer products, Won the trust of customers with the first-rate quality, reasonable price and excellent after-sales service.
