Microcomputer Economic Material Measuring Instruments (Hz-1005A)

Product Specifications

Prod Model:	HZ-1005A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Resolution:	1 / 50000
Displacement Resolution:	0.001mm
Power System:	AC Motor, Deceleration Device(From Italy)
Control System:	Testing Speed 50~300 Mm/Min with Stepless Speed
Data Sampling Frequency:	200times/Sec
Displacement:	1200mm
Power:	AC 220V Single-Phaset400W
Machine Size:	600*450*1800mm
Machine Weight:	70kg
Type:	Universal Testing Machine
Weight:	100-500Kg
Power Source:	AC220V
Maxcapacity:	1kn, 2kn, 5kn Option.(From U.S.a.)
Display:	10 Testing Results, Digital

Product Description

Equipment summary

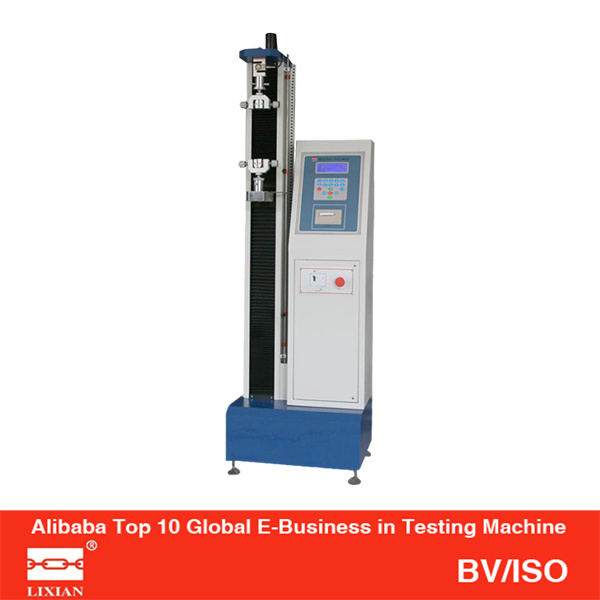

Hz-1005 Microcomputer economic material testing machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, This machine is simple to operate, simple structure, it can be directly placed on the testing table for test, especially suitable for controlling quality in production line This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 5KN.

Main functions:
This machine can be test all the material in tensile, compression, bending, shear, peel, tear, two-point extended (need add extensometer) and others for control products quality. Such as textile, rubber, plastics, synthetic leather, tape, adhesive, plastic film, composite materials, electronics, metals and other materials.

Main feature
1. The surface of appearance using electrostatic spray, simple and generous, multi-functions and economy
2. Digital force displayed by LCD, discernible tension or pressure, LCD display clearly
3. Three kinds of units: N-Kgf-Lbf option or automatically exchange;
4. LCD with backlight can be used in low-light environments
5. Single measurement, it can record the max force of tension and compression in both directions, automatic or manual cleared to zero.
6. The system would shut down if overload or over-trip
7. Structure of single-column is beautiful, sophisticated and economy.

Corresponding standard:
GB/T16491-1996 electronic universal testing machine
Applicable industry:
It is widely used in wire and cable, hardware, electronic and electrical equipment, packaging, printing, medical equipment, auto parts, textiles and leather, clothing, shoes, rubber and plastic products, colleges and universities; Research laboratories; Inspection arbitration, technical supervision departments and many other industries, it is the basic equipment for quality management and physical tested

Technical parameters:
A. Maximum Load: 5KN
B. Capacity choice: 1KN, 2KN, 5KN option. (from U. S. A. )
C, accuracy of load measurement: The load cell + Hz-2000 screen ± 0.5% (full range of 5% -100%)
D. Units: Kg, Lb, N
E. Resolution: 1 / 50000
F, displacement resolution: 0.001mm
G. Power system: AC motor, deceleration device(from Italy)
H. Control system: Testing speed 50~300 mm/min with stepless speed and 5 fixed-speed
(50, 100, 200, 250, 300)or the needs of customer.
I, Data sampling frequency: 200times/sec
J. Displacement: 1200mm
K. Safety devices: Overload, emergency stop devices, limited devices of displacement, leak current protection device
L. Machine has function of printing.

Can store 10 testing results and auto-calculate its average, auto-grab maximum force and the force at break.
Display: Hz-2000 dark blue LCD display, membrane touch keys, with the following functions.
Single test, 10-point statistics manually and automatically calculate its average and break values;
Multi-unit automatically exchange such as kgf, Lbf, N;
Function of free to take point;
With multi-calibration function;
Auto printing function;

Using 24-bit AD acquisition, resolution 1 / 200000;
Decimal digits 0 to 4 arbitrary choice;
Starting up using password protection feature, which can effectively prevent the non-operators to use
Ratio of Breakpoint from 0 ~ 99%, which the user can set according to different materials to stop the machine
Overload protection function can be set, effectively preventing machine from overload;
O, power supply: AC 220V single-phase
P, power: 400W
Q, machine size: About 600X450X1800mm(length * width * height)
R, weight: 70kg
Original configuration
A group of tensile fixture

Model	HZ-1005A  Electronic Universal Material Tension Tester
Maximum Load	5KN
Capacity choice	1KN,2KN,5KN option.(from U.S.A.)
accuracy of load measurement	the load cell + HZ-2000 screen ± 0.5% (full range of 5% -100%)
Units	Kg,Lb,N
Resolution	1 / 50000
Displacement resolution	0.001mm
Power system	AC motor,deceleration device(from Italy)
Control system	testing speed 50~300 mm/min with stepless speed and 5 fixed-speed (50,100,200,250,300)or the needs of customer
Data sampling frequency	200times/sec
Displacement	1200mm
Safety devices	overload, emergency stop devices, limited devices of displacement,leak current protection device
Power supply	AC 220V single-phase
Power	400W
Display	can printing and store 10 testing results and auto-calculate its average, auto-grab maximum force and the force at break.
Machine size	about 600x450x1800mm(length * width * height)
Weight	70kg
