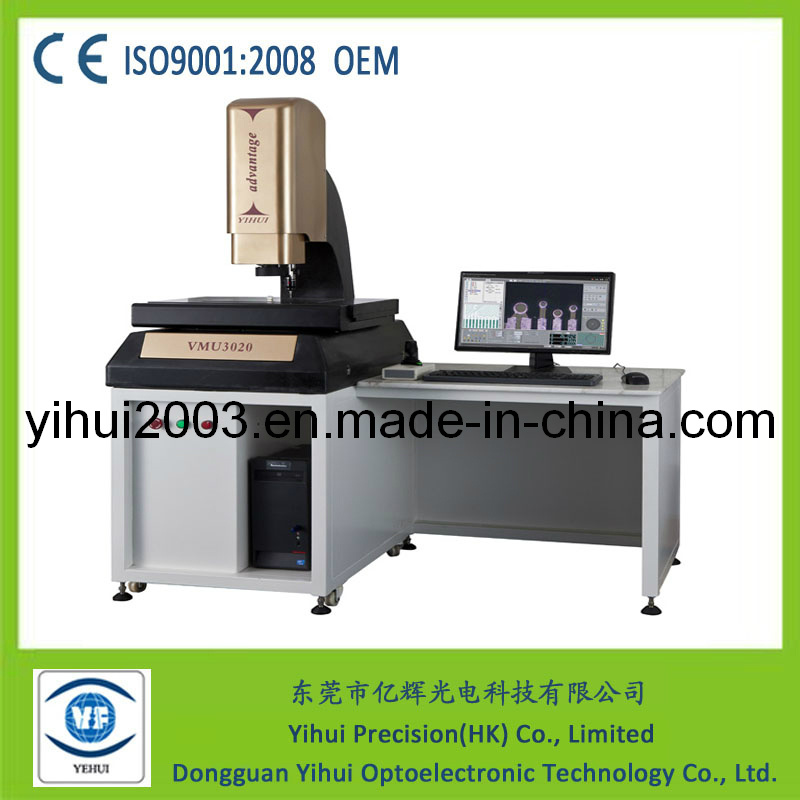

Dimensions Measuring Instrument(VMU 3020)
Usage:
1)High-precision: (1.5 + L/200)um;
2) Powerful 3D measurement functions, complete the form and position tolerances measurement;
3) Weak side measurement, curve scanning, photo input;
4) Powerful SPC statistical functions.
Feature:
1. It can measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function.
2. Adopt Germany SB double closed-loop motion control, motor with precise positioning performance in high-speed movement.
3. Surface light formed by 40 groups independent light source, each group is constant current source driver and 200-step continuous variable.
4. It is coupled with our company's self-developed automatic 2D+3D measurement software to achieve rapid detection of large quantities of work pieces at the same time with SPC data analysis capabilities in order to achieve a one-time complete the whole measurement.
5. Measurement data directly input into AutoCAD and become a full work circle; The data also can be entered in Excel and Word to conduct statistical analysis.
Guarantee:
12 months warranty. Buy with confidence!
1. Within 12 months from the date of assemble and acceptance, but not exceeding 15 months from the date if shipment.
2. During this period, we will take phone and internet teaching to users with a combinative after-sale advisory service.
3. We provide life warranty services of machine for users with cost.
1) If machine failure caused by our side, you can send back the spare parts to us and the cost by our side.
2) But if needs our technician come to customer side for training, technical service is free, except ticket and accommodation.
4. Extra warranty period: We will provider to user after-salelifelong advisory service.
5. Our company has spare parts which can be provided for the users with cost.
6. We provided users with after-sales value-added technical service by preferential price for life, such as technical upgrades and retrofit.
About Us:
We also produce: Video Measuring Machine (VMS), CMM etc. Welcome to visit our factory! ! !
|
Model |
VMU-3020 |
VMU-4030 |
VMU-5030 |
Worktable |
The Work table’s size(mm) |
600x390 |
700x490 |
800x490 |
|
The Glass table’s size(mm) |
350x250 |
450x350 |
550x350 |
|
X.Y measuring range(mm) |
300x200 |
400x300 |
500x300 |
|
Z-axis travel lift(mm) |
200(Focus) |
200(Focus) |
200(Focus) |
|
X.Y.Z-axis digital display resolution |
0.5um |
0.5um |
0.5um |
|
X.Y coordinates indicating value error |
≤1.5+L/200
(L be regarded as measuring the length unit :mm) |
|
Instrument Weight (kg) |
330 |
450 |
500 |
|
Dimension (mm) |
620x840x1020 |
720x1040x1020 |
800*1040*1020 |
Motor |
Three-axis velocity |
200mm/s |
|
Three-axis positioning accuracy |
0.001mm |
|
Imaging System |
Camera |
U.S. TEO Color 1 / 2 "CCD Camera |
|
Zoom lens |
U.S. NAVITAR coaxial optical zoom lens with a zoom lens (2 select one) |
|
Zoom lens magnification |
0.7-4.5X |
|
Video Total magnification |
20-128X |
|
Object field |
11.1-1.7mm |
|
Power |
AC220V/AC110V |
|
Power consumption |
100W |
|
Instrument Accessories |
1X Tube (standard) |
0.5X Tube (optional) |
WD |
|
Zoom lens |
0.7-4.5X |
0.7-4.5X |
|
|
Add Mirror |
video magnification |
object field |
video magnification |
object field |
|
0.5X(option) |
10X-64X |
22-3.4 |
5X-32X |
44-6.8 |
175 |
|
1.0X(standard) |
20X-128X |
11.1-1.7X |
10X-64X |
22-3.4 |
92 |
|
2.0X(option) |
40X-256X |
5.5-0.9 |
20X-128X |
11.1-1.7 |
36 |
