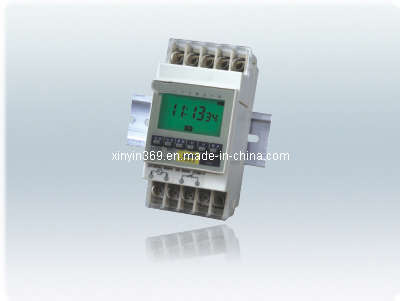

DIN Rail Type Timer Switch (DHC8A)
| Price: |
Negotiable |
| Min Order: |
1 |
Product Specifications
| Prod Model: |
DHC8A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Timer Switch |
| Theory: |
Digital |
Product Description
| CLASSIFICATION | WEEKLY PROGRAMMABLE TIMER SWITCH |
| MODEL | AHC8A | AHC8 |
| DIMENSIONS(mm) | 50X100X66 | 48X48X95 |
| FULL TIMING RANGE | Per weel or per day cycle |
| RATED VOLTAGE | AC 220V 50/60HZ 85%~110% |
| CONTACT CAPACITY | 16(10)A, 250V AC |
| CONTACT FORM | 1NO, 1NC/1NO | 1NO |
| ACCURACY | <2S/DAY |
| EXPECTANCY DISPLAY | LCD |
| MOUNTING HOLES | ---- | 45X45mm |
| MOUNTING FORM | Front-panel, DIN RAIL | Front-panel, DIN RAIL |
| LIFE | ELECTRICAL | >10^5 times |
| MECHANICAL | >10^7 times |
| TEMPERATURER | -10ºC~+40ºC |
| PROGRAMMABLE | 8 ON/OFF per day or per week |
| STORAGE BATTERY | 3 Years |
| CONSUMED POWER | 5.5VA |
![]()
![]()
![]()
