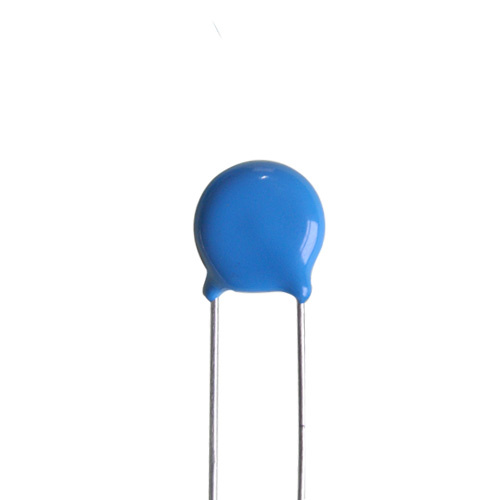

Dipped Varistor

Name: Dipped Varistor
Brand: China-Manufacturer-Directory.com
SKU: 681424802
Availability: InStock
Rating: 4.3 (105 reviews)

Supplier:	SHENZHEN TERUIXIANG ELECTRONICS CO., LTD.
Price:	Negotiable/Piece
Min Order:	10000/Piece
Quantity::
Trade Terms:	FOB,EXW,DDP

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Resistance:	Fixed Resistor
Type:	Varistor
Installation:	DIP Resistor
Function For Resistance:	Protective Resistor
Material:	Ceramic and Metal
Package Type:	Throught Hole

Product Description

Special needs can be designed according to customer requirements.

1. Classify: 5D, 7D, 10D, 14D, 20D

2. Application: Are suitably used in Voltage regulation, protection, amplitude modulation, frequency, nonlinear compensation, function transformation and automatic control for all kind of AC/DC circuits

3. Features: Small size, large flow, fast response to the rapidly rising surge voltage, high performance clamping voltage characteristics.
4. General technical data:

Normative references:
GB-T 10193-1997
GB-T 10194-1997
CQC11-471551-2012

Temperature range: -40/85
Rated Voltage: 18-182
Capacitance Tolerance: ± 10%(K)
5. Construction

Dielectric: Zinc oxide
Electrode: Silver oxide
Lead wire: Tin-plating of copper cover steel
Coating: Epoxy resin

Voltage	5D					7D					Voltage List
Voltage	D Max	T	H Max	P±1.0	d	D Max	T	H Max	P±1.0	d	180 220 270 330 390 470 560
180	7.5	4	11	5	0.6	9	4	12	5	0.6	680 820 101 121 151 181 201
220-680	7.5	5	11	5	0.6	9	5	12	5	0.6	221 241 271 301 331 361 391
820-271	7.5	5	11	5	0.6	9	5	12	5	0.6	431 471 511 561 621 681 751
301-561	7.5	6	11	5	0.6	9	6	12	5	0.6	781 821 911 102 112 182
Voltage	10D					14D					20D
Voltage	D Max	T	H Max	P±1.0	d	D Max	T	H Max	P±1.0	d	D Max	T	H Max	P±1.0	d
180	13.5	4	15.5	7.5	0.8	17	4	20.5	7.5	0.8
220-680	13.5	5	15.5	7.5	0.8	17	5	20.5	7.5	0.8
820-271	13.5	5	15.5	7.5	0.8	17	5	20.5	7.5	0.8	23	5	28	10	1
301-561	13.5	6	15.5	7.5	0.8	17	6	20.5	7.5	0.8	23	6	28	10	1
621	__	6	15.5	7.5	0.8	17	6	20.5	7.5	0.8	23	6	28	10	1
681-911	__	7	15.5	7.5	0.8	17	7	20.5	7.5	0.8	23	7	28	10	1
102-112	__	8	15.5	7.5	0.8	17	8	20.5	7.5	0.8	23	8	28	10	1
182	__	10	15.5	7.5	0.8	17	10	20.5	7.5	0.8	23	11	28	10	1
Remark:1\Voltage Tolerance: ±10% (K). 2\length of lead:25mm (Min.). 3\d±0.05.
