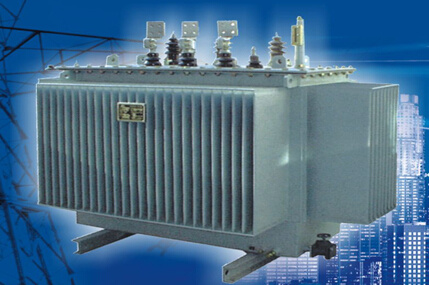

Distribution Transformer Three Phase Enclosed Distribution Transformer
Product Specifications
| Prod Model: |
S11-M. R |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
1250A |
| Impedance Voltae: |
4% |
| Tapping Range: |
+/-5% |
| Application: |
Power |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Cooling Method: |
Onaf/Onan |
| Frequency Characteristics: |
50/60Hz |
| Brand: |
Tianan |
Product Description
Product Description
General:
S11-M. R Three Phase Enclosed Distribution Transformer with wound-core is applicable to 10kV, 6kV transmission and distribution system for distribution, power supply and lighting in industrial, agricultural, mineral and petrochemical fields. Compared with series S9, 30% of no-load loss and 70% of no-load current can be decreased averagely. It is remarkable in saving energy. In addition to, its noise level is in conformity to national environmental protection policy. Therefore, it is regarded as wonderful product both in energy saving and environmental protection.
Service condition:
Normal service condition:
Elevation height less than 1000m
Environmental temperature
Max. Temperature +40 oC
Max. Daily average temperature: +30 oC
Max. Annual average temperature +20 oC
Min. Temperature -30 oC
Operation environment outdoor
Symmetry of multi-phase power source
Feature:
Core is wound by silicon strip with lower loss. Enclosed structure is also called as R-shaped core. Core limb and yoke cross-section is close to a circle. It is impact, lower no-load loss and smaller current. Due to fully enclosed transformer, isolation between oil and air keeps insulation away from moisture, which lowers insulation aging and improves service life. The product is free from untanking before operation and is free from maintenance during operation. Owing to the corrugated plate used for cooling for S11-M. R. Series, oil volume is changed by adjustment and compensation through expansion and shrinkage of corrugated plate when the temperature of oil is changed.
Ordering Notes:
1. Rated capacity
2. Phase number
3. Frequency
4. Rated voltage (L. V. &H. V. )
5. Tapping range
6. Vector group
Ningbo Tianan (Group) Co., Ltd. Was founded in 1969, is a national large
Enterprise, national key high-tech enterprise, industry key enterprises and Zhejiang provincial leading enterprise in power transmission and transforming
Industry. Under the company there are 1 R&D center, 10 specialized subsidiary
Companies, and more than 70 marketing offices. There are more than 2500 emplo--yee working in headquarter. The total asset sums up to 3.8 billion yuan (RMB).
The output value sums up to 5.0 billion yuan (RMB). Group competitiveness ranks in the first 225 in China's top 500.
Tianan Group is one of the domestic manufacturers and scientific research
Enterprises of power transmission and transforming industry featuring largest scale, most variety, full specifications, and best quality. Besides, the company owns abundant technical development strength, the international first-class production
And test equipments, efficient and flexible management mechanism, a great
Number of outstanding professional talents. "Quality is personality" is our concept. It has sufficient quality management system and quality assurance, all over the world's sales service network. All the above constructs excellent resources support system for customers.
Now the products include 126kV GIS combination apparatus, SF6 circuit breaker, 126kV&252kV power transformer, 252kV and below 252kV outdoor HV disconnecting switch and transformer, boxtype substation below 40.5kV, ring main unit
Switchgear, midmount switchgear, fixed switchgear, GIS, L. V. Switchgear, frequencyconversion switchgear, H. V. Load switch, H. V. &L. V. Circuit breaker, cable (RMU)
Branch box, fuse, current transformer (CT), dry-type & oil-immersed transformers,
High-voltage inverter speed regulation device, high-voltage static reactive power
Generator, active power filter, intelligent electric equipments, etc. The products
Are widely used in nuclear power plant, chemical plant, railway, underground,
Airport, national defense, Beijing Olympics and main national, provincial and municipal construction projects.
Tianan has already obtained "China's well-known trademarks ", "China's brand
-name products ", "National Product Exempting from Inspection ". The ISO9001 quality guarantee system, the ISO14001 environment management system and
The OHSAS18001 occupation healthy safety control system through the national authentication, "CCC", "PICC" authentication certificate, which Tianan obtained comparatively early. The products cover all over the country and abroad five continental countries. Especially, our products applied to the Shenzhou V, Shenzhou VI,
Shenzhou VII manned spacecraft and the construction of Qinghai-Tibet railway. The practice has proved Tianan's products have the outstanding performance
That can withstand the test of bad environment.
In recent years, many prizes have been awarded to Tianan, such as: National May1st Labor Prize, National Innovation-based Pilot Enterprise, National Mechanical
Industrial Management Demonstration Enterprise, National Mechanical Industry
Civilized Company, Zhejiang Province "a group of five" key business, Province Quality Control Prize and so on. Chairman of the Board Jiang Baomin is the national model labor and the outstanding entrepreneur.
The "Tianan Electric town" which covers an area of more than 600, 000 square
Meters and RMB 1.2 billion has been invested has been put to use. To the end of 2011, Tianan has put it into an integrated, intellectualized and modernized
Enterprisewith the combination of scientific research, manufacturing, management and culture as "the aircraft carrier" in power transmission and transforming
Industry.
Seeing is believing, Tianan Group sincerely welcome all new and old customers
And friends come to our company for a visit or inspection.
