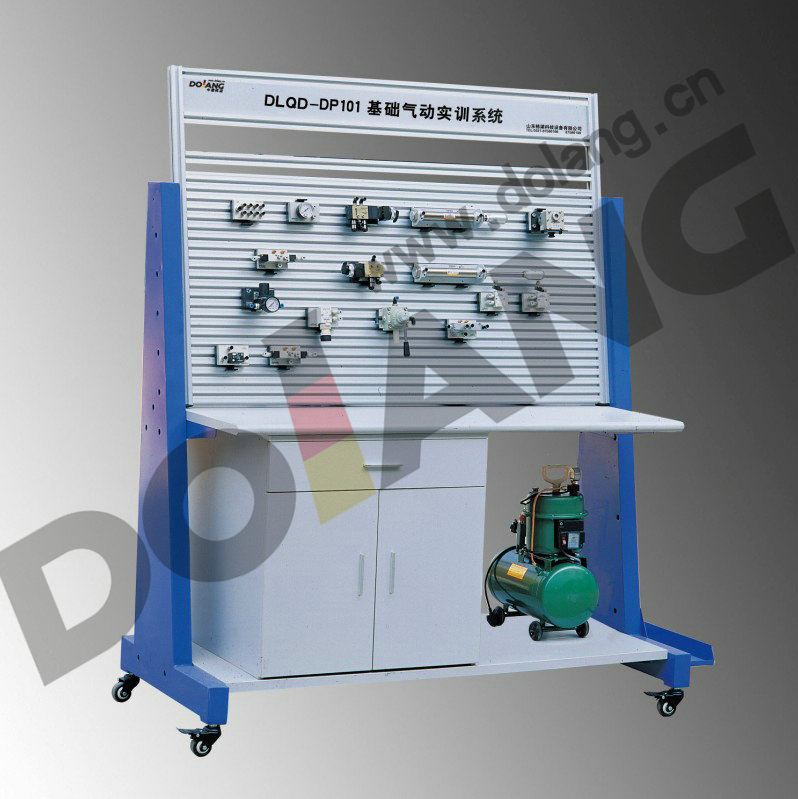

DLQD-DP101 Pressure Process Control Trainer

DLQD-DP101 Pneumatic training system
III. Technical parameter
1. DC power: input, AC220V, 50Hz /60 Hz Output: DC 24V/3A
2. Air compressor (basic equipment minimal machine): power: AC 220V±10% 50Hz motor power: 480W
3. Nominal volume: 6L normal output voltage 0.85MPa voltage, noise degree: 66dB
4. Groove interval: 25mm
5. Table top structure: 1
6. With crack slot truckle: 4
7. Dimension: 1600×750×1700mm
Basic panel: 1200×750mm

NO.	Name	Order NO.	Parameter	Unit	QTY	Graphic symbols	Photos(for reference)	Remark
1	Workbench	11007	Size:1600(L)×750(W)×1700(H)	Set	1
2	Silent air pump	21310	power supply: AC220 V power: 480W volume: 6L rated pressure: 0.85MPa noise level: 66dB	Set	1			6L
3	Manifold block	12201	Pressure range: 0 ~ 1MPa Input and Output: 8 Quick-change base	Pc	1
4	Double acting cylinder	12220	Pressure range: 0.1 ~ 1.0MPa Adapter bore: φ25 Stroke: 100mm Proof pressure: 1.5MPa Buffer type: collision avoidance type	Pc	2			φ20×100
5	Single-acting cylinder	12210	Action type: Single action Pressure range: 0.2 ~ 1.0MPa Adapter bore: φ20 Stroke: 100mm Proof pressure: 1.5MPa	Pc	1			φ20×100
6	Mushroom head button valve	12324	Mode of action: external control direct-acting Adapter bore: PT1 / 8 Pressure Range: 0 ~ 1.0MPa Proof pressure: 1.5MPa	Pc	2
7	Pan head button type manual valve	12321	Mode of action: external control direct-acting Adapter bore: PT1 / 8 Pressure Range: 0 ~ 1.0MPa Proof pressure: 1.5MPa	Pc	2
8	Handle directional control valve 5/3 way	12325	Mode of action: direct-acting manual           Adapter bore: PT1/8 pressure range : 0~0.8MPa Proof pressure: 1.5MPa                                                   Working temperature: -20 ºC ~ 70 ºC	Pc	1			Central closed
9	Handle directional control valve 5/3 way	12326	Mode of action: direct-acting manual           Adapter bore: PT1/8 pressure range : 0~0.8MPa Proof pressure: 1.5MPa	Pc	1			Central exhaust type
10	Handle type 5/2 way directional valve	12327	Mode of action: direct-acting manual           Adapter bore: PT1/8 pressure range : 0.15~0.8MPa Proof pressure: 1.5MPa                                                   Working temperature: -20 ºC ~ 70 ºC	Pc	2
11	Single air control 3/2 way	12329	Mode of action: external air control style Adapter bore: PT1/8 pressure range : 0.15~0.8MPa Proof pressure: 1.5MPa	Pc	2			NC
12	Double air control 2/2 way	12328	Mode of action: external air control style Adapter bore: PT1/8 pressure range : 0.15~0.8MPa Proof pressure: 1.5MPa Working temperature: -20 ºC ~ 70 ºC	Pc	2			NC
13	Single air control 5/2 way	12331	Mode of action: external air control style Adapter bore: PT1/8 pressure range : 0.15~0.8MPa Proof pressure: 1.5MPa	Pc	2
14	Double air control 5/2 way	12332	Mode of action: external air control style Adapter bore: PT1/8 pressure range : 0.15~0.8MPa Proof pressure: 1.5MPa	Pc	1
15	Filter, regulator and lubricator (Service unit)	12101	Adapter bore: PT1 / 4 Auto and differential pressure drain type: 0.15 ~ 0.9MPa Proof pressure: 1.5MPa Operating temperature range: -20 ºC ~ 70 ºC	Pc	1
16	Reducing pressure valve	12301	Adapter bore: PT1 / 4 Pressure range: 0.05~0.9MPa Proof pressure: 1.5MPa Operating temperature range: -20 ºC ~ 70 ºC	Pc	2
17	One-way valve	12354	Adapter bore: PT 1 / 8 Pressure range: 0.05~0.95MPa Proof pressure: 1.5MPa Operating temperature range: -20 ºC ~ 70 ºC	Pc	2
18	Pressure gauge	12304	Adapter bore: PT 1/8 Pressure range: 0~1.0MPa Operating temperature range: -20 ºC ~ 60 ºC	Pc	2
19	One-way throttle valve	12302	Adapter bore: PT 1 / 8 Pressure range: 0.05~0.95MPa Proof pressure: 1.5MPa Operating temperature range: -20 ºC ~ 70 ºC	Pc	2
20	Stroke valve 2/2 way	12342	Mode of action: external control direct-acting Adapter bore: PT 1 / 8 Pressure range: 0~0.8MPa Proof pressure: 1.5MPa Operating temperature range: -20 ºC ~ 70 ºC	Pc	2
21	Stroke valve 3/2 way	12340	Mode of action: external control direct-acting Adapter bore: PT 1 / 8 Pressure range: 0~1.0MPa Proof pressure: 1.5MPa	Pc	3
22	Time delay valve	12310	DN: 4mm Delay time: 1 ~ 30s Normally closed Operating pressure range: 0.2 ~ 1.0MPa	Pc	1
23	Sequence valve	12300	DN: 4mm Working pressure range: 0.1 ~ 0.8MPa Seal type: soft seal	Pc	1
24	Quick exhaust valve	12303	Pressure environment: high Pressure range: 0.5 ~ 1.0MPa Form: Diaphragm	Pc	1
25	AND valve(Dual pressure)	12350	Pipe Size: 1/8 Working pressure range: 0 ~ 1MPa Ambient temperature: -10 ºC ~ 80 ºC	Pc	1
26	OR valve	12351	Pipe Size: 1/8 Working pressure range: 0 ~ 1MPa Ambient temperature: -10 ºC ~ 80 ºC	Pc	1
27	Air tube	12290	Operating temperature: -40 ºC ~ 60 ºC Dimensions: Outer 4mm, inside 2.5mm	M	50			25
28	Air tube	12291	Operating temperature: -40 ºC ~ 60 ºC Dimensions: Outer 4mm, inside 2.5mm	M	20
29	Four distributor	12271	Pressure range: 0 ~ 1.0MPa Tube size: 4mm	Pc	4
30	T-distributor	12280	Pressure range: 0 ~ 1.0MPa Tube size: 4mm	Pc	4
31	APG	12273	Pressure range: 0 ~ 1.0MPa Tube size: a headφ4mm, another head φ6mm	Pc	4
32	Tool kit	12001	Raw material belt One word screwdriver Crosswise screwdriver (trachea shears (AQC-BL) GB Power Cord	Set	1
33	Manual	12002	pneumatic control theory teaching plan pneumatic control theory practice Electric - pneumatic control principle Electric - pneumatic teaching plan Electric - pneumatic Exercises	Book	1
34	Pneumatic simulation software (Optional)	40002	Production and testing pneumatic circuit Control circuit simulation	CD	1
