Dmr Digital Radio Compatible with Mototrbo

Name: Dmr Digital Radio Compatible with Mototrbo
Brand: china-manufacturer-directory.com
SKU: 724906985
Availability: InStock
Rating: 4.3 (73 reviews)

Supplier:	Quanzhou Yanton Electronics Co., Ltd.
Price:	US $ 147-150/Set
Min Order:	10/Set
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	DM-980
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Dmr Digital Radio Compatible with Mototrbo
Frequency Range:	136-174MHz or 400-480MHz
Output Power:	5W
Channel:	32
Capacity Of Battery:	2800mAh
Charger:	Us,UK,Eur Plug
OEM/ODM Order:	Yes
Offer Sample Testing:	Yes
FM Radio Function:	Yes
Ani ID:	Yes
Talk Range:	8-12km
Style:	Handheld
IP Rating:	IP54
Usage:	Amateur
Type:	Handheld
Battery Type:	Lithium Battery
Display:	With Display
Working Frequency Range:	UV Double Section
Certification:	CE

Product Description

DMR Digital Radio Compatible with MOTOTRBO

Main features

Built for dual-mode (Digital+ Analog)
32 Channels
Versatile Voice Call (Private call,group call, all call and emergency call)
Digital encryption
SMS function
AMBE3000++ Vocader
Various Analog Signaling Types(DTMF)
Large-size high-definition color display
Multi-functional navigation keypad
Recorder

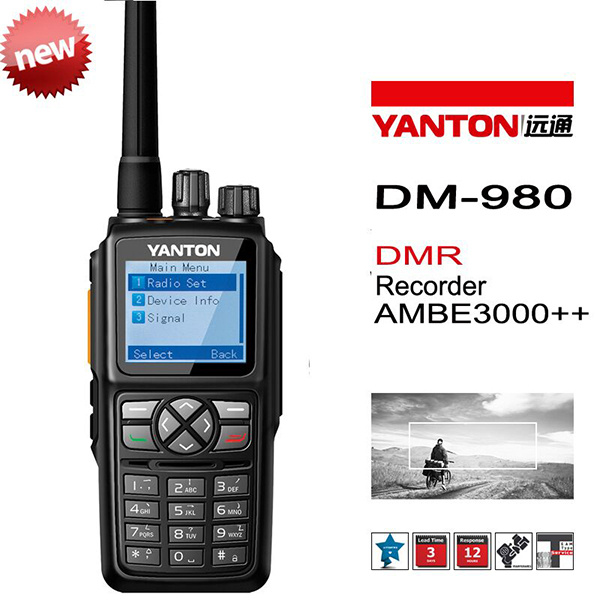

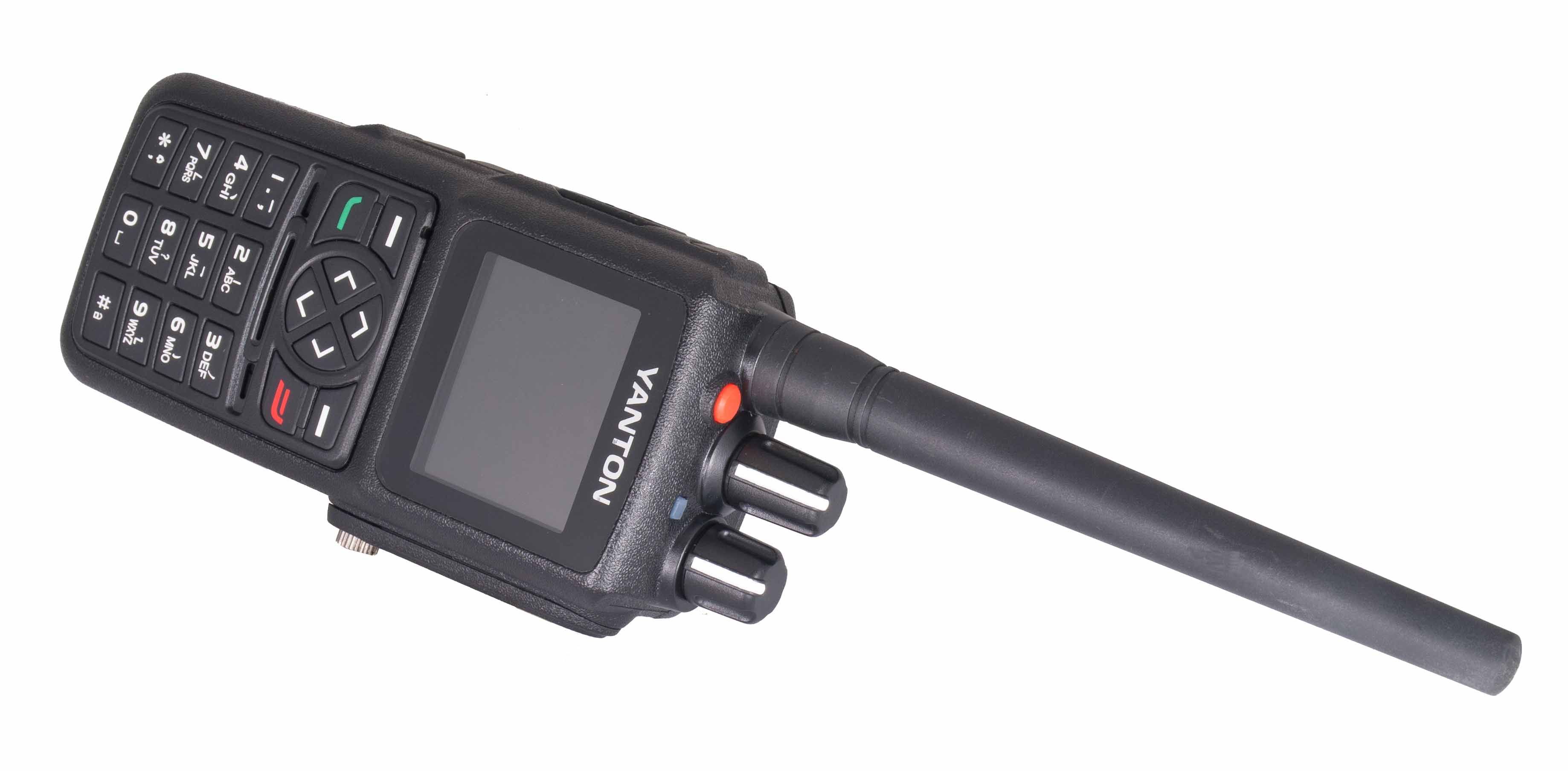

Detailed pictures:

Specification:

General

Frequency Range	VHF: 136-174MHz
Frequency Range	UHF: 350-390MHz; 400-470MHz;450-520MHz
Channel Capacity	1024	Channel Spacing	12.5kHz / 25kHz/ 20kHz
Frequency Stability	2.5PPM	Operating Temperature	-25~55ºC
Antenna Impedance	50Ω	Operating Voltage	7.4V
Dimension (H×W×D)	126×53×34mm	Weight (with antenna & battery)	300g
Zone Capacity	64(each with a maximum of 16 channel)
Battery life (5-5-90Duty Cycle, High TX power)High-capacity 2200mah Li-ion Battery	Analog: above 10.5 Hour Digital: above 14 Hours
Frequency Stability	±1.0ppm
Battery	2000mAh Li-Poly/Ni-MH Battery 2500mAh Li-Poly/Ni-MH Battery (optional)
LCD Display	1.8TFT

Transmitter

RF Power (H/L)	UHF:4W/1W; VHF:5W/1W
Modulation Type	16kΦF3E / 8kΦF3E	Modulation Limiting	5KHz /4KHz /2.5KHz
EM Distortion	≤5%	Residual FM	-45dB / -40dB
Adjacent Channel Power	-70dB / -60dB	Spurious and Harmonics	≤-36dBm
Audio Distortion	≤3%	Conducted/Radiated Emission	-36dBm<1GHz/30dBm>1GHz 1GHz
Digital Vocoder type	AMBE3000+ +	Digital	ETSI-TS102 361-1.-2.-3
FM Modulation	11KΦF3E 12.5KHz/14KΦF3E 20KHz/16KΦF3E 25KHz
4FSK Digital Modulation	12.5KHz Data Only:7K60FXD/12.5KHz Data & voice:7K60FXW
FM noise	40dB 12.5KHz/43dB 20KHz/45dB 25KHz

Receiver

Sensitivity(Analog)	0.22uV / 0.25uV	Adjacent Channel Selectivity	70dB / 60dB
Sensitivity(Digital)	0.22uV/BER5%	Rated Audio Distortion	≤3%
Intermediation Reject Radio	65dB	Spurious Response Reject Ratio	70dB
S / N	45dB /40dB	Rated Audio Power Output	1.5W
Audio Response	+1~ -3dB	Conducted Spurious Emission	<-57dBm
Sensitivity
Intermodulation TIA-603 ETSI	≥70Db 12.5/20/25KHz
Selectivity TIA-603 ETSI	≥60Db 12.5KHz/70Db 20&25KHz

Quanzhou YANTON Electronics Co., Ltd. Has been a professional two way radio manufacturer integrating in R&D, Production, sales and service for Seven years. Our company has created and owned its famous brands such as YANTON and LSENG.

Our company has introduced advanced equipments in the world such as American HP8921, Germany Rohde & Schwarz SMC-50. We own standard production workshop, product laboratory and R&D room. We offer the cost effective products, and help our customers win the competitive advantage in the price and quality in the market.

Our company has 10 people of QC staff, 15 people of R&D staff, and 5 people of IQC staff. They have more than 5 years of work experience. We focus on new product innovation and quality control, and we invest 40% of profit in new product development. We have got a lot of OEM/ODM orders because of product innovation and efficiency.

We strictly implement ISO9001 quality management system, and we strictly check from raw material purchase, production and finished product testing, which can ensure high stability and consistency of products. Our products has been awarded "radio transmitting equipment and model approval", and also has got FCC, CE, SIRIM Certification. We have agents in many city and has exported to Malaysia, Vietnam, Middle East, Europe, USA and other countries. We have obtained high reputation from our users, distributors, agents for our good products and good sale service.
