Product Specifications
| Prod Model: |
CB-CJ40-00-48V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

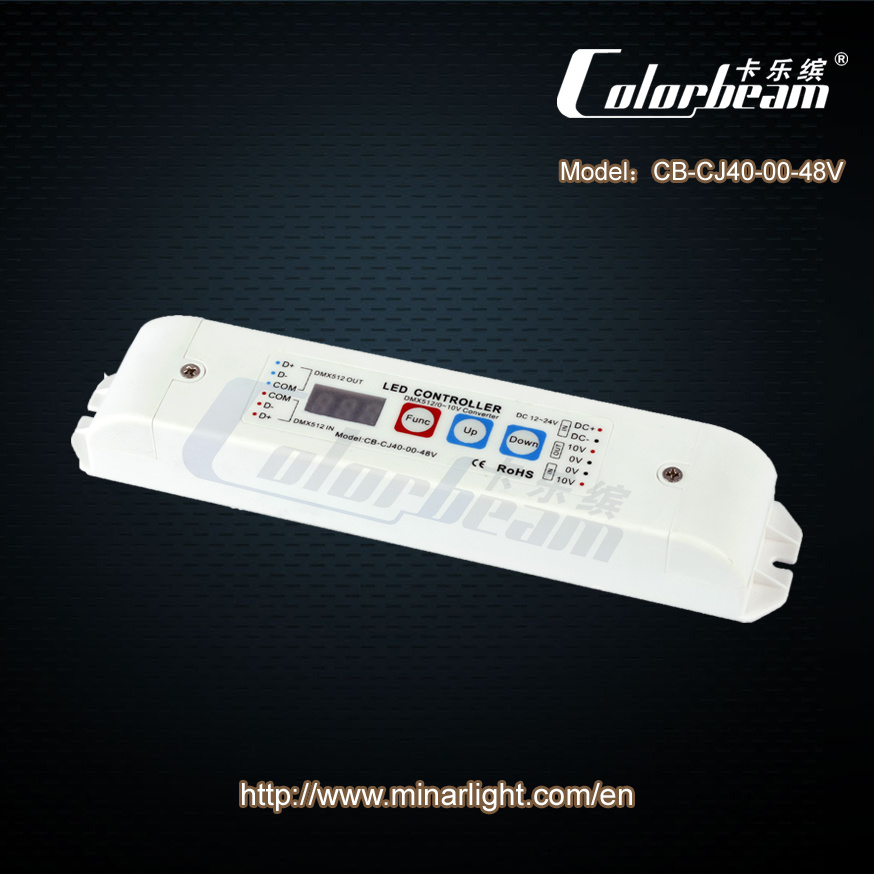

Signal Converter can convert the signal between DMX512 and 0-10V easily. It can realize 2 functions:
1. When it is set as DMX signal, DMX512 Out sends the received DMX512 signal, 0-10V OUT exports relative DMX address
2. When it is set as 0-10V signal, DMX512 OUT exports to the address (total 512 address) after converting to 0-10V signal, 0-10V OUT sends 0-10V signal.
Signal converter can easily convert the signals between DMX512 and 0-10V, so that one project can control two different signal at the same time.
|
Model |
Inout Voltage |
Input Signal |
Outpur Signak |
Size (mm) |
|
CB-CJ40-00-48V |
DC12V-48V |
DMX512/0-10V |
DMX512/0-10V |
L211*W43*H30 (Plastic) |
Minar Illumination Electronic Limited was established in May 2002, we are a high-technology enterprise which apply ourselves to the development, manufacture and sales of fiber optic lighting & LED lighting and LED controller series products.
There are mainly several products series as follows:
*Fiber Optic Lighting series: Fiber Optic Kits, Fiber optic chandelier, Light engine, PMMA plastic fiber, Multi string end fiber, Multi string side fiber, Side spot light fiber, Fiber optic end piece
*Controller Series: LED dimming driver, DMX controller, DMX512 signal amplifier
*LED Lighting Series: LED cabinet, LED flood light, LED wall washer, LED underwater light, LED underground light, LED down light, LED line light, LED spot light, LEDbulb, LED
