Product Specifications
| Prod Model: |
DLQC-FDJ-CH001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1500*1000*1800mm |
| Type: |
Teaching Model |
| Laser Model: |
Automotive Car Charging System Teaching Board |
| Usage: |
Training |
Product Description
Teach board can demonstrate process and principle of vehicle charging system and the steps and methods of generator disassembly
Specifications
On the electronic controlled engine structure, working principle, fault diagnosis, fault setting and exclusion assessment.

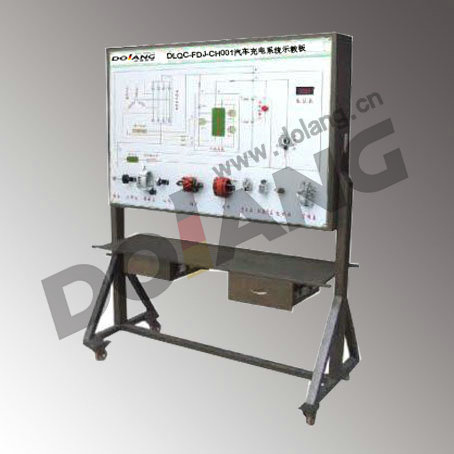

Auto Charging System Teaching Board DLQC-FDJ-CH001
Introduction
The teaching board adoptautomotive charging physical system. All components adopt original parts, QC strictly testified, in accordance with Production Quality Management standard of ISO9001: 2008, suit for automotive charging system principle and practical training in the medium and senior vocational schools and car training institutions, satisfy the requirement of teaching training project on the automotive charging system structure, working principle, fault diagnosis, fault setting etc.
Basic Configuration
Generator assembly, generator stator, generator rotor, battery, regulator, relay and fuse box, magnetic claw, motors, ammeter, training panel, ignition switch, ignition key, leakage protector, mobile bench and universal casters, general power switch, instruction manual and user guide book etc.
Features
1. Teach board can demonstrate process and principle of vehicle charging system and the steps and methods of generator disassembly.
2. Teach color engraved with colorful charging system schematics, equipped with detection terminal to detect the pin and various electrical components signal such as electrical resistance, voltage, current, frequency etc, strengthen the student hand-on ability.
3. Teach board has engraved schematics for students better understanding the circuit control principle.
4. Teach board equipped with Leakage poweroff protection systems to keep safe
5. Teach board can setup fault and assessment (please refer to the detailed fault setting and assessment system introduction)
Training Content
1. Charging system sctructure and composition training
2. Charging system Schematics analysis trainging
3. Charging system troubleshooting and confirm training
4. Charging system fault setting and exclusion training
5. Charging system practical operation and theoretical exam training
Technique Features
1. Support frame adopt imported panit special for car, high temperature coating, with anti-corrosion function
2. Support frame material is welded with quality square tube(40*60*3mm)
3. Size: 1300mm× 580mm× 1780mm
1. Factory:
Our factory located in Pioneering park overseas Chinese Scholars Jinan city, Shandong Province.
We have very strong technical teams with more than 40 engineers and experienced workers. Our products have exported for more than 7 years.
We are in a good position to offer series of training set as follows:
1) Electrical technology Know-how Training Set
2) Innovative E-skills&Technology Training Series
3) MCU Technology Training Series
4) Machine Tools Electrical Control Training Series
5) Machine Tools Electrical Control Training Series(Model-type)
6) CNC Machine Tools Maintainance Training Series(Model-type)
7) Building Automatic Training Series
8) PC Training Series
9) Innovative industrial Automatic Control Technology Training Series
10) Pneumatic Training Series
11) Hydraulic Training Series
12) Sensor Training Series
13) Motor Training Series
14) Mechatronic Training Series
15) MPS Training Series
16) FMS Training Series
17) Mechanical Training Series
18) Engrave machine series
19) Automobile training series
20) Process control training equipment
Packaging and Delivery Details:
Packaging Detail:
? Packaging for training kit: plastic package + carton + plywood pallets
? Packaging for training equipment: plastic package + plywood pallet
Delivery Detail: 20 to 50 days after Received advanced payment.
After-sales Service And Training for Foreign User
? For our exported equipments, the Warranty is one year, within one year, if there is any problem for spare parts(except damage by man-made) We can supply and replace free of charge. And if after one year, we also supply the service. The difference is user need to pay it.
? We dispatch our professional and experienced engineer to install equipments and make training for the end users
Question
Q1:What factors affect the price?
A. The quality of components: All the components we use are real industrial components which under EURO standard.
B. Technic: we pay much attention on the technics and details. Our products meet the requirement of Germany standard
C. Quantity: The price is up to the quantity of each item.
Q2: All equipments are designed by Dolang?
A. Yes. All our equipments are designed by ourselves.
B. The design department including: Electric research design department, Electrical research design department, Mechanical research and design department, Software research design department, Pilot test department and technical documents department.
Q3:Does Dolang have after sales service and training service?
A. After sale service: All our products have one year maintance from the date of pick up except artificial damage.
B. Training: Customer may ask our engineer to training them in their company or come to Dolang for training
Shandong Dolang Technology Equipment Co., Ltd. Was founded as a partner of Shandong university in 1998. Thanks for the customers, professional engineers and all our skilled workers, Dolang has been grown up to a professional and powerful global enterprise with 16 years dedicated experience on the didactic equipment. As a member of Worlddidac Association, our products are made under the requirement of ISO9001, ISO24001 and OHSMS28001.
We are professional on manufacturer electrical & electronic, PLC, fluid mechanical, hydraulic, pneumatic, process control, mechatronics, automation, CIM training and automobile training systems.
Besides the physical training system, Dolang provide solutions for customer such as system thinking, E-learning and so on.
Our products are involved in various education equipment industry fields. We serve in 100 universities and more than 300 vocational colleges in China. With self-operation export & import license, our products have being exported to France, Russia, Mongolia, Tunisia, Mexico, Brazil, Peru, Indonesia, Iraq, Cyprus, Vietnam, Kazakhstan etc.
