Price: | US $ 8500/Set |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 1/Set |
Pay Type: | L/C,T/T,Paypal,Money Gram,Western Union |
Machine's features:
1. This machine use 2 different tools for carving different designs on wood, no need to change tools manually.
2. Vacuum inhaling table, largely improved working efficiency.
3. Industry steel square tube structure lathe.
4 High quality X, Y, Z ball screw or high accuracy gear rack transmission system, imported linear square rails.
5 X, Y, Z high quality dust cover, effectively prevent dust come into the inside of machine.
6 Professional CNC control system, compatible with many CAM software such as
Type3, artcam, mastercam, UG, pro-e etc.
7. It is widely used in relief carving wood mural, antique furniture, wooden crafts, ornamental engraving, overlaid wood composite door, 3d light box making, aluminium-plastic panel, etc.
Special configuration:
larger models, servo motor and driver, imported spindles etc. are optional

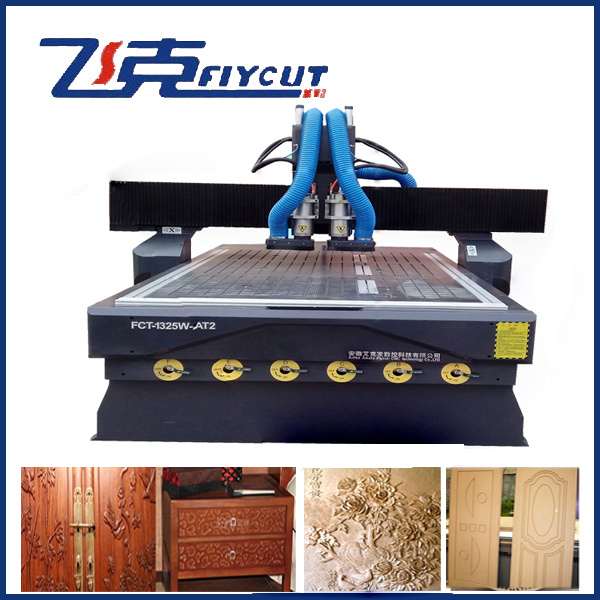

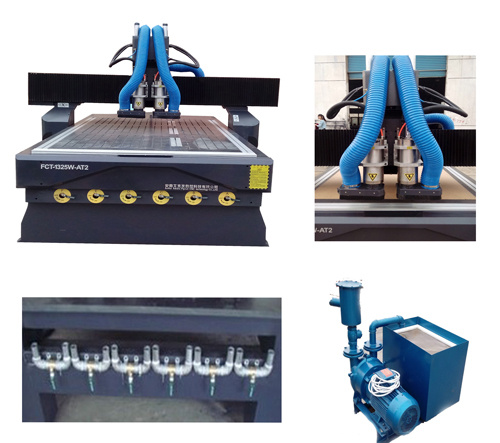

Pictures and samples:
Our service:
1. The machine comes with 1 year warranty;
when it exceed warranty period, if the machine's part need to be changed, we can sell to you at our cost price
2. Our technican could provide remote guide online if you need.
3. We are manufacturers specialized in CNC engraving and cutting machine, welcome to customize or distribute our machines.
If you have any questions or requirement, feel free to contact us, it's our honour to serve you.
Technical parameters | |
Model | FCT-1325W-AT2 |
Table size | 1600×2640mm |
Working size | 1300×2500×200mm |
Spindle power | water cooling 5.5kw x 2 |
Z axis structure | Independent Z axis,3 air cylinders,high accuracy ball screw |
Spindle rotate | 6000-24000rpm |
Motor driver | Stepper motor(Chinese servo motor or imported servo motor is optional) |
Tool diameter | 3.175, 4, 6, 12.7mm |
Machine structure | Industry square tube structure |
Transmission | Accuracy gear rack |
XYZ rails | Imported square rails |
Mechanical accuracy | Less than 0.03/300mm |
Data transmission | PC connection directly |
Support format | G code or HPGL |
Engraving speed | 12000mm/min |
Working voltage | AC220V/50Hz or 380V/50Hz |
Net weight | about 2000kg |
Prod Model: | FCT-1325W-AT2 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Warranty: | 1 Year |
Change Tool: | No Need Change Manually |
Controlling Mode: | CNC |
Feed Mode: | Mechanical |
Spindle Layout: | Horizontal |
Certification: | ISO |
Spindle Number: | 2 |
