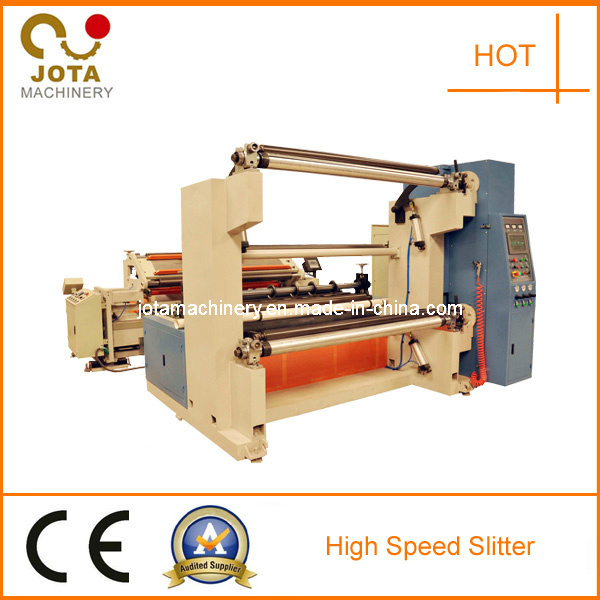

Double Motor Control Corrugated Paper Cutting Machinery

Product Specifications

Prod Model:	JT-SLT-1300C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine Type:	Paper Roll Slitting and Rewinding Machine
PLC:	Emerson
Touch Screen:	High Tech From Taiwan
Max. Unwinding Diameter:	1500mm
EPC:	1 Set From Taiwan
Auto Tension:	3 Sets, Inplant The PLC
Speed:	300m/Min
Nverter Motor Number:	2 PCS, Yaskawa Brand
Unwinding Type:	Magnetic Brake for Unwinding Tension
Cutting Type:	2 Types, Razor and Disc Blade
Work Method:	Round Knife Cutting
Type:	High-Speed Slitting Machine

Product Description

Double Motor Control Corrugated Paper Cutting Machinery

Specifications:
1. It adopts Emerson PLC control system and meter counter that all the working parameters can be displayed on the control panel.
2. It adopts 10" touch screen, convenient reading.
3. It adopts Yaskawa frequency inverter which is from Japan to make working machine more stable.
4. It adopts Fukuta motor, which is from Taiwan.
5. It adopts three sets fully automatic tension control.

Specifications
Category	Automatic Shaftless & Coreless Paper Slitter Machine
Application Material	Regular Papers,Kraft Paper, Bond Paper, Paper Board,Non-woven Cloth, Film, Aluminum Foil, Plastic Sheet etc.
Applicable Width of Axial / Material	600mm ~ 2800mm /23.6-110" (Customizable)
Min. Width of Slitting	10mm (Depending on kinds of source material are applied)
Max.Machine Speed	300m/min (Depending on kinds of material applied)
Max.Unwinding Diameter	1500mm /59"
Max.Rewinding Diameter	1500mm(Customizable)
Tolerance of Slitting Width	±0.15mm(Depending on kinds of material applied)
Max Applicable Weight of Material	4000 Kg (Customizable)
Rated Frequency	50Hz & 60Hz
Rated Voltage	380V,415V, 440V, 460V, 480V,or Dual-Voltage (Customizable)
Unwinding/Rewinding Shaft	Shaftless unwinder & Pneumatic Air Expanding Shaft
Overall Dimensions	2000 x 2500 x 1500mm
Weight	4000kg



Environmental Restriction
Location	Indoor. The product should be installed   on flat and solid foundation.
Voltage Regulation	±10%
Frequency Regulation	±5%
Ambient Temperature	-5°C~40°C
Altitude	Not exceed 1000 Meters
Relative Humidity	Less than 85% RH (Non-Condensation)



Components
Unwinding Section	-Shaftless unwinder,the cam size is 3''&6''  -Hydraulic automatic lift-up loading system -Tech Mach analog EPC from USA -RE Brake from Italy -Tech Mach Floating roller constant tension from USA -Tech Mach Sensor from USA -Self expandable chuck -Guide & Slide AMT from Taiwan
Slitting Section	-Choices of Razor cutter or Disc cutter -Disc Cutter Assembly adopt the cam self-locking -Cutter with adjustable and moveable blade base. -Meter counter
Rewinding Section	-3"air expanding rewinding corelessshafts -Center Rewinding technology -Pressure roller -Electromagnetic Clutch from Taiwan
Controlling Section	-Siemens PLC & HMI from Germany -All the parametersare displayed on the monitor -Low voltage electrical appliances all from Schneider
Trimmed Waste Edge	-Edge Waste Blower with Expulsion Tube
Optional	-Friction Differential Shaft for rewinding. -Safety guard for the slitting device. -Emergency Switches on the 4 corner of machine.



Configuration
Name	Model	Pieces	Remark
Computer System	PLC(Siemens)+4DA+7''Touch Screen(Taiwan)+ Synchronic(Korea)	1Set	Siemens+ Weinview
Motor		2 Sets	FUKUTA From Taiwan
Frequency Inverter		2 Sets	YASKAWA From Japan
Upper/Lower Round Knife		10 Sets	Jota Machinery
Brake			RE Brake from Italy
Sensor		2 Sets	Tech Mach Sensor from USA
Tension control		3 Sets	Tech Mach Floating roller constant tension from USA
EPC		1 Set	Tech Mach analog from USA
Chuck	Self expandable chuck	1 Set	From Taiwan
Photocell Tracking		2 Set	SIKC From Germany
Magnetic Clutch		2 Sets	From Taiwan
Low Voltage Electrical Switch			SCHNEIDER
Blower		1 Set	China
