Double-Mould Mechanical Type Tyre Vulcanizing Machine

Name: Double-Mould Mechanical Type Tyre Vulcanizing Machine
Brand: China-Manufacturer-Directory.com
SKU: 687599692
Availability: InStock
Rating: 4.5 (140 reviews)

Supplier:	Qingdao Desiree Group Rubber Machinery Co., Ltd.
Price:	US $ 145000-195000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	LL-B1220 x 2(48")
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name/Condition:	Tyre Vulcanizing Machine/New
Mould Quantity:	2
Steam Dome Internal Diameter:	1220mm
Max. Closing Force:	1920kn X 2
Mould Height:	305-505mm
Applicable Bead Diameter:	13"~20"
Temperature Transmitter:	Jumo
Pressure Transmitter:	Jumo
Warranty:	One Year After Commissioning, 1 Year
Type:	Tire Machinery
Certification:	CE, ISO

Product Description

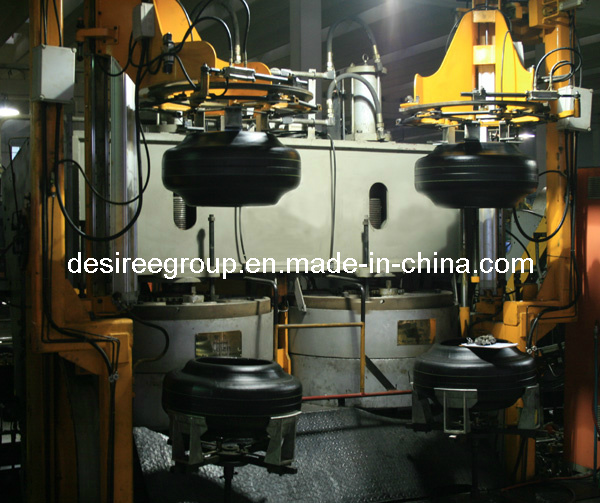

Double-Mould Mechanical Type Tyre Vulcanizing Machine
Function:
1. For curing of semi-radial passenger car/light truck tires.
2. For curing of nylon bias tires with one set of additional post cure inflator.

Features:
1. The machine is multi-link type.
2. Mainly consists of main machine, center mechanism, mechanic claw, steam dome, segmented mould controller, tire stripping machine, unloader, cooling roll way, driving water piping, steam piping, force measure device, lubricating system, electrical control syetem, compressed air piping, safety device, top link centering device,etc..
3. Center mechanism type: B type.

4. Top link moving type: Tilting back

5. Steam room: hot platen type

FOR PIPING, WE CAN DESIGN AS PER YOUR REQUIREMENTS.

Advantage:
1. High running stability.
2. Long using life under suitable maintance.

Manufacturing Process:

New tire curing Line manufactured by us recently:

(Tilt back type tire curing press 63.5")

Certificate Show:

Our Services:

1. One year warranty after commissioning .
2. Engineers available to service machinery overseas.

3. If there is problem, we will give feedback within 24hours.

If you have any question about our products, please feel free to contact with me.

Warmly welcome to visit our factory!

Tire Curing Press Model No.	LL-B1525×2 (63.5")	LL-B1640×2 (65.5")	LL-B1310×2 (55")	LL-B1220×2 (48")	LL-B1145×2 (45")	LL-B1050×2 (42")
Steam dome specifiction(mm)	1525	1640	1310	1220	1145	1050
Max mould closing force (kN)	4220	4500	2890	1920	1720	1320
Mould height(mm)	254-635	254-635	245-445	305-505	230-455	180-300
Main motor power(kW)	16	16	13	11	11	11
Apply bead specification	19''-24''	19''-24.5''	16''-20''	13''-20''	12''-17.5''	12''-16''
Notes	Works for the vulcanization of TBR , PCR tires or bias tires.
	If it works for curing the bias tires, the press will match with post curing inflator.
	If works for curing the radial tires, the press will match with segmented mould controller.
