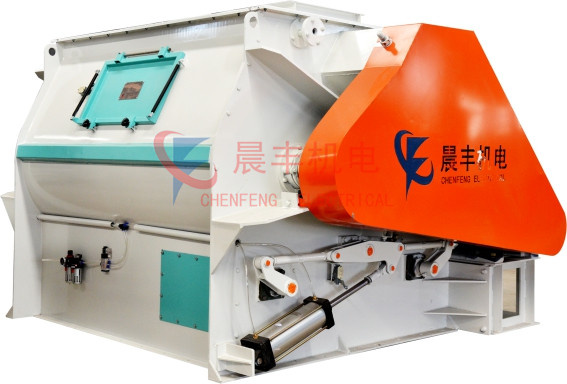

SSHJ-s series double shaft Mixer for feed
Animal Feed Mixer Before Pellet Mill/ grain powder mixing machine
Main futures
Apply to the mixing of powder materials in the industries of premix feed, livestock and poultry feed, aquatic feed, additives, food, chemical and pharmaceutical.
Short mixing time and high mixing uniformity.
Low-speed running, high-efficiency mixing, soft action, many kinds of liquid can be added.
Patented double-opened discharging control device, no leakage, discharging swiftly and no residue.
High uniformity, CV ≤ 5%, even up to 3%.
Low residual material no more than 6‰; Good door sealing, no material leakage phenomena.
1. The innovative double reducer features smooth driving, less power consumption and adjustable speed.
2. Improved opening shaft and connection rod, opening angle over 90°, tightly locked door.
3. The discharge door has been improved to increase the tightness.
4. The unique air returning system ensures smooth air flow during the feeding process.
5. The advanced liquid adding and spraying system can add many kinds of liquids, solids with great accuracy.
Parameters
Model | Volume | Amount per Batch | Time per Batch | Mixing Homogeneity (CV≤%) | Power (kw) |
|
|
| SSHJ-S 2 | 2 m 3 | 1000 kg | 30-120 s | 3-5 | 15(18.5) |
| SSHJ-S 4 | 4 m 3 | 2000 kg | 30-120 s | 3-5 | 30(37) |
| SSHJ-S 6 | 6 m 3 | 3000 kg | 30-120 s | 3-5 | 37(45) |
Professional Design: We are leading manufacturer in China, we have professional design team, we specialize in feed processing machinery, food processing machinery and biomass energy pelleting equipments. The technology flow is followed the trend of latest industry development and the best plan is designed according to customer's requirements and local conditions. The general layout is reasonable, economical with detailed consideration from customer side.
Professional Manufacture: All machines are stable, safety, reliable; The plant is with high automation level, reducing the labor intensity of workers; The automatic control for process of production through advanced centralized control system guarantees lowest operational cost.
Professional Installation: We have professional installation team with skillful experience for many years. They are careful and responsible.
Environment Friendly: Dust, noise and drainage of waste water meet environmental requirements.
Turn-Key Projects And Machines
Livestock & Poultry Feed Project
Chicken Feed Project
Swine Feed Project
Cattle, Sheep& Horse Feed Project
Mouse& Bird Feed Project
Aqua Feed Project
Fish Feed Project
Shrimp Feed Project
Special Aqua Feed Project
Concentrate Feed Project
Premix Feed Project
Porket Feed Project
Straw Feed Project
Pasture Feed Project
Wood Pellet Project
Spice Processing Project
Herbaceous Plant Processing Project
Hops Pelleting Project
Chrysanthemum Pelleting Project
Biological Fertilizer, Organic Fertilizer,
Compound Fertilizer Project
Steel Structure Production Building Project
Steel Structure Silo project
Material Storage, Drying project
The turnkey project service
1. The general layout design of the plant
2. The electrical design of the powder, pellet workshop
3. The main design of the pellet workshop
4. The main workshop of all machinery and equipment (including frame, wind pipe, feeding pipe, bin, compressed air system and other non-standard parts) production, installation and commissioning
5. Design and installation, commissioning of all electrical control system
6. On-site training operation repair personnel
7. Long-term supply of spare parts
8. Long-term provision of technical information and business consulting.
