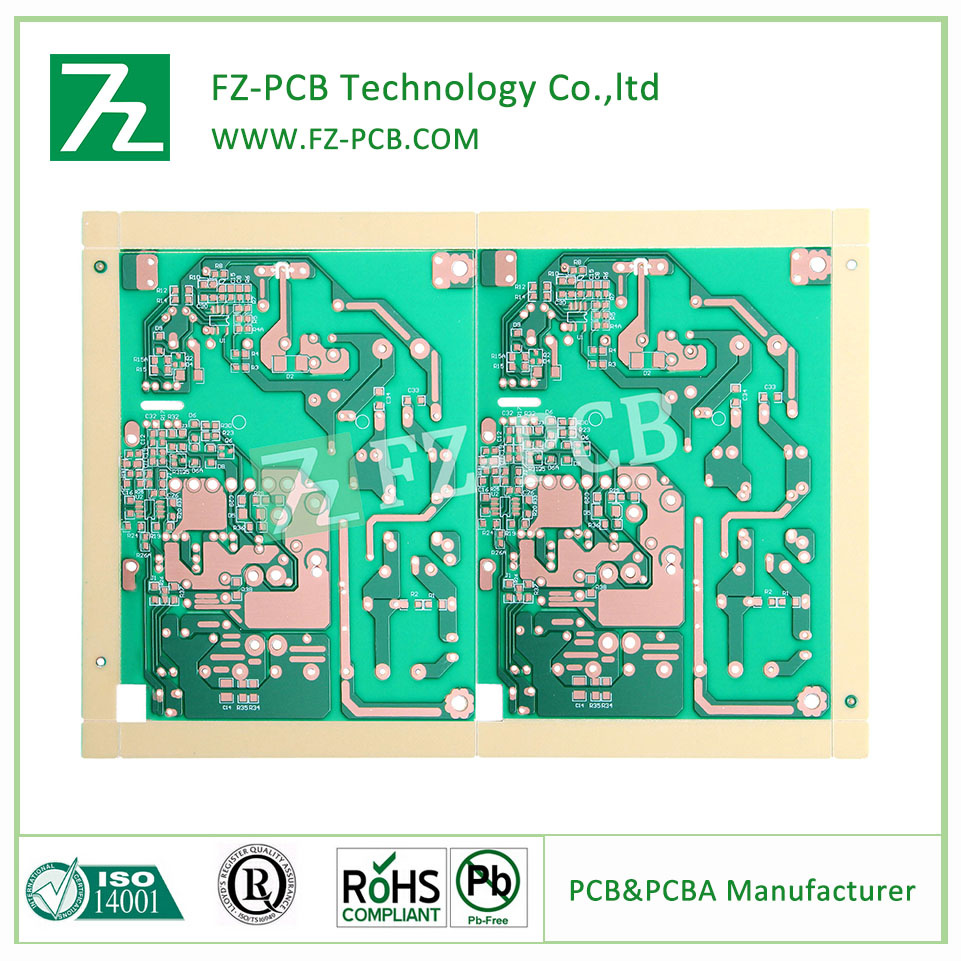

Double Side Enig Printed Circuit PCB Board

Name: Double Side Enig Printed Circuit PCB Board
Brand: China-Manufacturer-Directory.com
SKU: 737493865
Availability: InStock
Rating: 4.9 (45 reviews)

Supplier:	FZ-PCB TECHNOLOGY CO., LIMITED
Price:	US $ 0.1piece
Min Order:	1piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	pcb, pcba, pcb board, circuit board
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Surface Finish:	Immersion Silver
Board Thickness:	0.2~3.2mm
Copper Thickness:	0.3oz~6oz
Type:	Flexible Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

Prototypes to large batch production, help review gerber, design stackup,
High technology 1~16layers PCBs from 0.2~3.2mm thickness with 0.3~4.0oz copper thickness
FR4, FR4(TG130,150,170), FR1,CEM-1, CEM3, Aluminum based, HF (Rogers,Teflon)
HDI and Sequential Lamination
Flexible, Flex-rigid and Rigid PCBs
RoHS/UL, ISO9001:2000 & ISO/TS16949:2002
Turnover USD$60 Million (2012-2013)
Established in 2002
Privately owned company
32000 Square meter Facility
Nearly 1000 Employees
62500 Square meter Monthly output

What will you get from FZ-PCB
Reliable and stable quality with more than 12 years pcb manufacturing experience.
Quick response & 24 hours available service.
Professional sales service & advice.
Fulfillment of our promises, NO lies.
Protecting your Intellectual property. All our staff of trained professionals are working under a strict confidential contract.

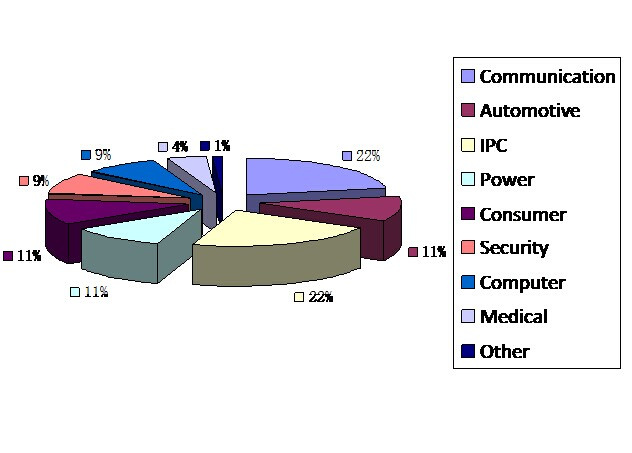

Market Segment

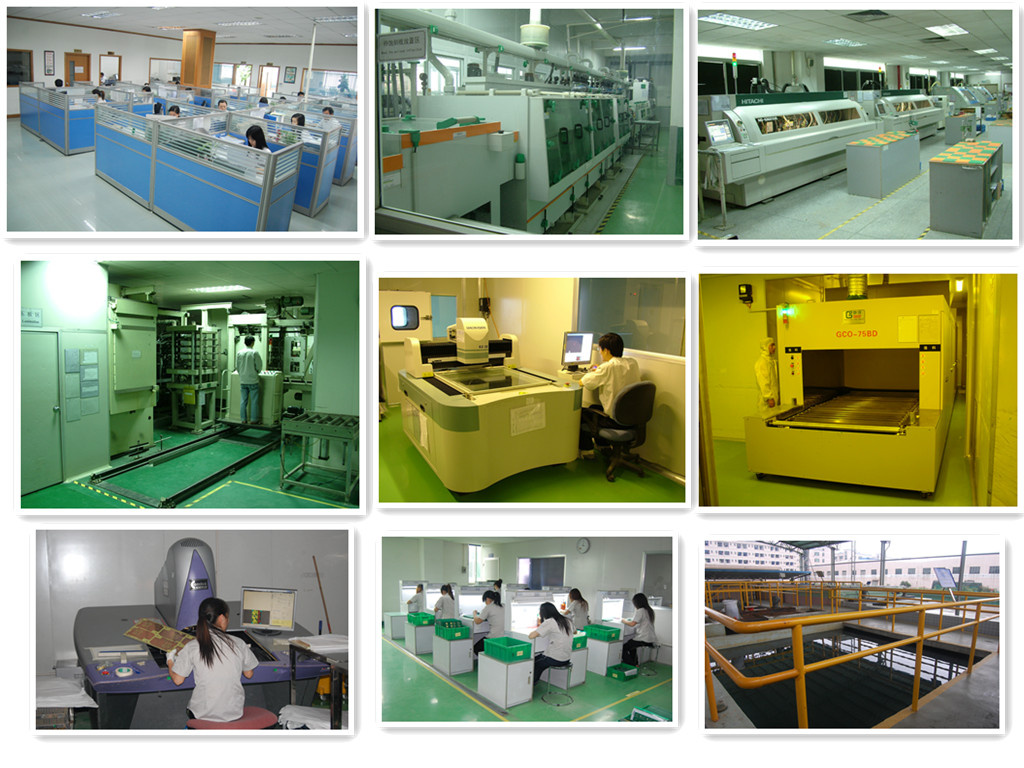

Factory glance

Delivery Timescales
Sample
Single layer 4days
Double Side 4-6days
4 ~ 6 layers 8-10days
Above 8 layers 10-14days
Aluminum PCB 7-10days
Flexible PCB 10-14days
* Urgent Routing sample could be pushed 2-3 days earlier with premium.

Mass Production
Single layer standard   10 days
Double Side standard 12days
4~6 layers standard 15days
above 8 layers standard 18days
Aluminum PCB standard 15days
Flexible PCB standard 18days
l Material availability dependant.

Package & Shipping Method:
1. Vacuum package with silica gel, Carton box with packing belt.
2. By DHL, UPS, FedEx, TNT
3. By EMS (Usually for Russia Clients)
4. By sea for mass quantity according to customer's requirement

Payment method
1.     T/T
2.     Paypal
3.     Western Union

Files	Gerber, Protel, Powerpcb, Autocad, Orcad, etc
Material	FR-4, Hi-Tg FR-4, Lead free Materials (RoHS Compliant) , FR1, CEM-3, CEM-1, Aluminium, High frequency Material (Rogers, Teflon, Taconic), Polymide.
Layer No.	1 - 16 Layers
Board thickness	0.0075"(0.2mm)-0.125"(3.2mm)
Board Thickness Tolerance	±10%
Copper thickness	0.3OZ - 4OZ
Impedance Control	±10%
Warp and Twist	≤0.075%
Peel Strength	≥61B/in(≥107g/mm)
Min Trace Width (a)	3mil
Min Space Width (b)	3mil
Min Annular Ring	0.004"(0.1mm)
SMD Pitch (a)	0.012"(0.3mm)
pcb with green solder mask and LF-FREE surface finishing BGA Pitch (b)	0.027"(0.675mm)
Register tolerance	0.05mm
Min Solder Mask Dam (a)	0.005"(0.125mm)
Solder mask Clearance (b)	0.005"(0.125mm)
Min SMT Pad spacing (c)	0.004"(0.1mm)
Solder Mask Thickness	0.0007"(0.018mm)
Hole size	0.008"(0.20mm)-- 0.257"(6.5mm)
Hole Size Tol (+/-)	±0.003"(±0.0762mm)
Max PTH Aspect Ratio	10:1
Hole Registration	0.003"(0.075mm)
HASL	2.5um
Lead free HASL	2.5um
Immersion Gold	Nickel 3-7um Au:1-3u''
OSP	0.2-0.5um
Panel Outline Tol (+/-)	±0.004''(±0.1mm)
Beveling	30°45°
V-cut	15° 30° 45° 60°
Surface finish	HAL, HASL Lead Free, Immersion gold, Gold plating, Gold finger, immersion silver, immersion Tin, OSP, Carbon ink,
Certificate	ROHS ISO9001 TS16949 SGS UL
Special requirements	Buried&blind vias, Impedance control, via plug, BGA soldering and gold finger

FZ-PCB is one of Asia' S leading full-service PCB to PCBA solution providers. Established in the year 2002, mainly provide the high-level quality PCB board and PCB assembly service to our customer which are the leading companies in the telecommunication, LED, medical treatment, aviation, instrumentation, micro-electronics and automated-control area. Our achievements are recognized through our customers' Success, industry and customer recognition, and continuous quality improvement.
