Quanzhou Yanton Electronics Co., Ltd. >> Dpmr Radio with IP67 Waterproof (YANTON DP-100)

Dpmr Radio with IP67 Waterproof (YANTON DP-100)

Name: Dpmr Radio with IP67 Waterproof (YANTON DP-100)
Brand: china-manufacturer-directory.com
SKU: 724831895
Availability: InStock
Rating: 5 (123 reviews)

Supplier:	Quanzhou Yanton Electronics Co., Ltd.
Price:	US $ 47-55/Set
Min Order:	10/Set
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	DP-100 DPMR radio
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Dpmr Radio
Waterproof Rate:	IP67
Output Power:	5W
Capacity Of Battery:	1400mAh
Charger:	USA, Eur, England, Ect
Channel:	16
Frequency Range:	136-174MHz/400-480MHz
Voice Encryption:	Yes
OEM/ODM Order:	Yes
Offer Sample Testing:	Yes
Talk Range:	8km Max
Style:	Handheld
Usage:	Army
Battery Type:	Lithium Battery

Product Description

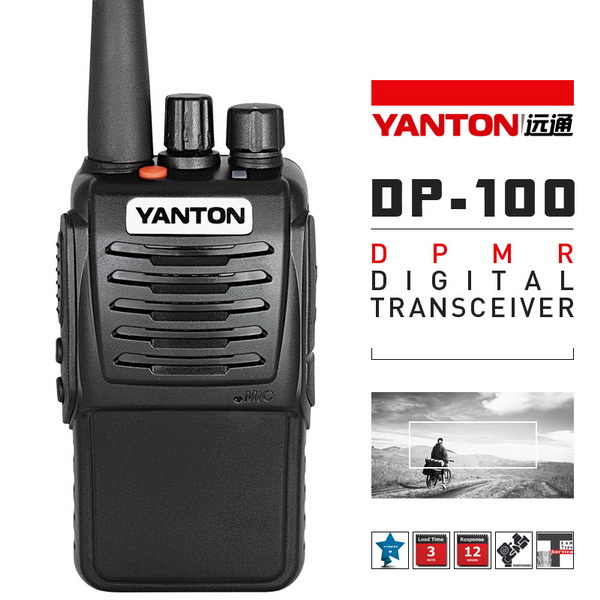

DPMR radio with IP67 waterproof (YANTON DP-100)
Main features

Channel spacing 6.25Khz(Digital),wide/narrow band(12.5Khz/25Khz) switchable(analog)
Single call, selective call and group call
Low voltage alarm
Remote Kill , Stun, Activate & Revive
In the digital mode, Adopt new power technology and power save function, longer battery working time
Side-key setting
Priority scan
FEC technology, make voice clear
Voice encryption
IP67 waterproof
Time out timer (TOT)
1500MAH battery

Specification

General
Model	DP-100	DP-100
Frequency range	VHF	UHF
	136-174MHz	400-470MHz
Number of channels	16
Channel spacing	12.5/25KHz(analog);6.25KHz(digital)
Working voltage	7.4V DC±20%
Capacity of battery	1500Mah(Li-ion battery)
Antenna impedance	50Ω
Operating temperature	-20°C~+60°C
Frequency stability	±2.5PPM
Size	1135432mm
Weight (without battery)	220g
Package	Box(machines and accessories)

Transmit
RF output power	VHF 5W(High);1W(low) UHF 5W(high);1W(low)
4FSK digital modulation	4K00F1E
Maximum deviation	≤±5.0KHz(width)≤± 2.5KHz(narrow)
Spurious emission	≤65dB
Modulation distortion	≤5%(300-3000Hz)
FM noise	≤-45dB(width) ≤-40dB(narrow)

Receiver
Sensitivity (12dB SIND)	0.2μV
Squelch selective	0.15μV
Adjacent channel selectivity	≥65dB (width)
Inter-modulation	≥65dB
Spurious rejection	≥60dB
Image rejection	≥65dB
FM noise	≤-45dB(width)
Modulation	16KOF3E
Operating bandwidth	≤±7KHz
Audio output power	0.5w@4Ohms
Audio distortion	≤5%
Digital protocol	DPMR

Quanzhou YANTON Electronics Co., Ltd. Has been a professional two way radio manufacturer integrating in R&D, Production, sales and service for Seven years. Our company has created and owned its famous brands such as YANTON and LSENG.

Our company has introduced advanced equipments in the world such as American HP8921, Germany Rohde & Schwarz SMC-50. We own standard production workshop, product laboratory and R&D room. We offer the cost effective products, and help our customers win the competitive advantage in the price and quality in the market.

Our company has 10 people of QC staff, 15 people of R&D staff, and 5 people of IQC staff. They have more than 5 years of work experience. We focus on new product innovation and quality control, and we invest 40% of profit in new product development. We have got a lot of OEM/ODM orders because of product innovation and efficiency.

We strictly implement ISO9001 quality management system, and we strictly check from raw material purchase, production and finished product testing, which can ensure high stability and consistency of products. Our products has been awarded "radio transmitting equipment and model approval", and also has got FCC, CE, SIRIM Certification. We have agents in many city and has exported to Malaysia, Vietnam, Middle East, Europe, USA and other countries. We have obtained high reputation from our users, distributors, agents for our good products and good sale service.

Let us work together to create a better tomorrow!
