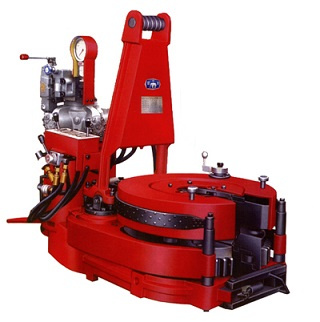

Drill Pipe Hydraulic Power Tong

Drill Pipe Hydraulic Power Tong
Supplier: Jiangsu Xinxiang Share Co., Ltd
Price: Negotiable/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB
contact supplier

Product Specifications

Markets: Eastern Europe,Southeast Asia,Mid East
Enter Attribute Here (e.g.: Size): Enter Value Here (e.g.: 12 Inches)

Product Description

1. ZQ drill pipe power tong is an ideal wellhead tool for oil drilling, widely applied in making up and breaking out for well drilling and repairing on offshore and land.

2. Open-throat design of the ZQ-series with high mobillity allows escaping from drilling pipe freely.

3. The tong is combined of spinning tong and torque tong.

4. It substitutes cathead, suspension tong and spinning rope in making-up and breaking-out.

5. The tongs are designed and manufactured according to API Spec 7K "specification for drilling equipment".


Technical Specifications
ModelZQ203-125ZQ203-100ZQ203-100AZQ203-100BZQ162-50ZQ127-25
size rangemm127~203121~203121~203121~20385~16265~127
in3 1/2 coupling~8body3 1/2 coupling~8body3 1/2 coupling~8body3 1/2 coupling~8body3 1/2 coupling~8body3 1/2 coupling~8body
Max. torquekN.m1251001001005025
ft.lbf922007375073750727503688018440
the speed of
tong head Hi.		rpm404040406065
the speed of
tong head Lo.		rpm2.72.72.72.74.110.5
Hydraulic system
pressure rating		Mpa2016.616.616.61612
psi290024002400240023201740
hydraulic system
flow rating		L/min114114114114120180
gpm303030303248
stroke of shifting
cylinder		mm150015001500-10001000
in595959-39.439.4
moving distance
 of tong		mm---0~1500--
in ---0~59--
lifting distance
of tong		mm--0~4850~800--
in--0~190~31.5--
overall dimenstionmm1720×1050×17501700×1000×14001700×1000×14001750×1650×20501570×800×11901110×790×820
in68×41×6967×39×5567×39×5569×65×8162×31×4744×31×32
weightkg26002400250032501500620
lb573052905510





Jiangsu Xinxiang Share Co., Ltd as the professional Company of R&D, manufacturing and sales of oil drilling equipment, is the network outstanding member of wellhead mechanical parts of petroChina and Sinopec, is the member of China petroleum and Petrochemical Equipment Industry Association, the top fifty enterprise of Chinese petroleum and petrochemical equipment manufacturing industry, has the use right of American Petroleum Institute standard of API7K, 8C and passed ISO9001: 2008 quality system, with a large number of petroleum and petrochemical industry famous brand products.
