1. Shotcreting for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.
2. Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
3. Refractory spraying and repair for industrial kilns or kilns' inner liner.
Features:
1. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
2. Thin follow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
3. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
4. Particularly used for dry, damp mix and steel (polymer) fibre reinforced shotcrete.
5. Three drive models: By Electric motor, air motor or diesel engine.
Application:
|

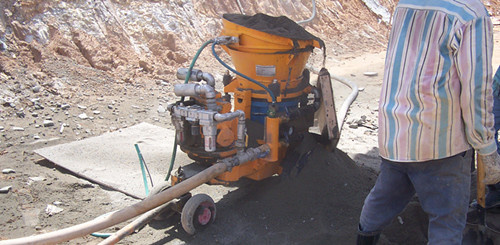

RISEN PZ-3 shotcrete machine with Electric motor |
|
Output Capacity: |
3 cubic meter/hour |
|
Maximum Conveying Distance: |
200 m(660 ft) |
|
Desired Shotcrete Ingredient Ratio: |
Cement/sand and gravel < 0.35 |
|
Maximum Aggregate Size: |
10 mm(2/5" ) |
|
Inner Diameter of Conveying Hose: |
51 mm(2" ) or 42mm (1 5 /8" ) |
|
Working Compressed Air Pressure: |
29 ~ 87 psi (0.2 ~ 0.6 MPa) |
|
Conveying Air Consumption: |
175 ~ 210 cfm (5 ~ 6 cubic meter / min) |
|
Ideal Rotor Speed: |
14 rpm |
|
E-Motor Power: |
3kW (4.1 hp) |
|
Dimensions: |
1130 x 450 x 1020 mm |
|
Net Weight: |
430 Kg |
Risen Machinery Co., Ltd. is a Chinese company specialized in the design, production and sale of sprayed concrete/gunite/shotcrete machine, grouting pumps, hose pump, artificial soil spraying seeder, etc. Its products range includes the machines both for dry and wet sprayed concrete applications and series hose pumps, piston pump for grouting mortar under high pressure, etc.
A few of employees have been working in designing and selling above machines for about twenty years, and they can provide their customers/clients with sincerely, friendly, timely technical consultation, technical support and after-sale service.
Riesen is a leader of concrete spraying/shotcrete/gunite machines, grouting pumps and hose pumps in China.
