Dry-Type Power Transformer (SC)

Name: Dry-Type Power Transformer (SC)
Brand: china-manufacturer-directory.com
SKU: 726331515
Availability: InStock
Rating: 4.8 (102 reviews)

Supplier:	Andeli Group Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	SC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Separated Winding Transformer
Application:	Instrument

Product Description

Why choose us?

1. 20 years - Andeli Group Co.,Ltd is founded in 1993.
2. 12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3. 300 cooperating companies - We have over 300 cooperating companies.
4. 3000 workers - We have over 3000 workers.
5. USD150,000,000 - The total assets is USD150,000,000.
6. 235,000 square meters - The area of Andeli is 235,000 square meters.
7. Certification - We have passed ISO9001:2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...

Production introduction

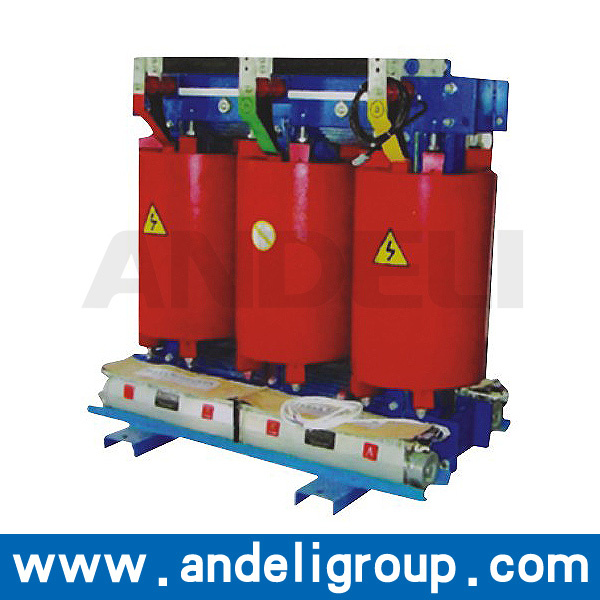

The dry-type transformers are casted with epoxyresin,which are made of high quality materials by means of a strict process with advanced production and testing devices.The product features high reliability and long service life.In accordance with different operation environment,it can be equipped with different protection casings or without casing.It can replace the oil-immersed transformer and be used in the high buildings,business centers,airports,tunnels,chemical plants,nuclear power stations and watercrafts ect.

Normal service conditions
1)Altitude should not be over 1000m:indoor type
2)Highest ambient temperature should not over:+40oC;Highest daily average should not over temperature:+30oC
3)Highest annual average temperature should not over +20oC,lowest temperature should not below -5oC.We can provide transformer operated in special conditions according to user's requirement.

Applicable standards
GB6450-1986 Dry-type power transformer
GB4208-1993 Casing protection grade(IP code)
GB/T10228-1997 Technical parameters and requirements for dry-type power transformer
Performance characteristics

1.The product is safe,fire-proof,pollution free,and can be used in the load center directly.
2.High mechanical strength,strong shour-circuit proof capacity,small partial discharge,excellent thermal stability,high reliability,and long service life.
3.Low loss,low noise,energy saving and maintenance free.
4.Excellent heat dissipation,great overload capacity and a large operating capacity is available when ONAF is applied.
5.Good humidity resistance,it's suitable for operating in the highly humid and harsh environment.
6.An intelligent signal and temperature control system is adopted,which can automatically monitor and display all working temperature of the three-phase windings.The blowing fan can give an alarm,switch on and off automatically and conduct tripping operation to protect the transformer.
7.Dur to the structure is compact and weight is light,it can save space and decrease the cost of installation.

Notes for placing orders

Transformer type:rated capacity kVA
Number of phases:three-phase single-phase
High voltage: KV/Low voltage:KV
Frequency:50HZ 60HZ
Tapping range:±4×2.5% ±3×2.5% other
Connection group:Yyn0 Dyn11 other
Impedance voltage:4% 6% other
Cooling method: ONAN ONAF
Protecting grade of outer casing:IP00 IP20 IP30 other

Method of incoming and outgoing line:
1.Incoming line to lower part and outgoing line from upper part
2.Incoming line to upper part and outgoing line form upper part
3.Incoming line to upper part and outgoing line form side part
4.other
*If customer has no requirement,the color of outer casing is light grey(the standard color of ANDELI),or you sould indicate color code that you want

About us

Rated capacity(KVA)	Voltage combination(KV)			Connecting groupid	No-load lossess(W)	Load-loss(W)(120 o C)	Load-loss(W)(75 o C)	Short circuit impedance(%)	No-load current(%)	Yawp grade(Db)	IP00(no crust)					IP20(IP23)				High voltage connection end(mm)	Low voltage connectionend(mm)
Rated capacity(KVA)	High voltage(KV)	Tapping(%)	Low voltage(KV)	Connecting groupid	No-load lossess(W)	Load-loss(W)(120 o C)	Load-loss(W)(75 o C)	Short circuit impedance(%)	No-load current(%)	Yawp grade(Db)	Length(mm)	Width(mm)	Height(mm)	Gauge(mm)	Gross weight(kg)	Length(mm)	Width(mm)	Height(mm)	Gross weight(kg)	High voltage connection end(mm)	Low voltage connectionend(mm)
30	6 6.3 10	±5 ±2×2.5	0.4	Yyn0 or Dyn11	210	745	650	4.0	2.8	45	670	500	700	400	280	1100	1000	1200	380	M10	30×3
50					300	1050	915		2.5	45	720	500	770	400	400	1200	1000	1200	510	M10	30×3
80					410	1460	1275		2.4	46	760	500	950	400	500	1200	1000	1200	650	M10	30×3
100					450	1665	1455		2.2	46	980	600	1060	500	580	1300	1100	1400	820	M10	30×3
125					530	1950	1700		2	47	1030	650	1100	500	660	1300	1100	1400	880	M10	30×3
160					610	2250	1965		2	48	1050	650	1130	550	720	1500	1100	1400	940	M10	(a)40×4
200					700	2670	2330		1.8	48	1100	650	1150	550	920	1500	1100	1600	1120	M10	(a)40×4
250					810	2920	2550		1.8	49	1150	760	1200	660	1100	1500	1250	1600	1310	M10	(a)40×6
315					990	3670	3205		1.6	49	1210	760	1250	660	1250	1500	1250	1600	1460	M10	(a)40×6
400					1100	4220	3685		1.6	50	1270	760	1420	660	1600	1700	1250	1800	1850	M10	(b)60×6
500					1300	5170	4515		1.6	51	1320	760	1500	660	1850	1700	1250	1800	2100	M10	(b)60×6
630					1500	6220	5430		1.5	52	1360	760	1520	660	2200	1700	1250	1800	2450	M10	(c)80×8
630					1460	6310	5510	6	1.5	52	1430	760	1360	660	2100	1700	1250	1800	2350	M10	(c)80×8
800					1710	7360	6425		1.5	53	1470	1000	1460	820	2300	1900	1500	1800	3000	M10	(c)80×8
1000					1990	8600	7510		1.3	54	1540	1000	1560	820	2800	1900	1500	1800	3100	M10	(d)100×10
1250					2350	10260	8955		1.3	55	1610	1000	1620	820	3200	1900	1500	2000	3510	M10	(d)100×10
1600					2750	12420	10840		1.3	56	1710	1250	1700	1070	3800	2100	1800	2000	4150	M10	(d)120×10
2000					3735	15300	13355		1.1	56	1830	1250	1930	1070	4800	2100	1800	2200	5180	M16	(e)120×12
2500					4500	18180	15870		1.1	57	1850	1250	1970	1070	5400	2100	1800	2300	5800	M16	(e)120×15

Main technical parameters of SC(B)10-30~2500/10 series of transformers

Rated capacity(KVA)	Voltage combination(KV)			Connecting groupid	No-load lossess(W)	Load-loss(W)(120 o C)	Load-loss(W)(75 o C)	Short circuit impedance(%)	No-load current(%	Yawp grade(Db)	IP00(no crust)					IP20(IP23)				High voltage connection end(mm)	Low voltage connection end(mm)
Rated capacity(KVA)	High voltage(KV)	Tapping(%)	Low voltage(KV)	Connecting groupid	No-load lossess(W)	Load-loss(W)(120 o C)	Load-loss(W)(75 o C)	Short circuit impedance(%)	No-load current(%	Yawp grade(Db)	Length(mm)	Width(mm)	Height(mm)	Gauge(mm)	Gross weight(kg)	Length(mm)	Width(mm)	Height(mm)	Gross weight(kg)	High voltage connection end(mm)	Low voltage connection end(mm)
30	6 6.3 10	±5 ±2×2.5	0.4	Yyn0 or Dyn11	190	700	610	0.4	2.6	44	670	500	700	400	280	1100	1000	1200	380	M10	30×3
50					270	990	865		2.2	44	720	500	770	400	400	1200	1000	1200	510	M10	30×3
80					360	1380	1205		2.0	45	760	500	950	400	500	1200	1000	1200	650	M10	30×3
100					400	1570	1370		2.0	45	980	600	1060	500	580	1300	1100	1400	820	M10	(a)30×3
125					480	1840	1605		1.8	46	1030	650	1100	500	660	1300	1100	1400	880	M10	(a)30×3
160					540	2130	1860		1.8	47	1050	650	1130	550	720	1500	1100	1400	940	M10	(a)40×4
200					620	2530	2210		1.6	47	1100	650	1150	550	920	1500	1100	1600	1120	M10	(a)40×4
250					720	2750	2400		1.6	48	1150	760	1200	660	1100	1500	1250	1600	1310	M10	(a)40×6
315					880	3470	3030		1.4	48	1210	760	1250	660	1250	1500	1250	1600	1460	M10	(a)40×6
400					970	3990	3485		1.4	49	1270	760	1420	660	1600	1700	1250	1800	1850	M10	(b)60×6
500					1160	4880	4260		1.4	50	1320	760	1500	660	1820	1700	1250	1800	2100	M10	(b)60×6
630					1340	5870	5125		1.3	51	1360	760	1520	660	2200	1700	1250	1800	2450	M10	(c)80×8
630					1290	5960	5200	6	1.3	51	1430	760	1360	660	2100	1700	1250	1800	2350	M10	(c)80×8
800					1520	6950	6070		1.3	52	1470	1000	1460	820	2300	1900	1500	1800	3000	M10	(c)80×8
1000					1760	8130	7095		1.1	53	1540	1000	1560	820	2800	1900	1500	1800	3100	M10	(d)100×10
1250					2080	9690	8460		1.1	54	1610	1000	1620	820	3200	1900	1500	2000	3510	M10	(d)100×10
1600					2440	11730	10240		1.1	55	1710	1250	1700	1070	3800	2100	1800	2000	4150	M10	(d)120×10
2000					3320	14450	12615		1.0	55	1830	1250	1930	1070	4800	2100	1800	2200	5180	M16	(e)120×12
2500					4000	17170	14990		1.0	56	1850	1250	1970	1070	5400	2100	1800	2300	5800	M16	(e)120×15

Established in 1993, ANDELI Group Co., Ltd. is a specialized manufacturer of low voltage electrical equipment. ANDELI Group owns 12 share-holding companies in Shanghai, Hunan, Zhejiang, UAE and over 300 member enterprises. "ANDELI" trademark is identified as one of the Chinese well-known trademarks. ANDELI Group ranks among top 500 in electric industry in China and our products are granted the title of the national products exempt from inspection.

With a workshop covering more than 27, 000 square meters, we are able to supply various circuit breaker, MCB, MCCB, RCCB, contactors, relays, fuse, transformer, voltage stabilizer, switching power supply, meters, solar products, welder and other electric products.

Moreover, with over 60 series and more than 2, 000 specifications, the annual output volume has reached USD24, 000, 000 in 2013. ANDELI regards quality of products as life. Our company is certified with ISO9001 and we have obtained CCC (China Compulsory Certification), RoHS, CCEE, CE, CB, SIMKO and KEMA certificates.

Through outstanding performance and excellent reputation, ANDELI has won many national awards and been recognized as one of the distinguished brand name in its local market. In the future, ANDELI will continue ensuring that our products meet the expectation of our customers with respect to product quality, and pursuing advance to integrative value of enterprise and sustainable growth.

Providing quality products, excellent service, competitive price and prompt delivery, we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
