Dry Type Power Transformer
Product Specifications
| Prod Model: |
SG, SGB |
| Markets: |
North America,South America,Africa,Oceania,Mid East |
| Application: |
Power |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Certification: |
Product Test Qualification |
| Brand: |
Zhenda |
Product Description

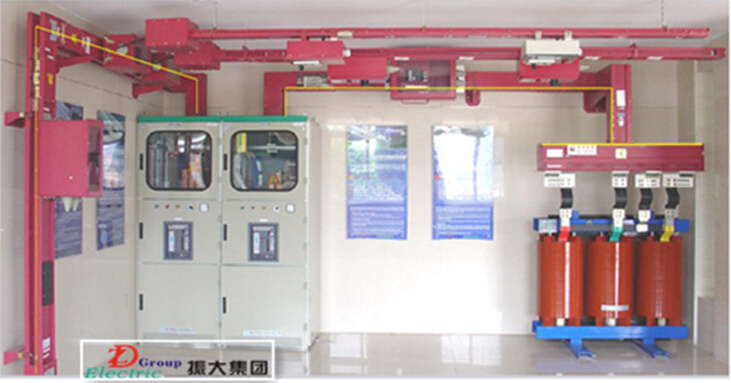

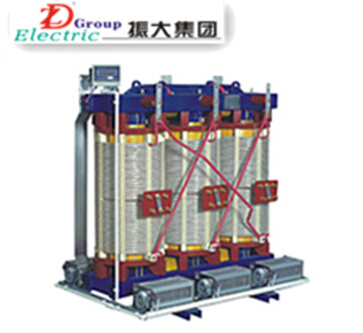

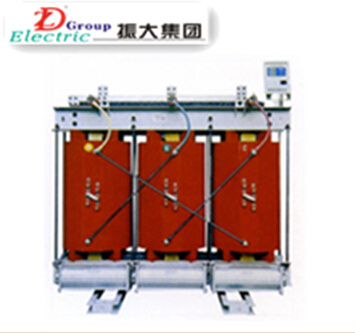

SG10 type transformer adopt the latest structure, material, advanced technique, good heat dissipation conditions, long thermal life, stronger over-load ability, can be running safely and reliability in 120% overload condition for long time.
Standard:
Meet GB6450-1986 Dry type power transformer1.2, can be revised according relative international principles, or as per customers' special request.
| Model | Voltage combination | Connection Group | no-load loss(w) | on-load loss(w)145ºC | no-load loss(w)75ºC | no load current(%) | sound level(Lpa)dB | Short-circuit impedance (%) | Weight (kg) |
| HV(KV) | Tapping range | HV(KV) |
| SG10-100-10 | | ±5% or ±2×2.5% | 0.4 | Yyn0 or Dyn11 | 400 | 1880 | 1530 | 0.8 | 40 | 4 | 630 |
| SG10-160-10 | | 540 | 2550 | 2080 | 0.8 | 42 | 600 |
| SG10-200-10 | | 620 | 2530 | 2530 | 0.8 | 42 | 970 |
| SG10-250-10 | 3 | 720 | 2940 | 3940 | 0.7 | 44 | 1140 |
| SG10-315-10 | 5.5 | 880 | 3750 | 3750 | 0.7 | 46 | 1310 |
| SG10-400-10 | 6 | 970 | 4400 | 4400 | 0.6 | 46 | 1610 |
| SG10-500-10 | 6.3 | 1160 | 5380 | 5380 | 0.6 | 47 | 1850 |
| SG10-630-10 | 6.6 | 1290 | 6440 | 6440 | 0.6 | 47 | 6 | 2060 |
| SG10-800-10 | 10 | 1520 | 7750 | 7750 | 0.5 | 48 | 2410 |
| SG10-1000-10 | 10.5 | 1760 | 9300 | 9300 | 0.5 | 48 | 2910 |
| SG10-1250-10 | 11 | 2080 | 10190 | 10190 | 0.5 | 49 | 3330 |
| SG10-1600-10 | | 2440 | 11340 | 11340 | 0.5 | 50 | 4070 |
| SG10-2000-10 | | 3320 | 14270 | 14270 | 0.4 | 50 | 4780 |
| SG10-2500-10 | | 4000 | 16550 | 16550 | 0.4 | 51 | 5840 |
