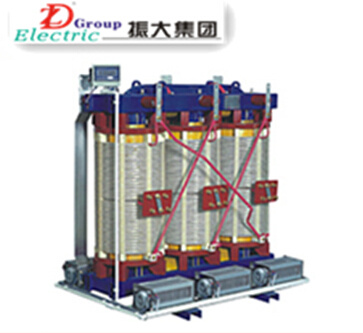

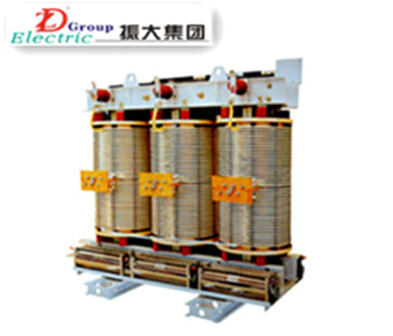

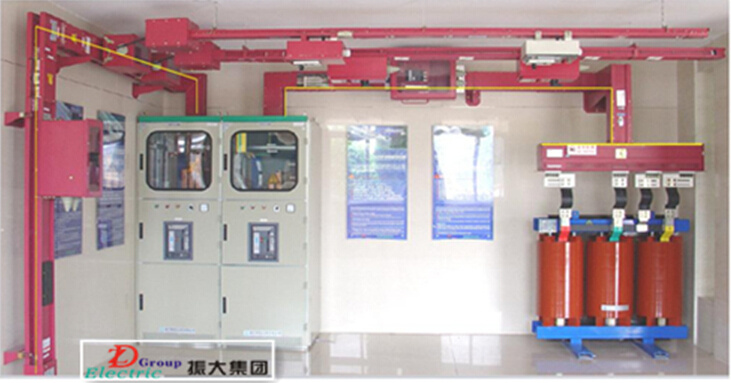

Sgb11-R H Class No-Encapsulated-Coil Dry-Type Power Transformer
Product Specifications
| Prod Model: |
SGB |
| Markets: |
Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
| Application: |
Power |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Brand: |
Zhenda |
Product Description
H class no-encapsulated-winding dry-type power transformers with compound cross section designed by both shanghai EK Group and Shenyang transformer research institute get breakthrough magnetic-circuit structure and entire layout of traditional protection. Reach international advanced level. Meanwhile, it seizes the visual advantages on the aspect of energy saving and environmental protection. This product shows balance of three-phase no-load current, less no-load current that are a 40%and a 80% decline respectively compared with national standard, besides, it is featured with smaller volume, lighter weight and lower noise, therefore, this product is more and more popular with customers. It is used extensively in the locations where require fireproof and explosion-proof functions, such as high-rise building, shopping center, airport, underground, station, port, petrol, chemistry engineering, unclear power station, unclear submarine, residential area, light rail, power plant and so on.
Specification& capacity
(KVA) | No-load loss(W) | Load loss
(145ºC) | No-load current(%) | Noise(LPA)db | Impedance voltage (%) | External dimension(L*W*H) |
| GB | ES | GB | ES | GB | ES | GB | ES |
| 50 | 360 | 230 | 1490 | 1040 | 2.8 | 0.2 | 55 | 45 | 4 | 1120*700*1050 |
| 80 | 460 | 300 | 2150 | 1500 | 2.6 | 0.2 | 55 | 45 | 4 | 1120*700*1050 |
| 100 | 510 | 330 | 2550 | 1530 | 2.4 | 0.4 | 55 | 45 | 4 | 1120*700*1050 |
| 125 | 600 | 390 | 3050 | 1830 | 2.2 | 0.4 | 56 | 45 | 4 | 1130*700*1135 |
| 160 | 700 | 450 | 3650 | 2190 | 2.2 | 0.4 | 58 | 45 | 4 | 1150*700*1145 |
| 200 | 820 | 500 | 4680 | 2808 | 21.0 | 0.3 | 58 | 46 | 4 | 1170*800*1160 |
| 250 | 950 | 600 | 5500 | 3300 | 2.0 | 0.3 | 58 | 46 | 4 | 1195*800*1220 |
| 315 | 1100 | 700 | 6600 | 3960 | 1.8 | 0.3 | 60 | 46 | 4 | 1220*800*1260 |
| 400 | 1300 | 780 | 7800 | 4680 | 1.8 | 0.3 | 60 | 46 | 4 | 1260*900*1350 |
| 500 | 1500 | 920 | 9350 | 5610 | 1.8 | 0.3 | 62 | 46 | 4 | 1295*900*1455 |
| 630 | 1750 | 1010 | 10900 | 6540 | 1.6 | 0.3 | 62 | 48 | 4 | 1451*1000*1340 |
| 630 | 1680 | 1050 | 11500 | 6900 | 1.6 | 0.3 | 62 | 48 | 6 | 1415*1000*1340 |
| 800 | 2120 | 1270 | 13600 | 8160 | 1.6 | 0.2 | 64 | 48 | 6 | 1475*1000*1355 |
| 1000 | 2480 | 1485 | 15700 | 9420 | 1.4 | 0.2 | 64 | 49 | 6 | 1525*1000*1490 |
| 1250 | 2980 | 1785 | 18400 | 11040 | 1.4 | 0.2 | 65 | 49 | 6 | 1580*1100*1510 |
| 1600 | 3420 | 2050 | 21300 | 12780 | 1.4 | 0.2 | 66 | 49 | 6 | 1660*1250*1570 |
| 2000 | 4150 | 2490 | 25000 | 15000 | 1.2 | 0.2 | 66 | 50 | 6 | 1730*1250*1715 |
| 2500 | 5000 | 3000 | 29100 | 17460 | 1.2 | 0.2 | 67 | 50 | 6 | 1825*1250*1760 |
