Dry Type Transformer

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Two-winding Transformer
Application:	Electronic

Product Description

Specifications

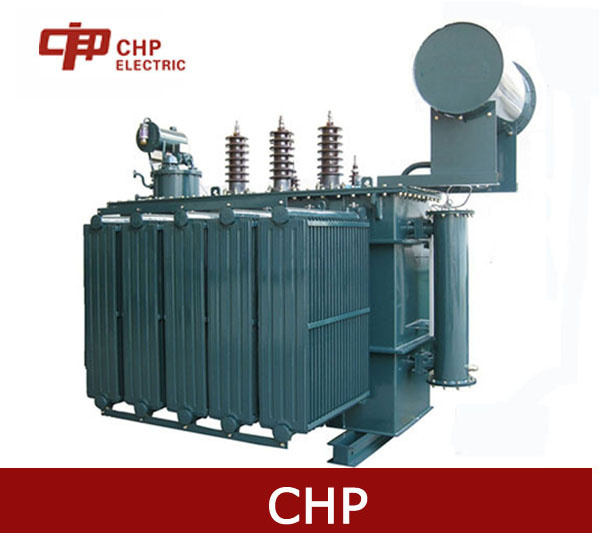

1, 35kV, S11, 3 phase oil immersion power transformer
2, high efficiency, low loss
3, Low losses and Low Noise
Describtation of the product:
The three-phase oil-immersed distributing transformer applies new type insulating structure and makes short-circuit resistances strong. The iron core is made of high-quality cold-rolled silicon-steel plate. High-voltage winding group is made up of high-quality oxygen-free copper lines and it adopts multilayered drum type structure. All fasteners have been processed with special treatment to prevent them from losening.
Standards
GB 1094.1-1996 GB 1094.2-1996 JB/T 10088-2004
GB 1094.3-2003 GB 1094.5-2003 GB/T10237-1988
GB/T 6451-1999 GB/T 7595-1987 JB/T 3837-1998

Technical data:
1) Rated Power: 30~2500kVA
2)Rated HV: 6KV, 6.3KV, 10KV, 10.5KV, 11KV, 15KV, 20KV, 22KV, 33KV 35KV, 36KV
3)Rated LV: 0.4kV, 0.415KV, 0.38KV
4)Phase No.: Single or three;
5)Rated frequency: 50Hzor 60 Hz;
6)Vector group: Dyn11, Yyn0 or others;
7)Short circuit impedance: 4%, 4.5%, 6% or others in accordance to client needs;
8)Tapping voltage regulation type: Off-load or on-load;
9)Tapping range: +/-2*2.5% / 5%or others in according to client needs;
10)Cooling type: Oil nature, oil cooling
