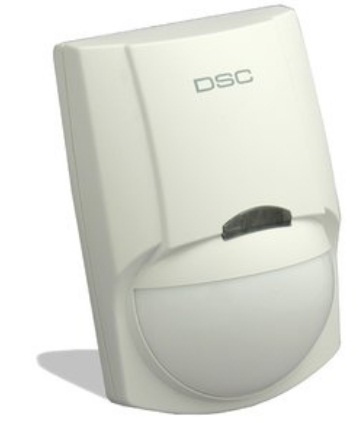

DSC Pet Immunity Digital Infrared Detector, PIR Sensor, Infrared Sensor (LC-100PI)

Product Specifications

Prod Model:	LC-100PI
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pet Immunity:	25kg
Shipment:	DHL,UPS, FedEx..
Service:	OEM&ODM
Delivery:	Fast
Type:	Sensor
Installation Mode:	Contact Type
Certification:	CE
Application:	Special Equipment
Usage:	Personal

Product Description

The LC-100-PI (Form A contact) and LC-120-PI (Form C contact) detectors is motion sensor, nfrared Detector, PIR sensor, infrared sensor
Feature intelligent signal analysis for reliable detection, pet immunity up to 55 lbs (25 kg) and a slim design that complements any decor.
Form "A" or "C" alarm contact and tamper switch
Digital signal analysis
Pet immunity up to 55 lbs (25 kg)
Quad Linear Imaging Technology for sharp analysis of body dimensions and differentiation from backgrounds and pets
Advanced ASIC-based electronics
Compact design for residential installations
Adjustable variable pulse count
PIR sensitivity adjustment
Height installation calibration free
Available in packages of 6 (LC-100-PI-6PK / LC-120-PI-6PK)
Available in U. S. Only
LC-100 - 6 PK Form 'A' LC-120 - 6 PK Form 'C'
Approval Listings: European CE Directives (EMC), FCC/IC, UL/ULC

specification:
Name:	DSC Pet Immunity Digital Infrared Detector for alarm system  (LC-100PI)
Model:	LC-100-PI
Detector type:	Quad(Four element) PIR
Power input	8.2 to 16Vdc
Current Draw	Active:10mA(±5%)
Temp Compensation	Yes
Alarm period	2 sec(±0.5sec)
Alarm outputs	LC-100-PI-From A-NC                                  28Vdc 0.1A with 10Ohm series protection resistors
Tamper switch	N.C 28Vdc 0.1A with 10Ohm series protection resistors open when cover is removed
Warm up period	60sec(±5sec)
LED indicator	LED is ON during ALARM
RF Immunity	10V/m plus 80%AM from 80MHz to 1GHz
Static Immunity	8kV contact,15kV air
Transient Immunity	2.4kV@1.2joules
Operation Temp	-10° C-+50° C(14° F-122° F)
Dimensions	92mm*62.5mm*40mm
Weight	61gr.(2.15oz.)
