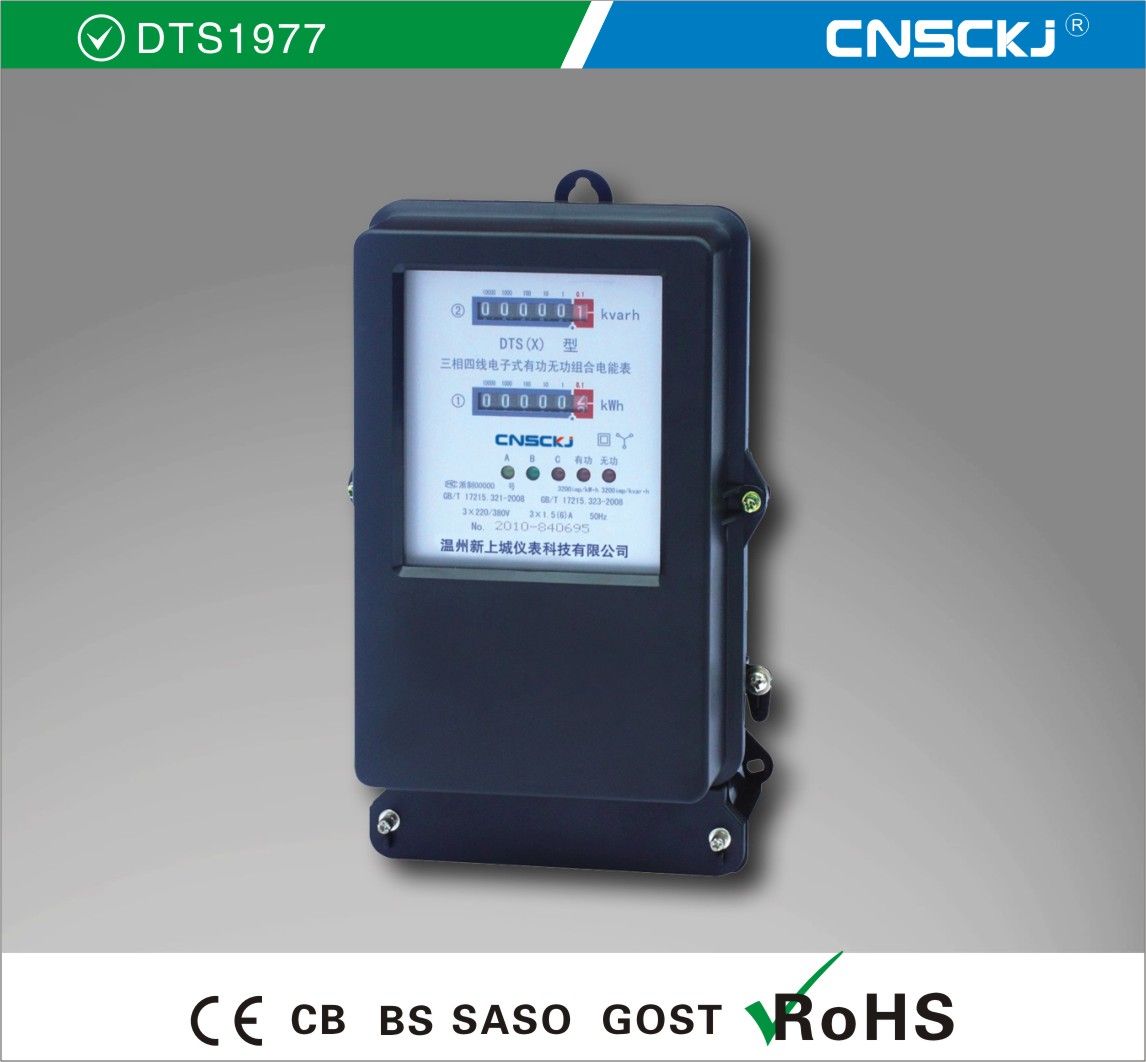

DTS(X),DSS(X)1977 Type Electronic three-Phase active and reactive composite watt-hour meter
PURPOSE AND APPLICABLE SCOPE
DTS ( X ),DSS ( X )1977 type three-phase three wire / three-phase four-wire electronic active and reactive composlte watt -hour meter is adopted to three-phase double direction power electric energy measurement special IC/SMT manufacture technology , it can measure rated fequency 50Hz of three-phase active and reactive electric energy lts performance is inconformity with " GB/T 17215.321-2008 " , " GB/T 17215.323-2008 " .
The ambient temperature is-30 ºC~55 ºC ,the relative humidity is not over 85%.
FUNCTION AND FEATURE
1.0 class three-phase three-wire / three-phase four-wire active electric energy measurement .
2.0 class three-phase three-wire / three-phase four-wtre reactive electric energy measurement-Active ,reactive power pulse output independently.
Active ,reactive electric energy has two machines registers.
90° sine reactive electric energy measurement , to guarantee that the accuracy of measurement of reactivee electric energy when unbalance load.
Active ,reactive electric energy double direction measurement.
H igh accuracy ,high reliability ,low power consumption.
The wide working temperature range.
Need not to calibrate for Iong-term working.
SPECIFICATION AND MAIN TECHNICAL DATA
| Type | Name | Accuracy Class | Specification |
|
| Active | Reactive |
| DSS(X)1977 | Three-phase
Three-wire | 1.0 | 2.0 | 3×100V
3×380V | 1.5(6)A
3(6)A |
| DTS(X)1977 | Three-phase
Three-wire | Active1.0
Reactive2.0 |
| 3×57.7/100V
3×220/380V | 1.5(6)A
3(6)A
5(20)A
10(40)A
15(60)A
20(60)A
20(80)A
30(100)A |
Start: under the conditlon of rated voltage ,rated frequency and power fector equaling 1, when load current is 0.4% rated current, electric energy pulse output indication light lighting continuallly , the watt-hour meter has efectric energy pulse output .
Potential movement : when exerting 115 % rated voltage,current electric circuitbreaking, inthe testing time, it does not produce more than one pulse for the meter oftestingoutput.
Rated power : 50Hz.
Power consumption : voltage circuit ≤2W and 10VA current circuit≤1VA
Ambient condition : standard working humidjty-20 ºC-45 ºC .
Limit working temperature -30ºC~55ºC relative humidity≤85%
Power source voltage : normal working voltage : 0.9Un-1.1Un
Limit working voltage : 08Un-1.15Un
Weight : about 2KG
Outer dimension : 248.5mm×148mm×76.5mm
WORK ELEMENT
Tested three-phase voltage and current through each sampling circult change from the suitable H.L inputtothree-phase power /electric energy measurement special lC, output isin proportion to the three-phase active power , from the pulse message to the register , to realize three-phase active electric energy measurement ;tested three-phase voltage and current through each sampling circuit change from the suitable H.L output to 90°sine electronic movement phase network importing three-phase power elelectric energy measurement special IC , output is in proportion to tested three-phase reactive power , from H.L to register , to realize three-phase reactive electric energy measurement The watt-hour meter output pulse wldth is 80ms±20ms of electric energy testing pulse.
