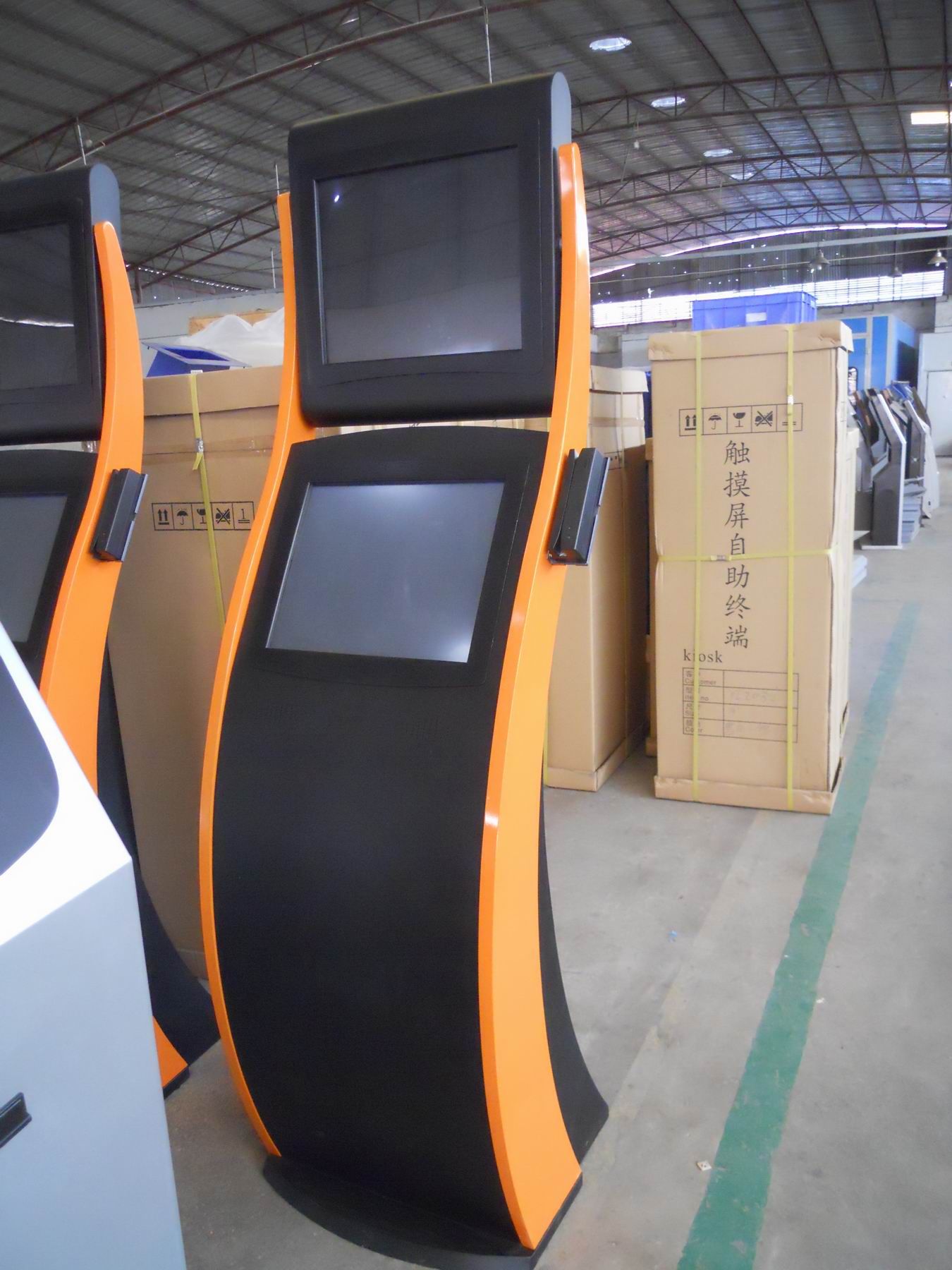

Product Specifications
| Prod Model: |
YL3008DD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Use: |
Dual Screen Kiosk |
| Material: |
Cold Rolled Steel |
| Touch Panel: |
Maplettouch 5wire Resistive or Saw |
| The Surface: |
Color Optional |
| Size: |
15", 17", 19" |
| Body Of Cabinet: |
Can Customize |
Product Description
Touch panel: Mapletouch 5-wire resistive touch screen
Circuiting Rating: 5V DC, 35mA Surface Hardness: 3H
Light Transmission: Film+Glass>83% Hitting Life Expectancy: Over 35 million
Scoring Life Expectancy: Over 5 million
Contact Bounce: < 10ms Operating Temperature: -10 oC~+60 oC
Resolution: 4096x4096 Storage Temperature: -20 oC ~ +70 oC
Linearity: 1.5%(< 1.0% By Request) Thickness: 3.0mm
Operating Force: 10g~100g
Monitor: Dual LCD
Display Area: TFT LCD17.1"(19")
Resolution: 1280*1024
Contrast Radio: 500: 1
Colour Resolution: 16.2M
Brightness: 300CD/m2
DC Adapter: DC12V\5A
Kiosk:
Material: Cold rolled steel ST12 SPCC
Thickness: 1.5mm
Work environment: Temperature: +5~ +35degree; Humidity: 40% ~ 80%
Network function: Four-core telephone or RJ45 network tie-in ( Standard of RJ45)
The surface: Color optional
Basic electrical equipment with cables and power adapter for monitor and sound system
Two speakers
PC:
@ 1 G DDR2
@ Core 2 Duo 2.2GHz
@ Intel Chipset motherboard
@ 250G HDD Seagate
The style of cabinet and color and PC all can customize.
Guangzhou yulian electronic technology Co., Ltd. is the mainly professional manufacturer in producing mapletouch POS terminals, industrial control systems and multifunction inquiry touch kiosks in China. We have been an innovative and creative force in the development and manufacturing of high quality, high performance systems since 2000. Now our products have obtained the certificates of ISO9001: 2000, CE, FCC, CCC, CB, ROSH and widely applied to many fields.
