Duns Hengye Zoelite Air Filter 3A 4A 5A Molecular Sieve for Drying
Product Specifications
| Prod Model: |
3A 4A 5A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Random Packing |
| Usage: |
Chemical Industry Product |
| Source: |
Particle |
| Material: |
Molecular Sieve |
| Structure Feature: |
Granule |
| Effect: |
Purify Air |
| Packing: |
Steel Barrel |
Product Description

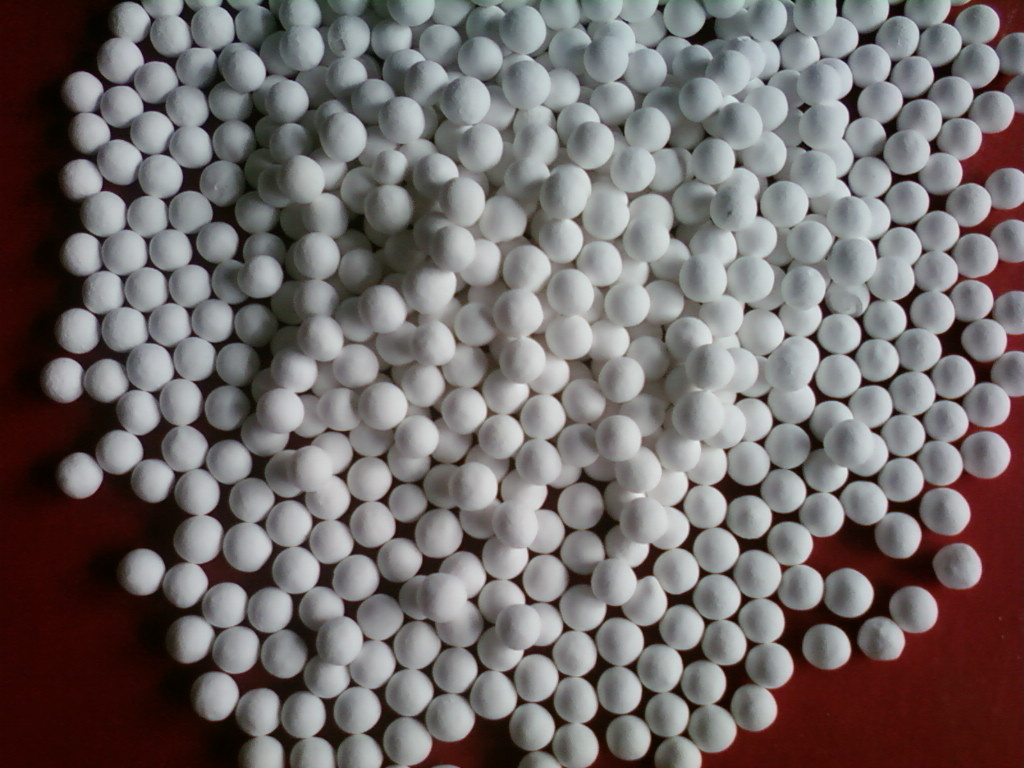

Duns Hengye zoelite air filter 3A 4A 5A Molecular Sieve for drying
Molecular sieve can be divided into A type and X type according to the crystal structure of zeolites. According to the pore size of the crystal, there is a more detailed classification.
3A
A main component of A-type molecular sieve is aluminosilicate, silicon-oxy and alumina tetrahedron to form a LTA-type structure, the main crystal structure is eight membered rings.
In molecular sieve 3A, potassium ion exchange of sodium ion, the formation with a pore opening of 3Å (1Å=1×10-10m), that is type 3A (also known as KA-type) molecular sieve.
4A
A main component of A-type molecular sieve is aluminosilicate, silicon-oxy and alumina tetrahedron to form a LTA-type structure, the main crystal structure is eight membered rings.
In molecular sieve 4A, sodium ion formation with a pore opening of 4Å (1Å=1×10-10m), that is type 4A (also known as NaA-type) molecular sieve.
5A
Category Description :
Molecular sieve HYD05C is a synthetic zeolite of A-type crystal structure in calcium-sodium form with a pore opening of 5 angstroms (0.5 nm).
Application:
Removal of water, carbon dioxide, and hydrocarbons from feed gas in air pre-purification units;
PSA separation for Iso/normal paraffin (n-C4n-C6 mixtures);
Purification of air, oxygen, nitrogen, hydrogen and synthesis gases from mixed gas streams;
Dehydration and purification of LPG (Liquefied Petroleum Gas), ammonia cracked gas and other industrial gases or liquids;
Dehydration and purification of inert gas.

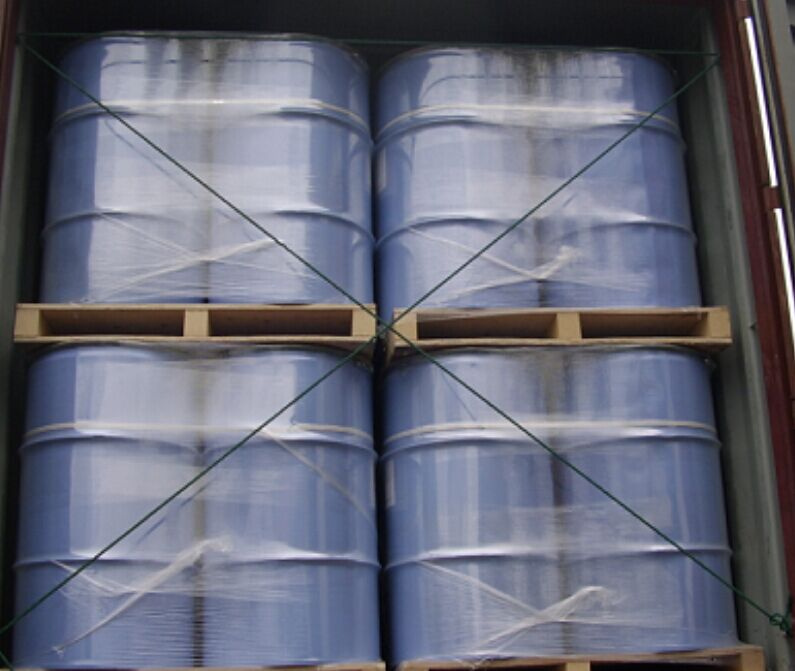

Standard Packaging:
Pellets: 125 Kg/Iron Drum
Beads: 150 Kg/Iron Drum
Attention:
·The product as desiccant cannot be exposed in the open air and should be stored in dry condition with air-proof package.
·The product should be regenerated after a certain period of adsorption. The appropriate regenerated temperature would be better below 350ºC.
Shanghai Shisheng Machinery Manufacturing Co., Ltd was founded in 1993. We have more than 20 experienced technicians to design, manufacture, and maintain compressors, and we supplied compressors to a wide range of industrial applications at home and abroad, which is petro-chemical, oil, communication, medicine, food, plastics, army, and power station.
We manufacture a comprehensive compressors up to 35MPa, we supply medium pressure air compressor, high pressure air compressor, air cooling screw compressor, water cooling screw compressor, booster compressor, high precision filter, dryer etc, we can supply a completely system to supply clean and stable air source for your applications
Shanghai Shisheng Machinery Manufacturing Co., Ltd was founded in 1993. We have more than 20 experienced technicians to design, manufacture, and maintain compressors, and we supplied compressors to a wide range of industrial applications at home and abroad, which is petro-chemical, oil, communication, medicine, food, plastics, army, and power station.
We manufacture a comprehensive compressors up to 35MPa, we supply medium pressure air compressor, high pressure air compressor, air cooling screw compressor, water cooling screw compressor, booster compressor, high precision filter, dryer etc, we can supply a completely system to supply clean and stable air source for your applications
Shanghai Shisheng Machinery Manufacturing Co., Ltd was founded in 1993. We have more than 20 experienced technicians to design, manufacture, and maintain compressors, and we supplied compressors to a wide range of industrial applications at home and abroad, which is petro-chemical, oil, communication, medicine, food, plastics, army, and power station.
We manufacture a comprehensive compressors up to 35MPa, we supply medium pressure air compressor, high pressure air compressor, air cooling screw compressor, water cooling screw compressor, booster compressor, high precision filter, dryer etc, we can supply a completely system to supply clean and stable air source for your applications
