Product Specifications
| Prod Model: |
TPS-DV series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

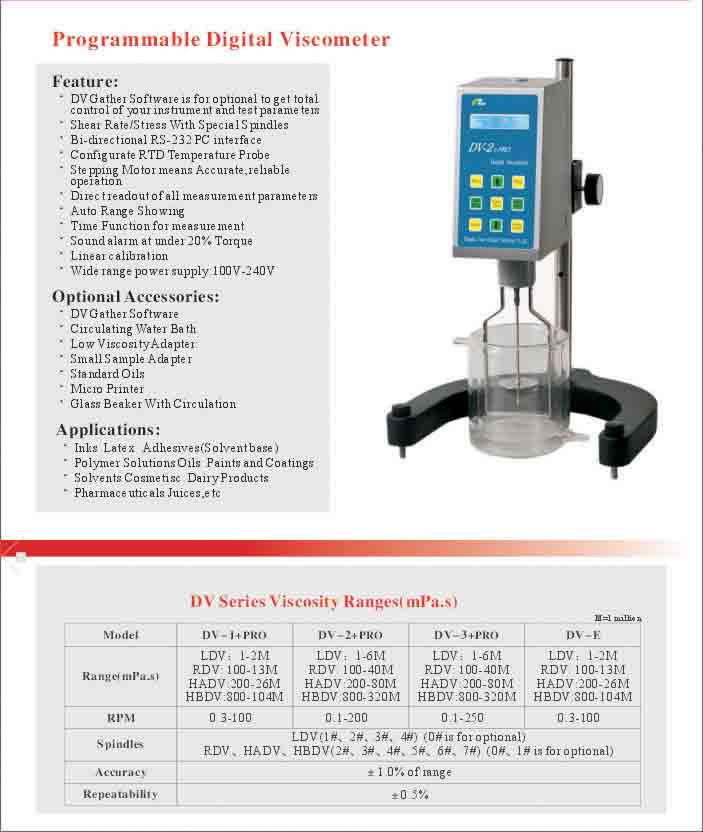

FEATURES
Direct readout of all measurement parameters on an illuminated Liquid Crystal Display.
Data on screen:
Speed selected: R. P. M.
Spindle selected: S. P.
Viscosity reading: CP (mPa-s)
Percentage of full scale: %
Sample temperature: ° C
Shear rate (with special spindles): SR
Shear stress (with special spindles): SS
Determination of relative viscosity and absolute viscosity
Different menu options
AUTO TEST of the equipment by scanning at different speeds, with audible and visual warning if it is not
Operating properly.
Temperature determinated by PT100 probe
Viscosity reading: Dynamic viscosity (cP or mPa-s)
Datalogger function of the obtained results when an experiment is performed. The equipment is supplied with
Windows software which can dump the data obtained to a file in Excel format (. Xls) for subsequent processing.
Determination of shear rate and shear stress with coaxial spindles.
The viscometer and the PT100 can be calibrated by the user.
Auto range function to determine the maximum viscosity with each spindle/speed combination.
It can work with a micro printer or window software...
Ultra-sensitive front keyboard that allows easy input of all parameters.
"ERROR" message in the screen with sound alarm when the viscosity of the test material exceeds the full scale of
The selected combination (SP/r. P. M. )
Sound alarm if the equipment is working at under 10% of selected full scale.
The viscometer is equipped with many speeds, from 0.1 to 800 r. P. M. The user can select another different speed
Into this margin.
Safety protection against sudden rises in the power supply.
English language options.
SPECIFICATIONS
Accuracy ± 1% of the full scale.
Resolution
Using LCP (Low Viscosity Adapter): 0.01
When viscosity is lower than 10, 000 cP: 0.1
When viscosity is equal or higher than 10, 000 cP: 1
Repeatability 0.2%
Temperature ranges from 0.0 ° C to + 100.0° C
Resolution 0.1 ° C
Accuracy ± 0.1° C
Type of probe PT 100
Outputs RS232, micro printer.
Power All models are supplied with 85/265 VAC
Net weight 4 kg.
